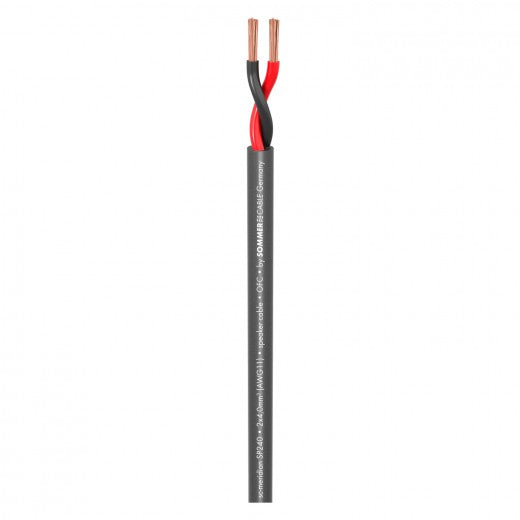

Sommer Cable - Meridian SP240 - Dark Grey

$17.99
SKU 440-0056
***Price Is Per Meter***

Where brute force reigns in a useful manner...

the sound people are at work and they will treat the cables not exactly squeamishly.
No problem for our robust Meridian Mobile SP240. This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu litz wires ensure better sound quality and a longer life. All PVC versions are easy to reel.

Advantages:

  • flexible and easy to rollable for cable reel
  • Small in diameter
  • Very durable due to the use of special coating mixtures
  • Affordable price

Application:

  • PA sound systems of all kinds
  • For ELA technology
  • Cabling of HiFi systems

Specifications:

Article number 440-0056
Name Meridian Mobile SP240
EAN 4049371002219
Properties Analog
Properties OFC oxygen free copper
Application area Mobile outdoor / indoor
Application area Stage / live
Application area ELA 100 V
Application area Studio / Broadcast
Application Speaker Cable
Colour grey
Colour detailed dark grey
Construction (2LIY4,0mm??)Y
Jacket material PVC
Jacket ?? [mm] 9,50
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 4,00
Inner conductor ?? (audio) [mm] 2,76
AWG (audio) 11
Copper strands (audio) 56
Copper strand ?? (audio) [mm] 0,30
Conductor insulation ?? [mm] 4,20
Weight per 1 m [g] 150
Fire load per m [kWh] 0,46
Style variant round
Packing 500 m spool
Packing 100 m spool
Temperature min. [??C] -30
Temperature max. [??C] 70
Width [mm] 9,5
Height [mm] 9,5
Capac. cond./cond. per 1 m (audio) [pF] 125
Capacity wire/wire at 1 ft. (audio) [pF] 38,1
Insulation resist. per 1 km [G??] 0,005
Insulation resist. per 1000 feet [G??] 0,0015
Insulation resist. per 1 km (audio) [G??] 0,005
Insulation resist. per 1000 feet (audio) [G??] 0,0015
Conductor resistance per 1 km [??] 4,5
Conductor resistance per 1000 ft. [??] 1,3716
BPVo-Euroclass Fca
