Sommer Cable - Monocat 110C - CAT.7 & Power

$23.99

Cable abuse without punishment...

This combi line contains one CAT-cable in combination with a power cable. The SC-MONOCAT POWER Series is equally suitable for permanent installations and mobile applications.

Advantages:

  • LAN signal transmission incl. mains supply in one cable
  • LAN cable also usable as an additional control line

Application:

  • Mobile applications

Specifications:

Article number 500-0151-1
Name SC-Monocat 110C
EAN 4049371050975
Properties Digital 110 Ω AES / EBU
Properties OFC oxygen free copper
Properties Analog
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application hybrid cable
Colour black
Colour detailed black

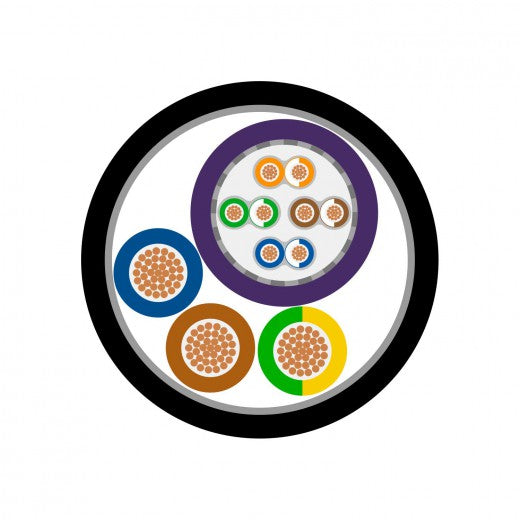

Construction [(3LIY3x2,5mm²)Y+1x(4x(2LI2Yx0,14mm²))(ST)CY]Y
Construction (power) [(3LIY3x2,5mm²)Y
Construction (network) 1x(4x(2LI2Yx0,14mm²))(ST)CY]Y
Jacket material PVC
Jacket Ø [mm] 13,80
Inner conductor (power) 3
Inner conductor (network) 8
Inner conductor (power) [mm²] 2,50
Inner conductor (network) [mm²] 0,14
Shielding (network) AL / PT-foil + Copper braiding tin-plated
Shielding factor [%] 100
Copper strands (network) 7
Copper strand Ø (network) [mm] 0,16
Conductor insulation material Foam / Skin-PE
Weight per 1 m [g] 254
UV-resistant yes
Fire load per m [kWh] 0,77
Style variant round
Packing bulk stock
CAT-Type CAT.7
Max. section length [m] 100
Temperature min. [°C] -20
Temperature max. [°C] 70
Width [mm] 13,8
Height [mm] 13,8
Capacity wire/wire at 1m (network) [pF] 44
Capacity wire/wire at 1 ft. (network) [pF] 13,4112
Impedance (network) [Ω] 100
Insulation resist. per 1km (power) [GΩ] 5
Insulation resist. per 1000 feet (power) [GΩ] 1,524
Test voltage [V] 2000
Nominal voltage (power) [V] 300
Operating voltage (power) [V] 300
BPVo-Euroclass Fca
