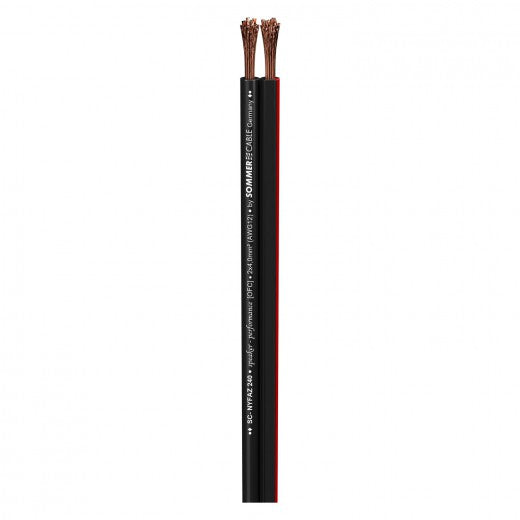

Sommer Cable - Nyfaz 4.0mm

Currently Out Of Stock
$16.99
SKU 420-0400-SW
***Price Is Per Meter***

RAZZMATAZZ - NYFAZ...

SC-Nyfaz??cables are primarily used for interior wiring of all types of electrical appliances. They are often used in audio components such as loudspeakers, effects units, in wireless technology, gambling machines, for fast wiring of prototypes and new developments etc., wherever flexibility is less important, but a low price matters.
We deliver a durable and reliable quality with oxygen-free copper (99.96 %).

Advantages:

  • Unflashy colouring
  • Good & reasonably priced
  • Easy handling
  • ???Memory???-effect, easy to install

Application:

  • Development and fast wiring of prototypes
  • Fixed installation in dry and closed buildings
  • Interior wiring in electrical devices

Specifications:

Article number 420-0400-SW
Name SC-Nyfaz
EAN 4049371002950
Properties Analog
Application area Installation
Application area ELA 100 V
Application Installation cable
Colour black
Colour detailed black
Construction 2LIY4,00mm??
Jacket material PVC
Jacket ?? [mm] 0,00
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 4,00
Inner conductor ?? (audio) [mm] 2,26
AWG (audio) 11
Copper strands (audio) 226
Copper strand ?? (audio) [mm] 0,15
Weight per 1 m [g] 101
UV-resistant yes
Style variant twin
Packing 500 m spool
Packing 100 m spool
Temperature min. [??C] -20
Temperature max. [??C] 70
Width [mm] 10,2
Height [mm] 4,4
Capac. cond./cond. per 1 m (audio) [pF] 160
Capacity wire/wire at 1 ft. (audio) [pF] 48,768
Insulation resist. per 1 km [G??] 0,02
Insulation resist. per 1000 feet [G??] 0,0061
Insulation resist. per 1 km (audio) [G??] 0,02
Insulation resist. per 1000 feet (audio) [G??] 0,0061
BPVo-Euroclass Fca
