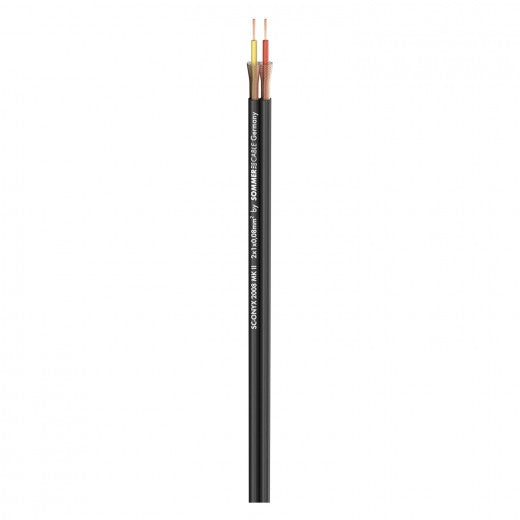

Sommer Cable - Onyx 2008 - Instrument & Signal Cable

$3.19

The twin cable...

is similar in design and quality to the TRICONE MKII, but a little thinner due to the twin construction. It is well-suited for manufacturing hifi cables, adapters and for permanent installation. And it fits nearly all jack and RCA connectors. The SC-Onyx 2008 can be spliced at the centre of the cable. Each wire has its own helical copper mesh screen plus a thick jacket. The insulation is marked in white and yellow. The SC-Onyx 2008 is very small in diameter which makes it ideal for fitting mini jack connectors.

Advantages:

  • Very flexible because of its fine single litz design
  • Each conductor is insulated and individually shielded with a helical copper
    mesh screen
  • Cables may be separated easily by hand
  • Small jacket diameter, ensuring easy handling with RCA and jack connectors

Application:

  • Cabling of unbalanced devices (keyboards)
  • Connection lead for hifi components
  • Assembly of Y-adapter cable
  • Assembly of insert cable

Specifications:

Article number 320-0061
Name SC-Onyx 2008
EAN 4049371004695
Properties OFC oxygen free copper
Properties Analog
Application area Installation
Application area Studio / Broadcast
Application Patch & Instrument Cable
Colour black
Colour detailed black
Signal transmission asymmetrical
Construction LI2YDY2x0,08mm²
Jacket material PVC
Number of Channels (audio) 2
Inner conductor (audio) 1
Inner conductor (audio) [mm²] 0,08
Inner conductor Ø (audio) [mm] 0,32
AWG (audio) 28
Shielding Copper spiral shielding
Shielding factor [%] 90
Copper strands (audio) 10
Copper strand Ø (audio) [mm] 0,10
Conductor insulation material PE-HD
Weight per 1 m [g] 26
UV-resistant yes
Fire load per m [kWh] 0,2
Style variant twin
Packing 100 m spool
Temperature min. [°C] -20
Temperature max. [°C] 70
Width [mm] 5,9
Height [mm] 2,6
Capac. cond./shield. per 1 m (audio) [pF] 120
Capacity wire/electic screen at 1 ft. (audio) [pF] 36,576
Insulation resist. per 1 km [GΩ] 1
Insulation resist. per 1000 feet [GΩ] 0,3048
Insulation resist. per 1 km (audio) [GΩ] 1
Insulation resist. per 1000 feet (audio) [GΩ] 0,3048
Conductor resistance per 1 km [Ω] 220
Conductor resistance per 1000 ft. [Ω] 67,056
BPVo-Euroclass Fca
