Sommer Cable - Silcoflex 1.5mm - Power Cable

$10.99

A thick coat...

Protects the internal construction from external influences. Here a temperature resistant (-60 °C ...+180 °C) silicon jacket protects the wires against short-circuits, especially during continuous use with high temperature differences. The non-dripping insulation is made of a silicon rubber and is resistant to oil, alcohol, fat as well as diluted acids, alkalids, oxygen, and ozone. The silicon jacket is very flexible and allows bending radii down to 15 mm (0.59 in.). The fine Cu wires are tin-plated and built according to VDE0295, class 5.

Advantages:

  • High temperature resistance due to silicone jacket and insulation
  • Excellent protection against short circuiting under extreme weather conditions
  • High flexibility down to a bending radius of 15 mm

Application:

  • Load and lighting technology for outdoor applications
  • Hot environment around machines, foundries, mills etc.
  • Also suitable for cold outdoor areas down to –60 °

Specifications:

Article number 700-0401-0315
Name SC-Silcoflex
EAN 4049371002561
Application area Installation
Application area Mobile outdoor / indoor
Application area Stage / live
Application Silicone cable
Colour black
Colour detailed black

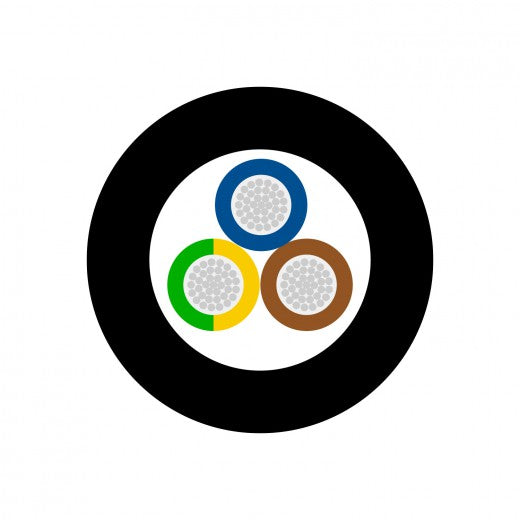

Construction SIHF-J 3x1,5mm²
Jacket material Silicon
Jacket Ø [mm] 8,00
Number of Channels (power) 1
Inner conductor (power) 3
Inner conductor (power) [mm²] 1,50
Inner conductor Ø (power) [mm] 1,38
AWG (power) 15
Conductor insulation material Silicone rubber
Weight per 1 m [g] 108
UV-resistant yes
Style variant round
Packing 100 m spool
Temperature min. [°C] -60
Temperature max. [°C] 180
Width [mm] 8
Height [mm] 8
Test voltage [V] 2000
Nominal voltage (power) [V] 500
BPVo-Euroclass Fca
