Sommer Cable - Spirit

$6.59

Like a lasso...

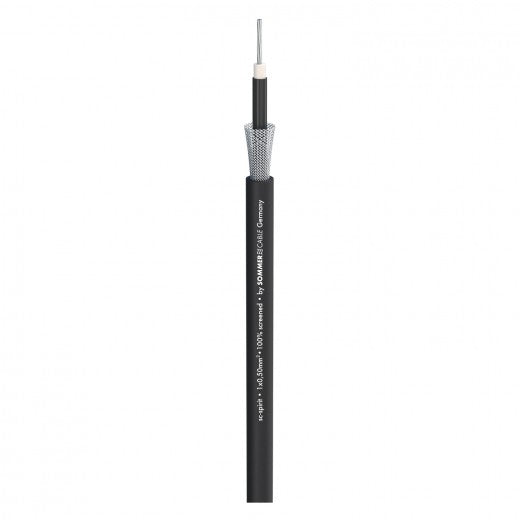

By the guitarists tossing the cables around. That's why this of all cables must be particularly tread resistant and have an elaborate construction. At first musicians tend to spend big money until they finally have to realize exasperatedly that the newly purchased low-cost cable may at best be used as an average short-wave receiver or even brings the overall sound image of the high-priced instrument to crumble. We have refrained from cheapo products and offer a top-quality cable at a fair price. The SC-Spirit has a thick insulation between wire and screen. This improves the capacitive values and ensures a loss-free reproduction of the highs even with longer cables. To avoid crackling and hum interferences, we use a special conductive carbon screen and a braided Cu shield. Please make sure when soldering that the carbon screen does not make any contact with the inner conductor. Your audience will be amazed at the sound of this cable!

Advantages:

  • Incredibly punchy and clear sound with bass, guitar and keyboard due to our
    special litz stranding and a wire cross-section of 0,50 mm²
  • Dual shielding by a combination of a copper mesh screen plus conductive
    carbon screen
  • Low-loss transmission due to low capacitance
  • Very flexible and easy to reel because of its fine single litz design
  • Extremely durable and sturdy due to a special high-quality PVC jacket compound
  • Strain relief and good sleeve support due to thick PVC jacket

Application:

  • High-quality guitar cable for studio and stage
  • Unbalanced cable for keyboards, samplers, mixing desks etc.
  • Connection lead for CD/DVD player/recorder

Specifications:

Article number 300-0051
Name SC-Spirit
EAN 4049371002097
Properties OFC oxygen free copper
Properties Analog
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application Instrument Cable
Colour black
Colour detailed black
Signal transmission asymmetrical
Construction LI2Y(LS)CY 1x0,50mm²
Jacket material PVC
Jacket Ø [mm] 7,00
Number of Channels (audio) 1
Inner conductor (audio) 1
Inner conductor (audio) [mm²] 0,50
Inner conductor Ø (audio) [mm] 0,80
AWG (audio) 20
Shielding Copper spiral tin-plated + semiconductor
Shielding factor [%] 100
Copper strands (audio) 19
Copper strand Ø (audio) [mm] 0,18
Conductor insulation material Foam / Skin-PE
Conductor insulation Ø [mm] 3,10
Weight per 1 m [g] 66
UV-resistant yes
Fire load per m [kWh] 0,26
Style variant round
Packing 100 m spool
Temperature min. [°C] -30
Temperature max. [°C] 70
Width [mm] 7
Height [mm] 7
Capac. cond./shield. per 1 m (audio) [pF] 78
Capacity wire/electic screen at 1 ft. (audio) [pF] 23,7744
Insulation resist. per 1 km [GΩ] 1
Insulation resist. per 1000 feet [GΩ] 0,3048
Insulation resist. per 1 km (audio) [GΩ] 1
Insulation resist. per 1000 feet (audio) [GΩ] 0,3048
Conductor resistance per 1 km [Ω] 39
Conductor resistance per 1000 ft. [Ω] 11,8872
BPVo-Euroclass Fca
