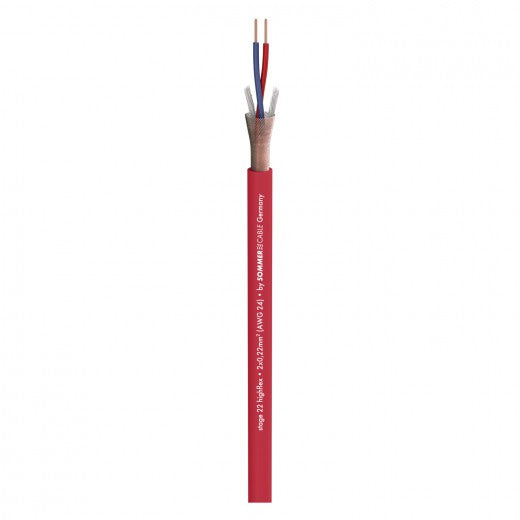

Sommer Cable - Stage 22 Highflex - Red

$4.99
SKU 200-0003
***Price Is Per Meter***

One thick coat...

Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single litz wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won't have to accept any trade-offs.

Advantages:

  • High transmission quality due to the usw of fine stranding
  • Very rugged owing to the thick, soft PVC jacket
  • Good shielding due to dence helical copper mesh screen
  • High flexibility makes it easy to reel
  • Affordable price

Application:

  • Stage application
  • Home recording

Specifications:

Article number 200-0003
Name Stage 22 Highflex
EAN 4049371001861
Properties OFC oxygen free copper
Properties Analog
Application area Installation
Application area Mobile outdoor / indoor
Application area Stage / live
Application Microphone Cable
Colour red
Colour detailed red
Signal transmission symmetrical
Construction (2LI2Y0,22mm??)DY
Jacket material PVC
Jacket ?? [mm] 6,40
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 0,22
Inner conductor ?? (audio) [mm] 0,53
AWG (audio) 24
Shielding Copper spiral shielding with 0.10 mm indiv. strands
Shielding factor [%] 99
Copper strands (audio) 28
Copper strand ?? (audio) [mm] 0,10
Weight per 1 m [g] 44
Fire load per m [kWh] 0,22
Style variant round
Packing 100 m spool
Packing 500 m spool
Temperature min. [??C] -20
Temperature max. [??C] 70
Width [mm] 6,4
Height [mm] 6,4
Capac. cond./cond. per 1 m (audio) [pF] 68
Capacity wire/wire at 1 ft. (audio) [pF] 20,7264
Capac. cond./shield. per 1 m (audio) [pF] 130
Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624
Impedance [??] 100
Insulation resist. per 1 km [G??] 1
Insulation resist. per 1000 feet [G??] 0,3048
Insulation resist. per 1 km (audio) [G??] 1
Insulation resist. per 1000 feet (audio) [G??] 0,3048
Conductor resistance per 1 km [??] 87
Conductor resistance per 1000 ft. [??] 26,5176
Shield. resistance per 1 km [??] 30
Shield. resistance per 1000 ft. [??] 9,144
BPVo-Euroclass Fca
