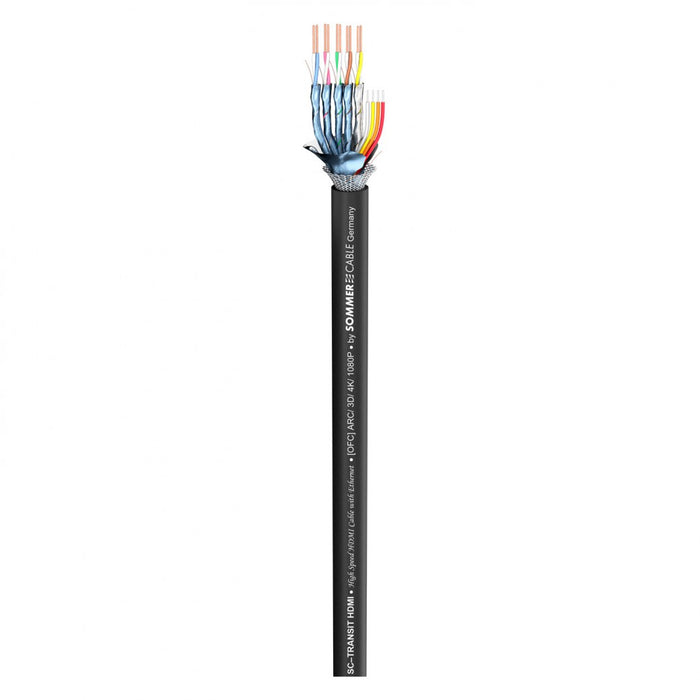

Sommer Cable - Transit HDMI

$29.99

One for everything...

The Transit high speed HDMI with Ethernet is definitely a top-quality HDMI cable for the transmission of digital video and sound data, especially for the professional media engineering and entertainment electronics sector. Combined with our HICON HDMI connector HI-HD-M, it can transmit (given a professional processing) the 4 times Full-HD resolution (3840 x 2160 pixels @ 30 Hz; 4096 x 2160 pixels @ 40 Hz) plus ethernet and audio return channel signals. It is suitable for “3D videos“ and 4K transmissions and is downward compatible with all previous HDMI versions. Depending on the hardware or the interface quality, even greater transmission distances of up to 25 m (82 ft.) are achievable due to the large cross-section. The cable has a sloid triple shielding against external interference.

Advantages:

  • 1080p image resolution (Full HD), 2K, 4K
  • Large cross-section for increased transmission distances
  • Solid triple shielding against external interference
  • Current standard, downward compatible with previous standards

Application:

  • Digital transmission of audio and video data using the latest HDMI standard
  • Professional media technology and home entertainment
  • Laying in cable conduits

Specifications:

Article number 612-0251
Name Transit high speed HDMI with Ethernet
EAN 4049371003568
Properties Digital 110 Ω
Properties OFC oxygen free copper
Properties HDTV
Application area Studio / Broadcast
Application area Installation
Application HDMI-cable
Colour black
Colour detailed black
Construction [(5(2LI2YS0,50mm))+(1(2LI2Y0,14mm²))+(LIY2x0,14mm²)](ST)CY
Jacket material PVC
Jacket Ø [mm] 9,60
Number of Channels (video) 1
Inner conductor (video) 10
Inner conductor (network) 4
Inner conductor (network) [mm²] 0,14
Inner conductor Ø (video) [mm] 0,50
AWG (video) 24
Shielding cross braiding tin-plated + AL/PT-foil + drain wire
Shielding factor [%] 100
Copper strand Ø (video) [mm] 0,50
Conductor insulation material Foam / Skin-PE / PE
Conductor insulation Ø [mm] 1,40
Weight per 1 m [g] 107
UV-resistant yes
Style variant round
Packing bulk stock
Velocity factor 0,73
Temperature min. [°C] 0
Temperature max. [°C] 80
Width [mm] 9,6
Height [mm] 9,6
Capacity wire/wire at 1m (video) [pF] 90
Capacity wire/wire at 1 ft. (video) [pF] 27,432
Damping at 50 MHz (100m & 20° C) [dB] 2,8
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 0,8534
Damping at 100 MHz (100m & 20° C) [dB] 3,9
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,1887
Damping at 200 MHz (100m & 20° C) [dB] 5,9
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,7983
Damping at 470 MHz (100m & 20° C) [dB] 8,1
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 2,4689
Damping at 862 MHz (100m & 20° C) [dB] 12,3
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 3,749
Damping at 1000 MHz (100m & 20° C) [dB] 13,7
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,1758
Impedance [Ω] 100
Insulation resist. per 1 km [GΩ] 10
Insulation resist. per 1000 feet [GΩ] 3,048
Insulation resist. per 1 km (video) [GΩ] 10
Insulation resist. per 1000 feet (video) [GΩ] 3,048
Conductor resistance per 1 km [Ω] 90
Conductor resistance per 1000 ft. [Ω] 27,432
BPVo-Euroclass Fca
