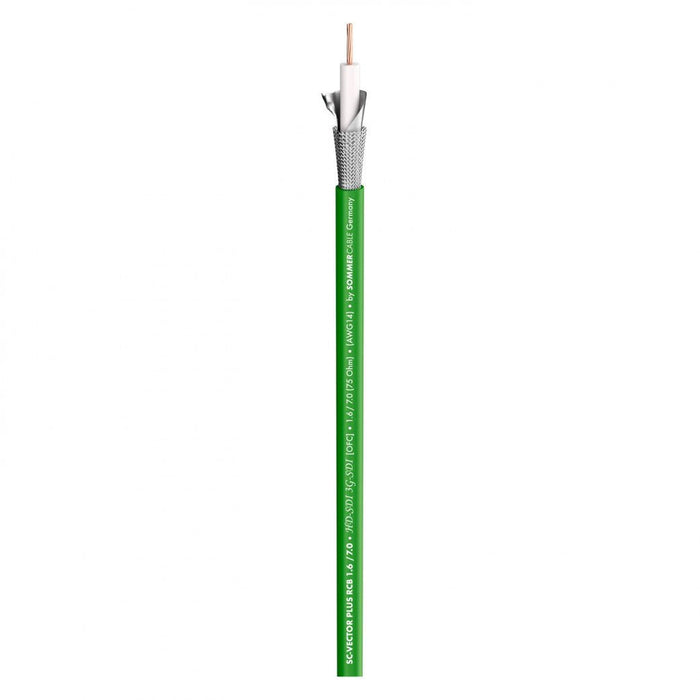

Sommer Cable - Vector Plus

Sommer Cable - Vector Plus

by Sommer Cable
$9.99
SKU 600-0174

***Price Is Per Meter***

Suitable for Neutrik -? ? NBNC75BWU13
?

All the way to the horizon...

and then some more. This is the transmission range of the? SC-Vector Plus 1.2/5.0, because with its special dimensions and construction it has been designed for long distance HD-SDI applications. Even as an analogue cable it is already pretty amazing: you can transmit video signals over distances of up to 1000 m and as an SDI cable it can be used for distances of up to 600 m. The? SC-Vector Plus 1.2/5.0? has an excellent shielding 100 % made of a tinned copper mesh plus AL/PT foil. The cable is very flexible and also suitable for mobile use on a cable reel. It is available in a single coax or a 5 x coax version with a PVC and FRNC jacket (according to test type C, IEC60332.3c). With HD-SDI the transmission range depends on the bitrate used (compressed or uncompressed). At 1.485 Gb/s (uncompressed) the damping value is drawn on at half the bitrate (720 MHz). The achievable cable length at a damping value <30 dB is considered as a relevant parameter.

Advantages:

  • Superb damping values for long distances of up to 1000 m
  • Robust and durable outer jacket, reelable

Application:

  • Digital HD/SDI long distance transmission
  • Cabling for sporting events and big TV events; OB van technology

Specifications:

Article number 600-0174
Name SC-Vector Plus
EAN 4049371001403
Properties OFC oxygen free copper
Properties Analog
Properties SDI
Properties Digital 75 ??
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application area ELA 100 V
Application video cable
Colour green
Colour detailed green
Construction 1x02YS(ST)CH1,2/5,0
Jacket material PVC
Jacket ?? [mm] 6,95
Number of Channels (video) 1
Inner conductor (video) 1
Inner conductor (video) [mm??] 0,88
Inner conductor ?? (video) [mm] 1,20
AWG (video) 18

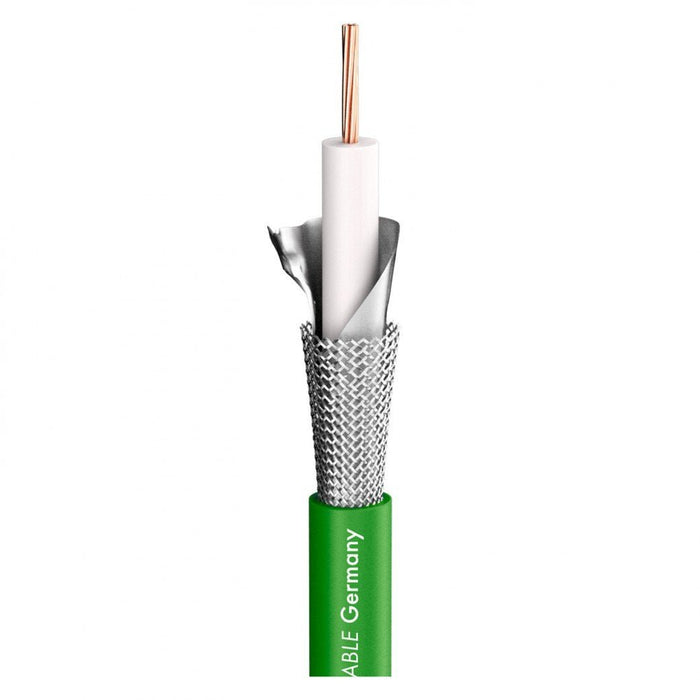

Shielding AL / PT-foil + copper braiding 80 % tin-plated
Shielding factor [%] 100
Copper strands (video) 7
Copper strand ?? (video) [mm] 0,40
Conductor insulation material Foam / Skin-PE
Conductor insulation ?? [mm] 5,00
Weight per 1 m [g] 55
Fire load per m [kWh] 0,2
Style variant round
Packing bulk stock
Velocity factor 0,8
Temperature min. [??C] -10
Temperature max. [??C] 80
Max. Transmission length (3G-SDI) [m] 200
Max. Transmission length (6G-SDI) [m] 80
Width [mm] 7
Height [mm] 7
Capacity wire/electic screen at 1m (video) [pF] 52
Capacity wire/electic screen at 1 ft. (video) [pF] 15,8496
Damping at 50 MHz (100m & 20?? C) [dB] 4,5
Damping at 50 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 1,3716
Damping at 200 MHz (100m & 20?? C) [dB] 8,6
Damping at 200 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 2,6213
Damping at 470 MHz (100m & 20?? C) [dB] 13,4
Damping at 470 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 4,0843
Damping at 862 MHz (100m & 20?? C) [dB] 18,2
Damping at 862 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 5,5474
Damping at 1000 MHz (100m & 20?? C) [dB] 19,9
Damping at 1000 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 6,0655
Damping at 1485 MHz (100m & 20?? C) [dB] 24,5
Damping at 1485 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 7,4676
Damping at 1750 MHz (100m & 20?? C) [dB] 26,7
Damping at 1750 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 8,1382
Damping at 2150 MHz (100m & 20?? C) [dB] 29,9
Damping at 2150 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 9,1135
Damping at 3000 MHz (100m & 20?? C) [dB] 35,9
Damping at 3000 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 10,9423
Damping at 6000 MHz (100m & 20?? C) [dB] 51,5
Damping at 9000 MHz (100m & 20?? C) [dB] 63,5
Damping at 12000 MHz (100m & 20?? C) [dB] 73,5
Impedance [??] 75
Conductor resistance per 1 km [??] 21
Conductor resistance per 1000 ft. [??] 6,4008
Shield. resistance per 1 km [??] 11
Shield. resistance per 1000 ft. [??] 3,3528
BPVo-Euroclass Fca
