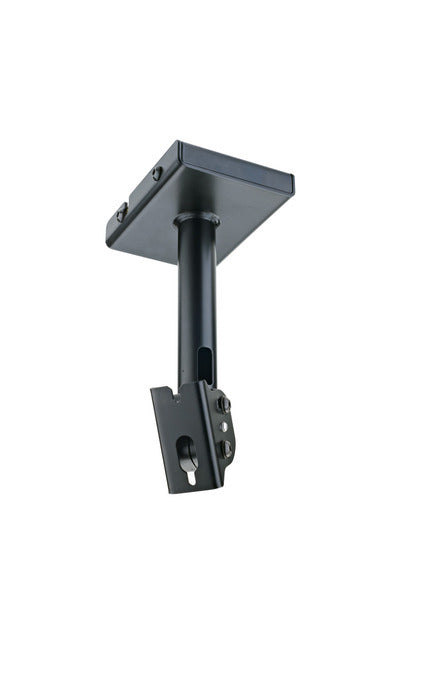

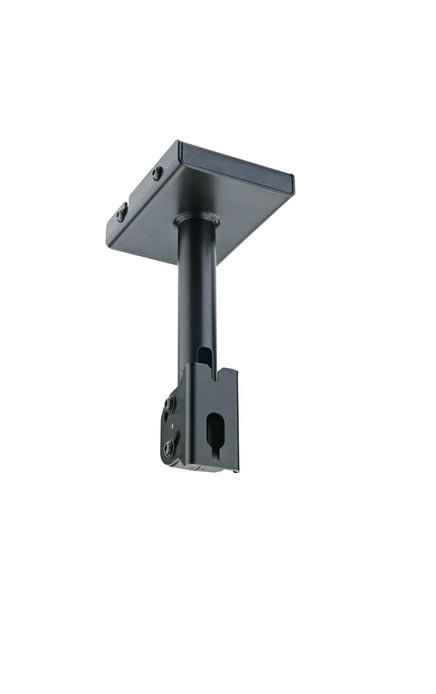

K&M - 24496-000-55 - Speaker Ceiling Mount.
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45? . Within the parameters - the settings range from 0 to 45?. The clamping bracket is for loudspeakers with a vertical mounting template from 70 to 76.2 mm. For other attachment possibilities additional adapter brackets are available. A mounting bracket with side and central cable management makes mounting to the ceiling easier.
|Angle of inclination:||0? to 45?|

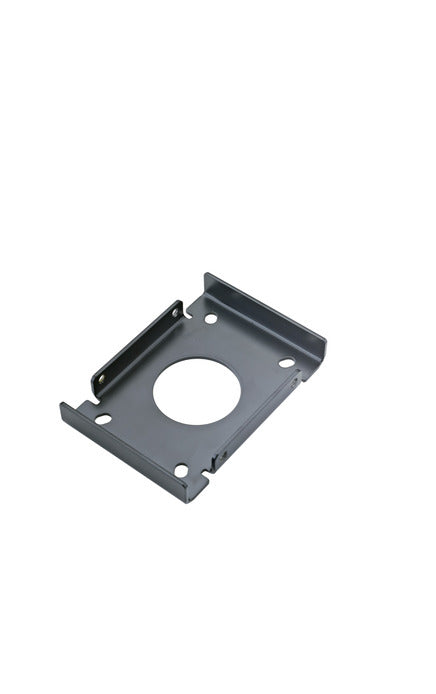

|Bearing plate:||90 x 47 mm|
|Ceiling clearance:||250 mm|
|Max. load capacity:||25 kg|
|Mounting:||attaches to ceilings|
|Spacing of holes:||from 70 to 76,2 mm|
|Special features:||easy mounting by convenient hooking in and screw locking; internal cable management|
