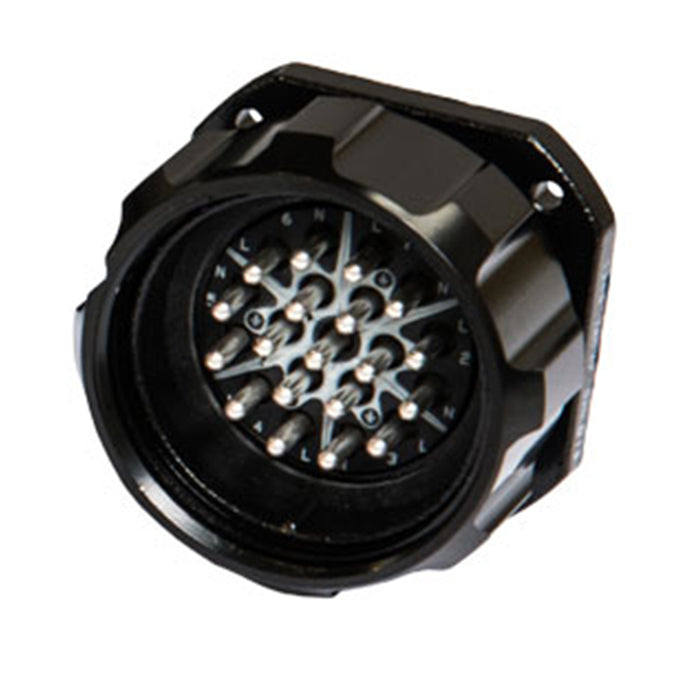

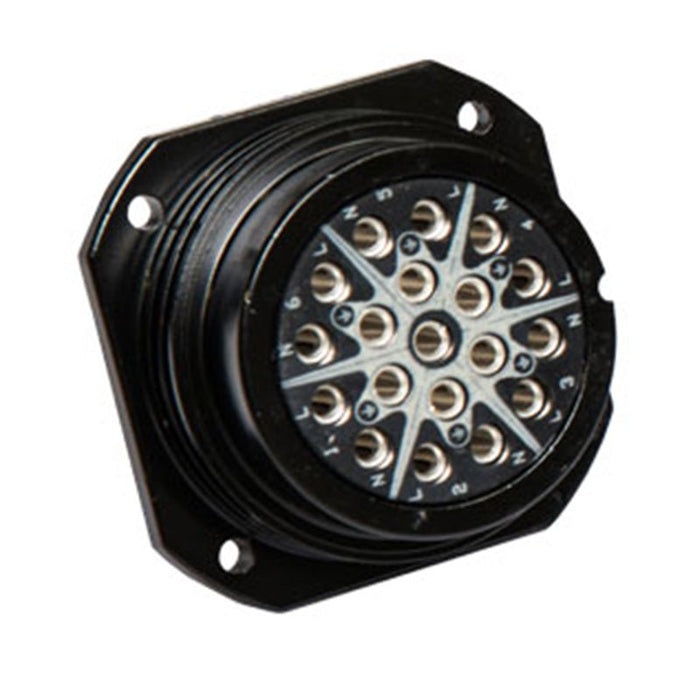

Ten47 - Socapex - Chassis Mount

by Ten47
$89.99
SKU SHLB19-PM-S-S

Showline 19 Pin Socapex Connectors

Showline 19 pin Socapex compatible connectors for entertainment lighting systems. Designed to meet the highest standards our connectors include the following features:

  • Proprietary 6-circuit socapex compatible lighting connectors feature 12 interlocking keys to help prevent spinning of the interior within the male and female housing
  • Prevents misalignment of male and female circuit conductors and unmateable or mismatched connections
  • Helps prevent broken conductors and loose or damaged ground rings
  • Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding six individual runs of cable
  • ?Tempered Spring? female contacts maintain constant pin pressure to help ensure low resistance connections
  • Machined aluminium housing with a hard wearing black finish provides enhanced durability
  • Silver plated brass contacts provide high conductivity
  • Available as standard for 1.5mm and 2.5mm cable to meet specific requirements
  • All black construction blends into scenery and is ideal for stage or studio lighting applications



Specifications:

Current Rating 23 Amps
Voltage Rating 600 VAC Max
Operating Temp ?55?C / +60?C
Ingress Protection IP67 watertight when mated
Shells Machined Aluminium
Finish Hard Wearing Black
Insert Silicone
Cable Entry Standard M40 ? 15?23mm M40 O/S ? 26?32mm
Conductor Size Standard 1.5 mm/2.5 mm
Contacts Silver plated Brass
