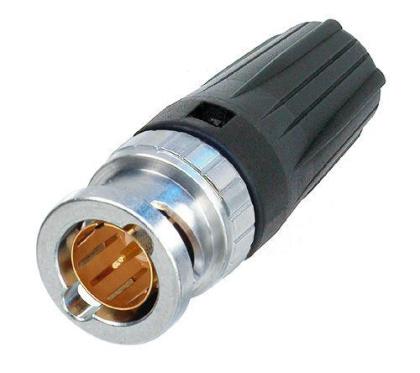

Neutrik - NBNC75BTU11 - A true 75 ohm design and is perfectly suitable for HD applications.

by Neutrik

The rearTWIST HD BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications.

The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Belden 1694A (ANH), Belden 4694R, Bryant BD SD11, Canare L-4.5CHD, Clark Wire CD7506-0, CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77

Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)

Features & Benefits

  • ?rearTWIST Principle? locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the ?head? of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75???design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies

Technical Information

Title NBNC75BTU11
Connection Type BNC 75 ?
Gender male
Contact resistance ? 3 m? (inner)
Contact resistance ? 2 m? (outer)
Dielectric strength 1,5 kVdc
Impedance 75 ?
Insulation resistance > 5 G?
Rated voltage <50 V
VSWR ?1.050/>32 dB up to 1 GHz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz
Cable O.D. 7.3 mm
Cable retention > 30 N (Center)
Crimp size 7,36 Hex crimp (shield) acc. MIL22520/5-41(A)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force < 25 N
Lifetime > 1000 mating cycles
Locking device Bayonett
Cable anchoring Jacket crimping
Contacts Brass (CuZn35Pb2), 0.2 ?m AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy?
Temperature range -30 ?C to +85 ?C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
