ARX - Blue DI - Bluetooth Direct Box

by ARX
$504.99
SKU Blue DI

Blue DI Wireless Direct Box

Smart Phones and Tablets have rapidly become the audio source of choice for Corporate A.V Presentations, Seminars, System Demonstrations and Testing, Musicians, D.Js and many other audio system users.

Designed by the ARX Engineering team to fill the market niche for a wireless Active Direct Box interface, the new Blue DI connects today's (and tomorrow's) SmartPhones, Tablets and similar devices, to the Balanced Line Level Pro Audio world.

Simply place your wireless enabled SmartPhone, PC or tablet near the Blue DI, scan for 'ARX Blue DI', and then pair with it. Pull up a music file, press PLAY, and that's all there is to it!

Ultra low noise and distortion circuitry, plus electronically Balanced XLR outputs complete the Blue DI package.

Features:

  • Muliple power options - Phantom Power and12 V DC
  • Wireless connection - allows many portable media devices to still charge while playing
  • Electronically Balanced Outputs with 200 Ohms output impedance lets you drive long cable runs without signal loss
  • Ultra low distortion (.01% @ 0dB out) circuitry, with a Frequency Response of 20 Hz to 20 KHz ?1dB
  • The Blue DI is fitted into a Heavy duty all-steel chassis finished in attractive textured blue polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad
  • Optional bracket kit for under-table mounting.

Analog Specifications:

Gain: Nominally unity with source device

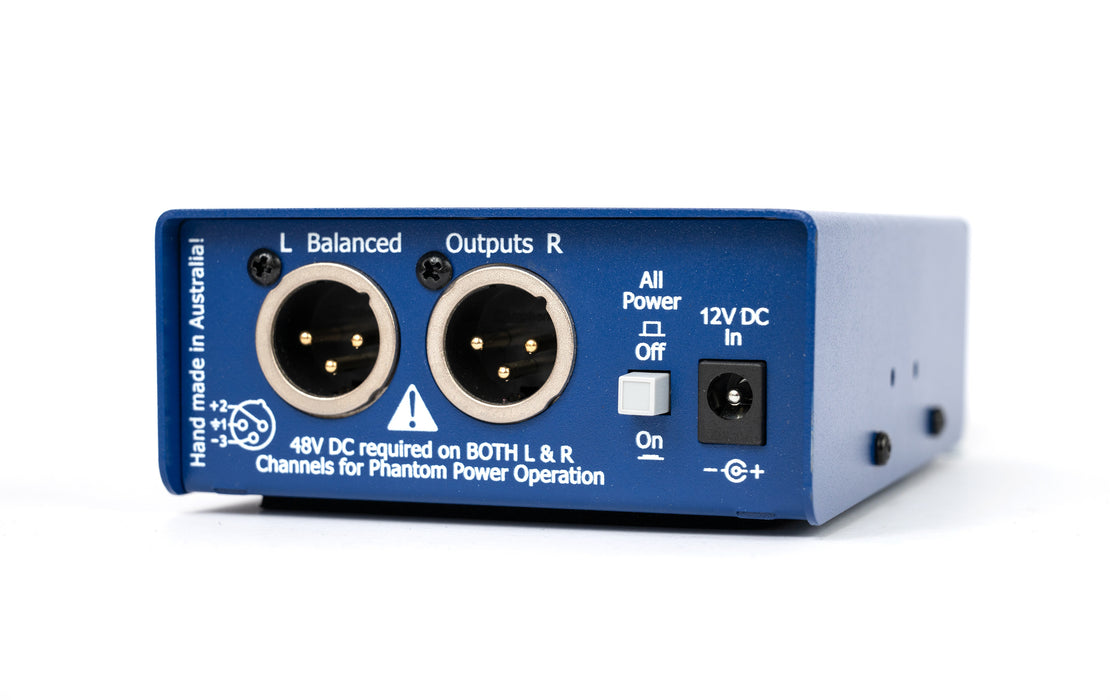

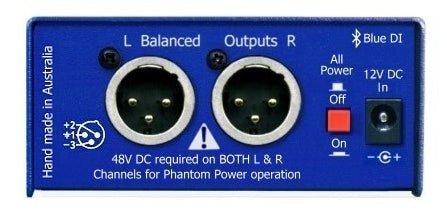

Outputs:

Stereo Balanced - 200 Ohms output impedance

Pin 1 Ground

Pin 2 + Signal

Pin 3 ? Signal

Power Requirements: +48VDC Phantom Power - Please Note that both Left and Right XLR outputs must have 48 VDC Phantom applied

+12VDC socket for External 'Wall Wart' power supply


Receiver Specifications:

Range: Approx 12 metres

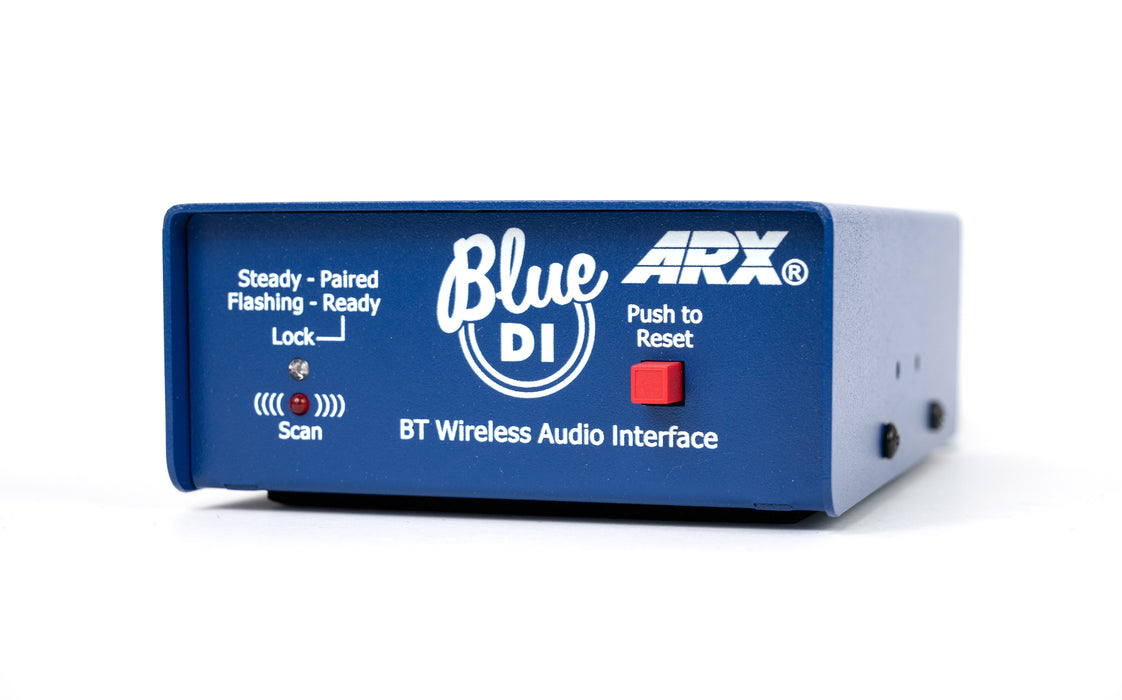

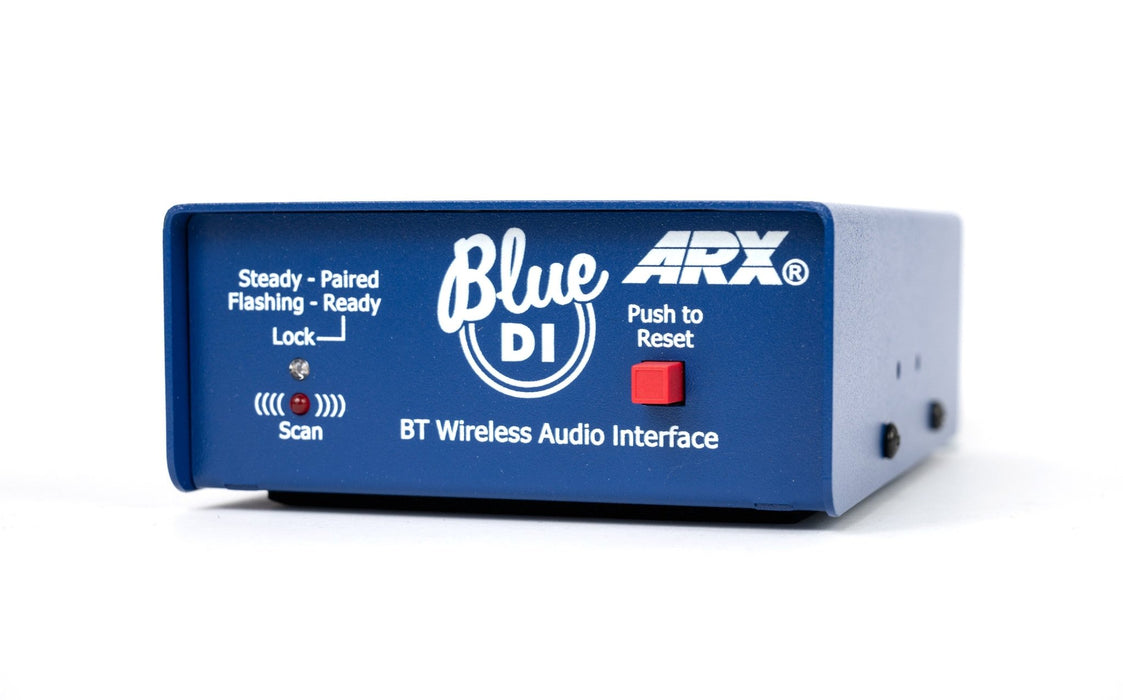

LED Indicators: Scan Red LED Red LED Flashes

Lock Blue LED Matching/Pairing: Blue LED Flashes


Matched/Paired: Blue LED On
Frequency: 2.402 - 2.480 GHz
Sensitivity: -90dBM @0.1% BER



Construction: All-steel polyurethane coated chassis, fibreglass PCB
