Cable mono culture...

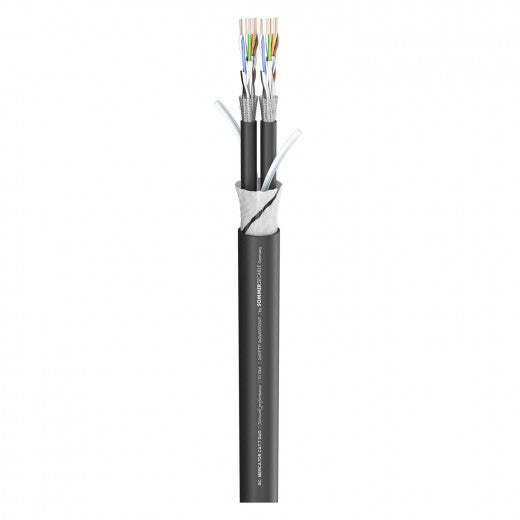

is what we did with the SC-Mercator QUAD 4 x CAT.7 and DUO 2 x CAT.7. Here we have packed no less than four or respectively two CAT.7 lines in a highly flexible and robust Strong PVC jacket. Due to the fine litz construction of the single wires the overall construction achieves a good flexibility. Each of the network lines is shielded against external interferences by an overall screen made of a braided copper mesh plus a foil screen per wire pair (PimF).
With the 10 Gbit-capable SC-Mercator QUAD 4 x CAT.7 / DUO 2 x CAT.7 up to 4 or 2 high-speed ethernet or compatible signals can be transmitted simultaneously.
Advantages:
- Four or respectively two high-speed lines in one robust jacket
- Full CAT.6a functionality / 10 GBit
- Redundant transmission capability
- Highly flexible due to fine litz construction
Application:
- Linking of sound and light direction via separate networks
- For quick and efficient cabling, e.g. of LED video wall systems
- For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions
Specifications:
| Article number | 580-0311-02 |
|---|---|
| Name | SC-Mercator |
| EAN | 4049371446297 |
| Properties | OFC oxygen free copper |
| Properties | Digital 110 ? AES / EBU |
| Application area | Stage / live |
| Application area | Studio / Broadcast |
| Application area | Installation |
| Application | Multipair Cat.7 |
| Colour | black |
| Colour detailed | black |
| Construction | 2 x S/FTP 4x2x0,51mm |
| Construction (network) | SFTP 4x2x0,51mm |
| Jacket material | PVC |
| Jacket ? [mm] | 17.40 |
| Number of Channels (network) | 2 |
| Inner conductor (network) | 8 |
| Inner conductor ? (network) [mm] | 0,51 |
| AWG (network) | 24 |
| Shielding | PimF, Copper braiding tin-plated |
| Shielding factor [%] | 100 |
| Copper strands (network) | 1 |
| Conductor insulation material | Foam / Skin-PE |
| Conductor insulation ? [mm] | 1,38 |
| Weight per 1 m [g] | 260 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,15 |
| Style variant | round |
| Packing | 100 m spool |
| Packing | 500 m spool |
| CAT-Type | CAT.7 |
| Max. section length [m] | 140 |
| Velocity factor | 0,77 |
| Temperature min. [?C] | -20 |
| Temperature max. [?C] | 60 |
| Width [mm] | 17,8 |
| [mm] | 17,8 |
| Capacity wire/wire at 1m (network) [pF] | 45 |
| Impedance [?] | 100 |
| Insulation resist. per 1 km [G?] | 5 |
| Insulation resist. per 1 km (network) [G?] | 5 |
| Loop resistance per km [?] | 190 |
| BPVo-Euroclass | Fca |
