***Price Is Per Meter***
One step forward, one step back...
Round and round, this ain't too hard. When data have to pass to and fro, a digital cable with return channel should be used. The wave impedance is also defined as 110 Ω with this cable. Of the 4 wires 2 are employed for the feedback function. The robust outer jacket is suitable for outdoor and fixed installations alike. Color coding according to DIN 47100. Owing to the double shielding (AL/PT foil + Cu braid) and the wire coding it complies with the generally applicable regulations (VDE 0812/VDE 0207). Transfer speed 256 Kbs pursuant to EIA 485 standard.
Advantages:
- Digital transmission over long distances due to the DMX and AES/EBU standards
- Excellent protection against electric interference (Cu mesh screen + AL/PT foil)
- Extremely robust due to the special tough jacket
Application:
- Networking of scanners and lighting systems with check-back function
- Connection of digital control units and devices of all kinds
- PUR blend version for mobile outdoor applications
| Article number | 541-0051 |
|---|---|

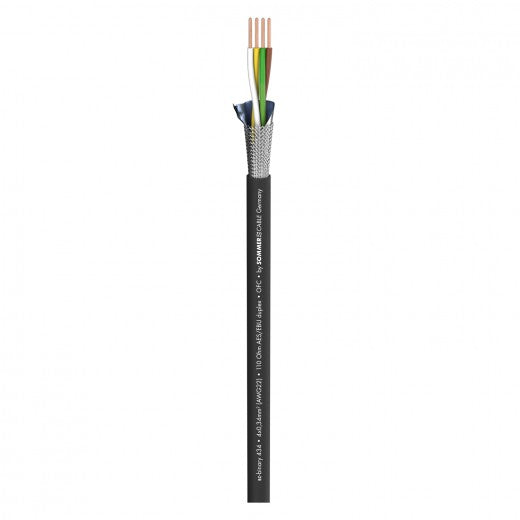

| Name | Binary 434 DMX512 |
| EAN | 4049371002417 |
| Properties | Analog |
| Properties | Digital 110 Ω AES / EBU |
| Properties | OFC oxygen free copper |
| Properties | PUR Master Blend |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application area | ELA 100 V |
| Application area | Stage / live |
| Application area | Installation |
| Application | DMX |
| Colour | black |
| Colour detailed | black |
| Signal transmission | symmetrical |
| Construction | [2(2LI2YS0,34mm²)(ST)]CY |
| Jacket material | PUR-Blend |
| Jacket Ø [mm] | 7,00 |
| Number of Channels (AES/EBU, DMX) | 1 |
| Inner conductor (AES/EBU, DMX) | 4 |
| Inner conductor (AES/EBU, DMX) [mm²] | 0,34 |
| Inner conductor Ø (AES/EBU, DMX) [mm] | 0,66 |
| AWG (AES/EBU, DMX) | 22 |
| Shielding | Copper-cross mesh, tined + AL / PT foil |
| Shielding factor [%] | 100 |
| Copper strands (AES/EBU, DMX) | 7 |
| Copper strand Ø (AES/EBU, DMX) [mm] | 0,25 |
| Conductor insulation material | PE |
| Conductor insulation Ø [mm] | 1,70 |
| Weight per 1 m [g] | 65 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,22 |
| Style variant | round |
| Packing | 100 m spool |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 70 |
| Width [mm] | 7 |
| Height [mm] | 7 |
| Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] | 58 |
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] | 17,6784 |
| Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] | 100 |
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] | 30,48 |
| Impedance [Ω] | 110 |
| Insulation resist. per 1 km [GΩ] | 5 |
| Insulation resist. per 1000 feet [GΩ] | 1,524 |
| Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] | 5 |
| Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] | 1,524 |
| Conductor resistance per 1 km [Ω] | 53 |
| Conductor resistance per 1000 ft. [Ω] | 16,1544 |
| Shield. resistance per 1 km [Ω] | 15 |
| Shield. resistance per 1000 ft. [Ω] | 4,572 |
| BPVo-Euroclass | Fca |
