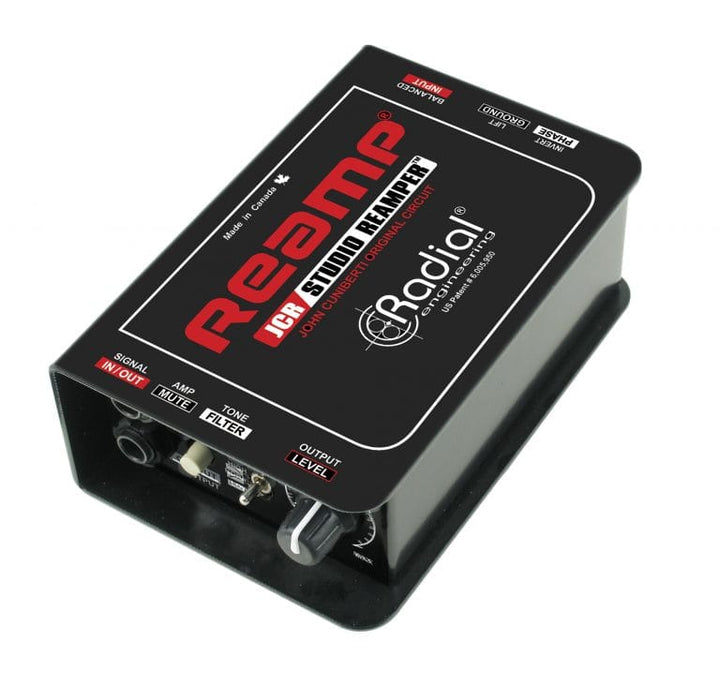

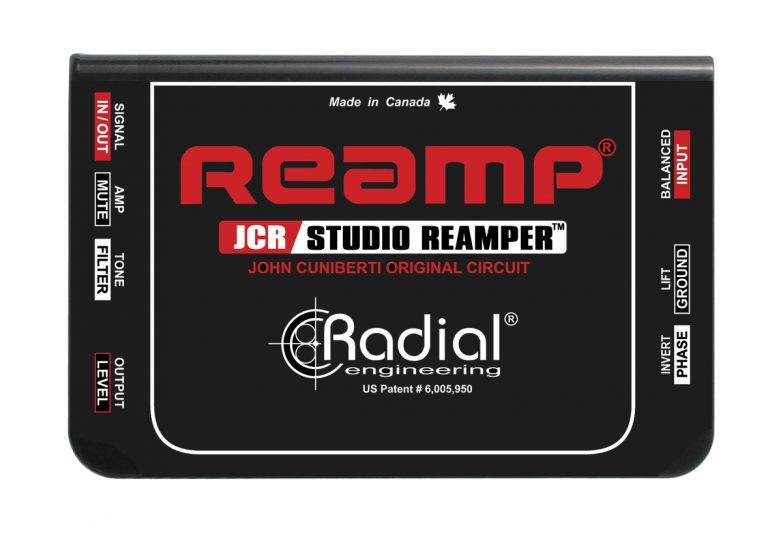

Radial Engineering - JCR - The Original Reamp Circuit.
Currently Out Of Stock
$549.00
SKU REAMP-JCR
The Original Reamp Circuit
The Reamp® JCR is a high-performance passive Reamper that gives you the ability to take a pre-recorded track and send it through a guitar amp or pedal chain, allowing you to explore new sonic textures and experiment with microphone placement, amp and pedal settings without limit. The JCR utilizes the original Reamp circuit designed by recording industry legend John Cuniberti, providing exceptional audio quality that preserves every detail of the original recording while optimizing it to feed amplifiers and effects pedals.
- Lets you re-record tracks through a guitar or bass amp
- Original Reamp® circuit designed by John Cuniberti
- Easy to use, Plug-and-play passive design
- Improves productivity while expanding creative options
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive, transformer isolated | |
| Frequency response: | 20Hz ~ 20kHz (+/-1dB) | |
| Dynamic range: | 140dB | |
| Total harmonic distortion: | 0.001% @ 1kHz/0dBu input | |
| Intermodulation Distortion: | 0.0025% @ 1kHz/-10dB input | |
| Phase Deviation: | 2º @ 100Hz; 0º @ 800Hz | |
| Input Impedance: | 1800 Ohms | |
| Output Impedance: | 4.8k Ohms | |
| Common Mode Rejection Ratio: | -55dB @ 55Hz | |
| Noise Floor: | -115dBu | |
| Maximum Input: | +26dBu | |
| Features | ||

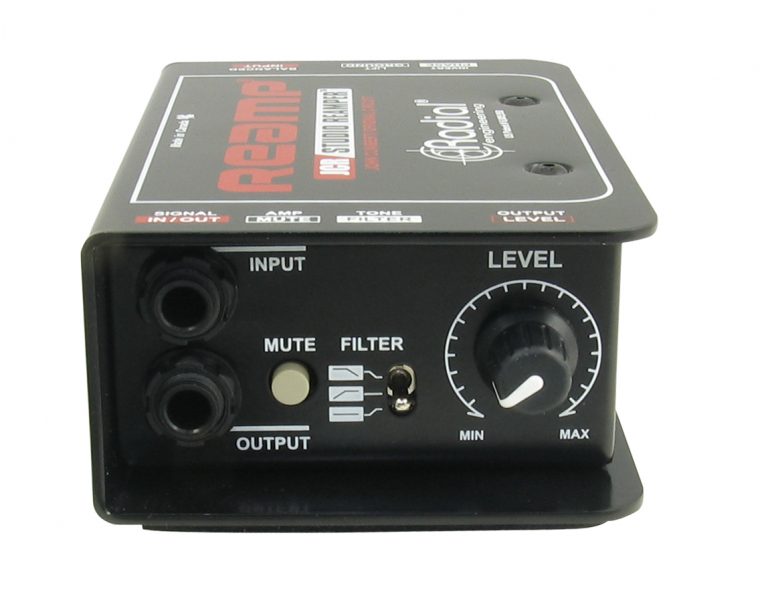

| 180° polarity reverse, Ground lift, HPF, LPF, Level Control | ||

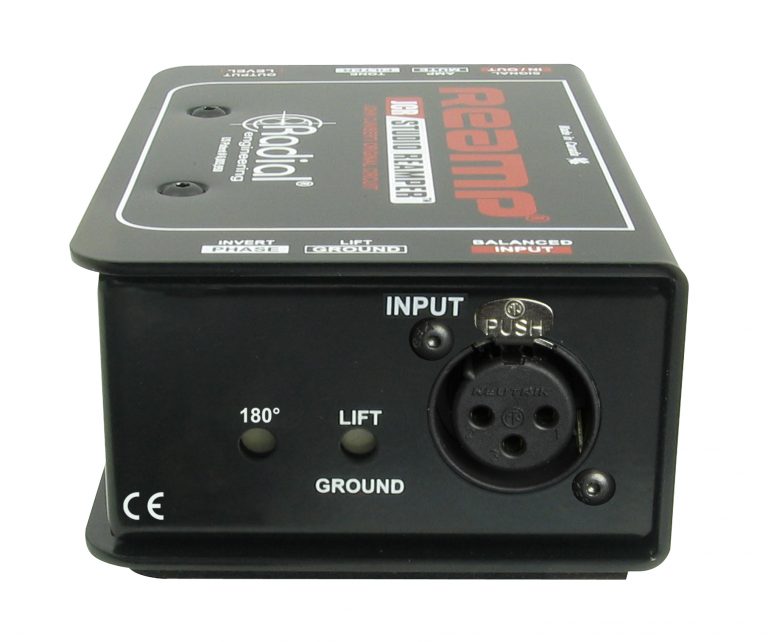

| Input Connectors: | 1/4" TRS, XLR | |
| Output Connectors: | 1/4" unbalanced | |
| General | ||
| Construction: | 14-gauge steel chassis & outer shell | |
| Size (L x W x D): | 3.3" x 5.0" x 2" (84 x 127 x 48mm) | |
| Weight: | 1.32lb (600g) | |
| Shipping size (L x W x D): | 4" x 3" x 6.5" (102 x 76 x 165mm) | |
| Shipping weight: | 1.85lb (840g) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
