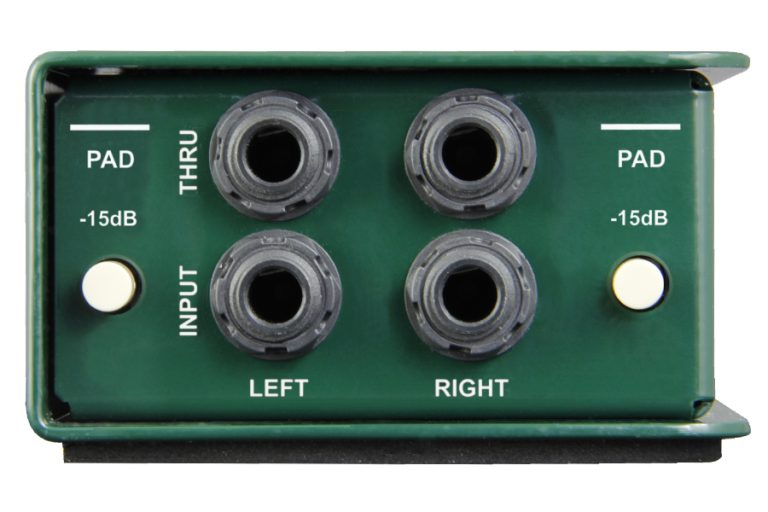

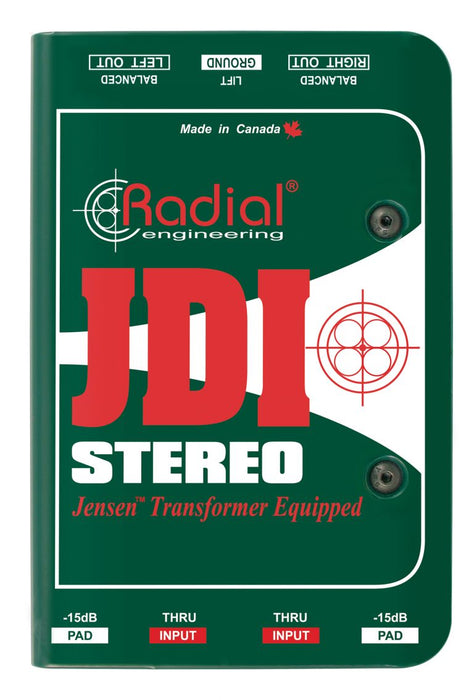

Radial Engineering - JDI-Stereo - Passive 2-Channel Direct Box.
Currently Out Of Stock
$839.00
SKU JDI-STEREO
The World's Finest Stereo Direct Box
The JDI Stereo is a high performance 2-channel passive direct box for live concert touring and professional recording applications, featuring premium Jensen transformers for exceptional audio performance.
- Jensen transformer equipped passive DI
- Eliminates hum and buzz from ground loops
- Virtually zero phase & harmonic distortion
- Exceptional signal handling and noise rejection
- Compact stereo format for twice the performance
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive, transformer based | |
| Transformer: | Jensen JT-DBE | |
| Number of channels: | Two channels (dual mono) | |
| Frequency response: | 20Hz ~ 20KHz (± 0.2dB) | |
| Dynamic range: | 135dB | |
| Total harmonic distortion: | 0.05% from 20Hz ~ 20kHz @-10dB | |
| Phase Deviation: | 0.3° @ 100Hz; 3° @ 20Hz | |
| Input Impedance: | 140k Ohms, unbalanced | |
| Output Impedance: | 150 Ohms, balanced | |
| Maximum Input: | +21dB @ 20Hz ~ 20kHz | |
| Features | ||
| Input pad, Ground lift | ||
| Input Connectors: | Unbalanced 1/4" | |
| Output Connectors: | XLR out, 1/4" thru | |
| General | ||
| Construction: | 14 gauge steel chassis & outer shell | |
| Size (L x W x D): | 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm) | |
| Weight: | 1.55 lbs (703 grams) | |
| Shipping size (L x W x D): | 6.5" x 4" x 3" (165mm x 102mm x 76mm) | |
| Shipping weight: | 1.92 lbs (870.9 grams) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
