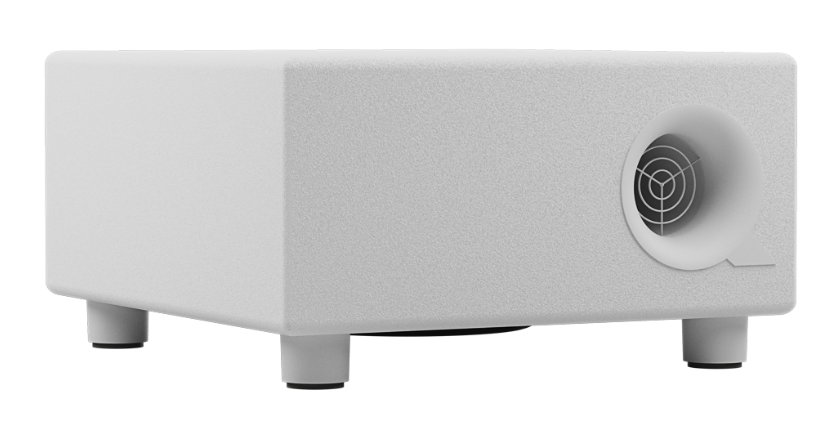

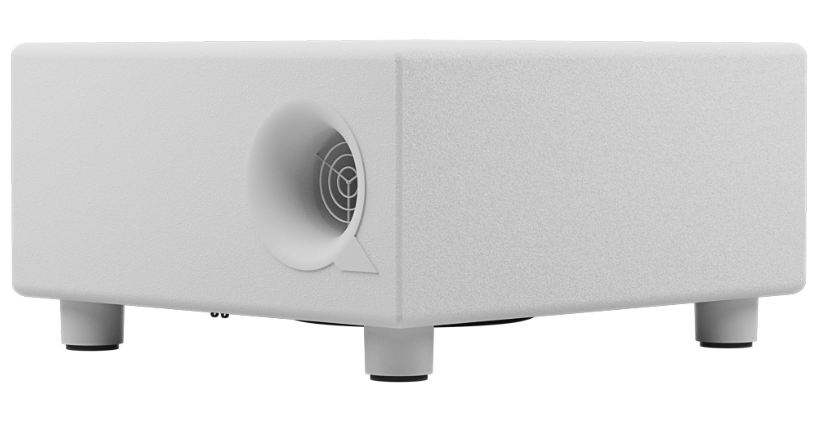

Quest - MX10S - Installation Subwoofer, 10" LF, 8 Ohm, .
Currently Out Of Stock
$1,035.99
SKU MX10SB
MX10S
10" High-Fidelity Compact Subwoofer

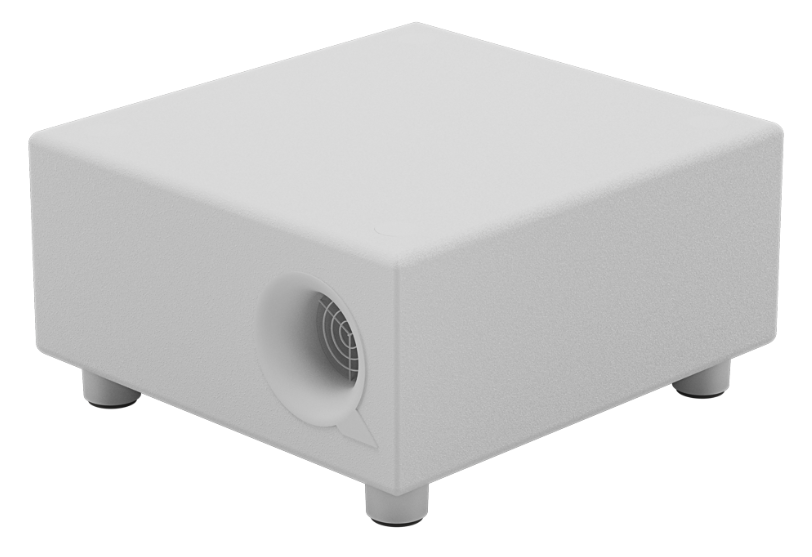

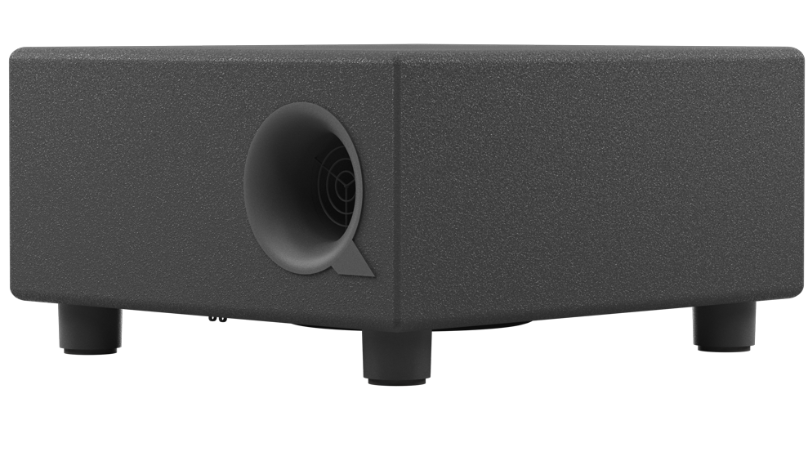

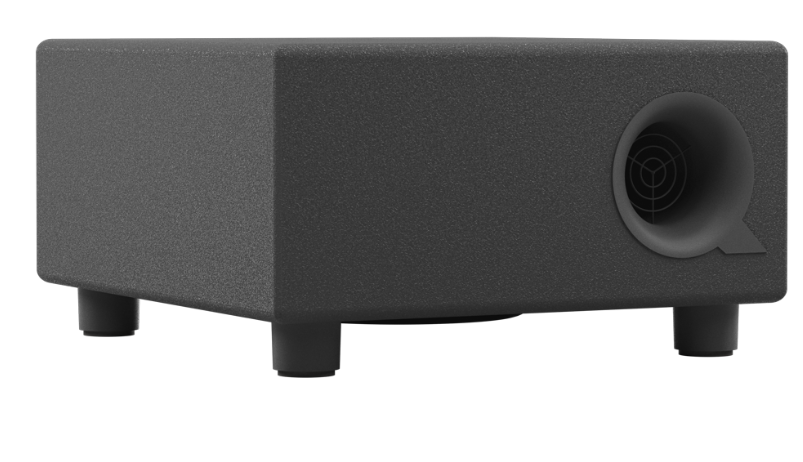

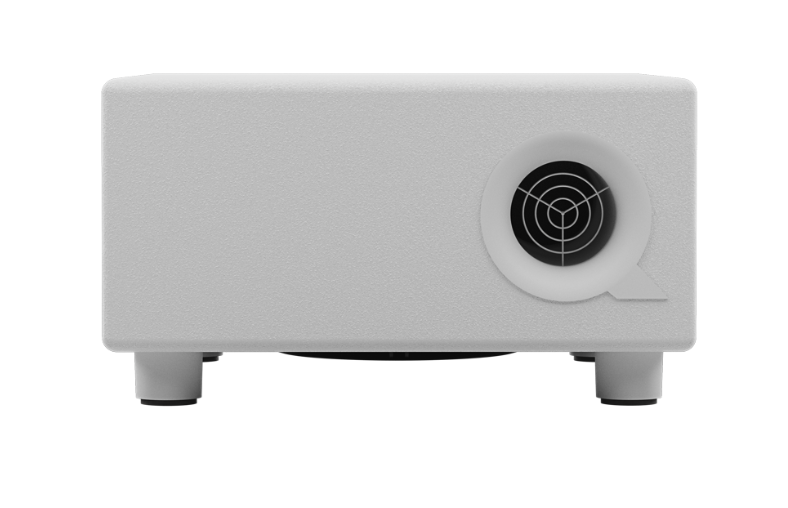

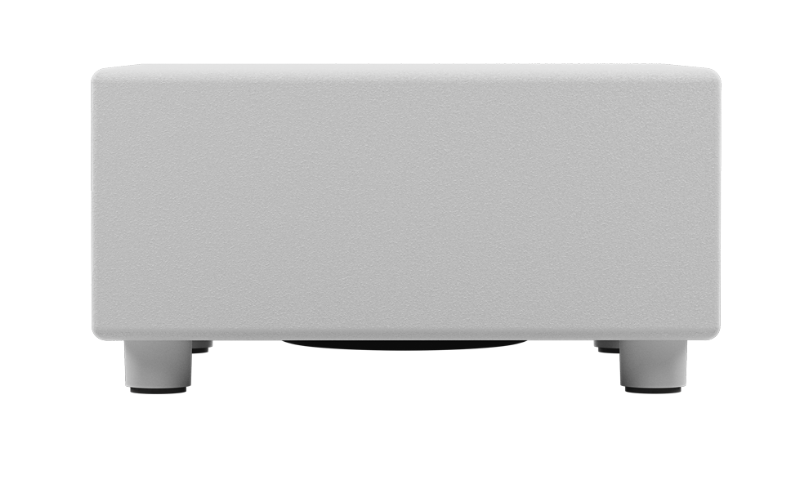

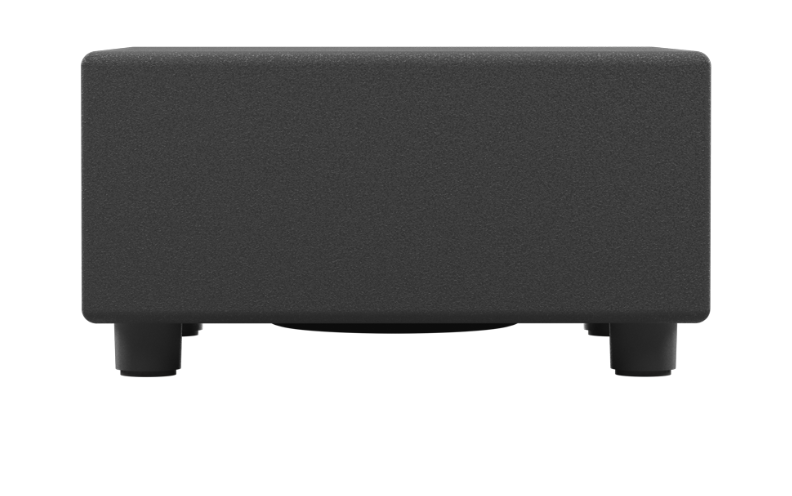

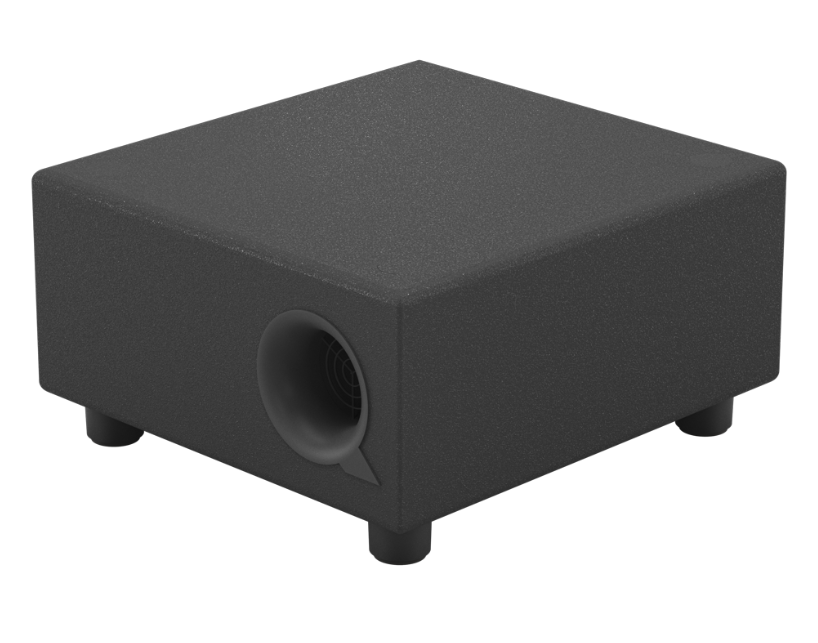

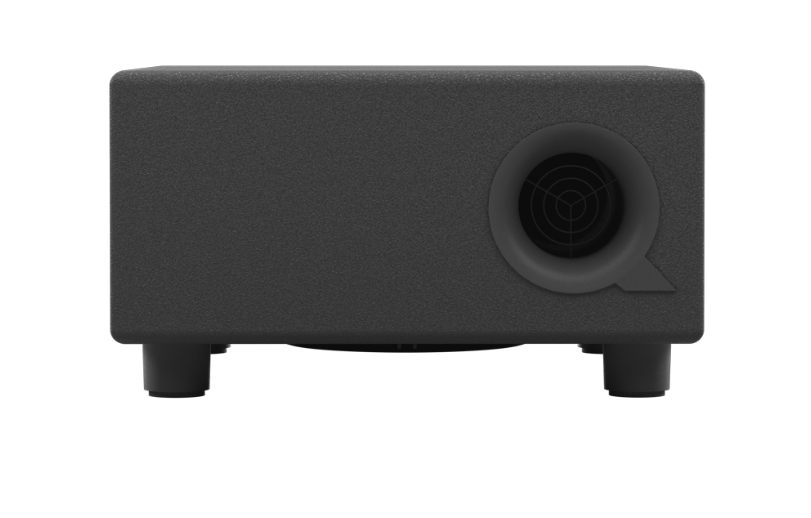

The Quest MX10S is engineered to provide extended low-frequency output within the MX Series, complementing higher-end installations that require pronounced bass performance. Featuring a custom-designed 10-inch woofer with a 50 mm voice coil and dual magnet configuration, the MX10S delivers robust and extended bass response suitable for commercial venues and distributed audio systems. It is available in low-sheen black or white finishes and is designed to integrate seamlessly with other series components, ensuring a balanced and visually coherent audio solution.
Key Specifications:
- Impedance: 8 Ω
- Transducer: 10″ LF
- Power: 300W RMS
- Mounting: Wall or Ceiling
- Design: Low Profile
SPECIFICATIONS
| COLOURS / MODELS |
|
||||
| FREQUENCY RESPONSE (-6 dB) | 44Hz to 90Hz | ||||
| SENSITIVITY - 1 W @ 1 m | 96dB | ||||
| MAXIMUM SPL @ 1 m | 118dB | ||||
| POWER HANDLING (RMS/PEAK) | 300W / 600W | ||||
| NOMINAL IMPEDANCE | 8Ω | ||||
| TRANSDUCERS | LF: 254mm (10") Woofer | ||||
| DISPERSION (H° x V°) | Omnidirectional | ||||
| CONNECTIONS | Euroblock/Phoenix Connector - 5.08mm Pitch (In/Thru) | ||||
| DIMENSIONS (H x W x D) | 256 x 500 x 470mm (19.6" x 19.7" x 10") | ||||
| WEIGHT | 15.1kg (33.3lb) | ||||
| RIGGING POINTS | None | ||||
| CABINET MATERIAL & FINISH | Birch Plywood with Low Sheen Polyurea Paint | ||||
| GRILLE MATERIAL & FINISH | Not Applicable (No Grille) | ||||
| SHIPPING DIMENSIONS (H x W x D) | 520 x 520 x 320mm (20.5" x 20.5" x 16.4") | ||||
| SHIPPING WEIGHT | 15.5kg (34.2lb) | ||||
| RECOMMENDED POWER AMPLIFIER | Quest QX or QXD Amplifiers | ||||
| ACCESSORIES (INCLUDED) | Euroblock/Phoenix Connector | ||||
| ACCESSORIES (AVAILABLE SEPARATELY) | White Mounting Plate (MP10SW) and Black Mounting Plate (MP10SB) |
