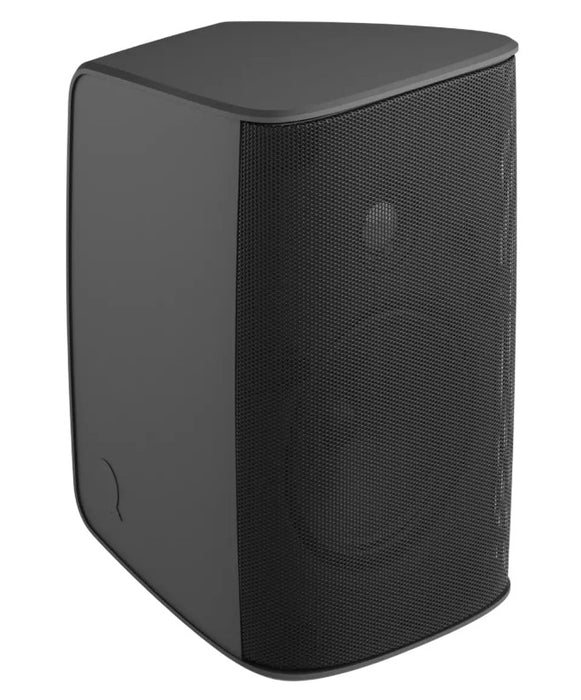

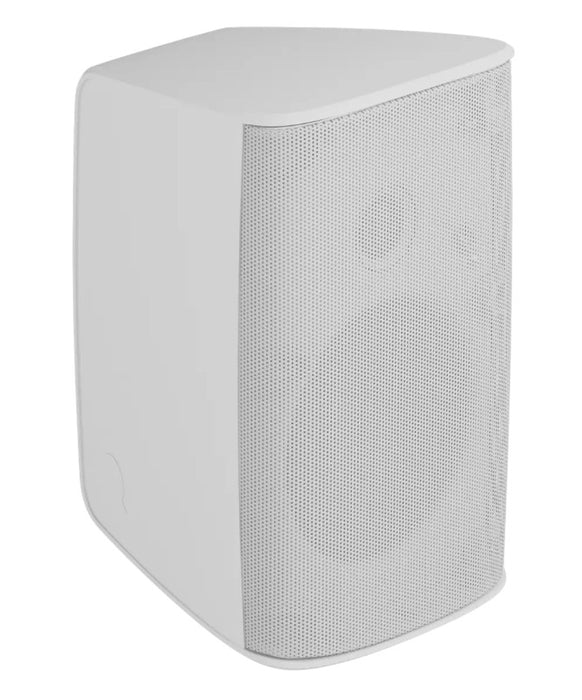

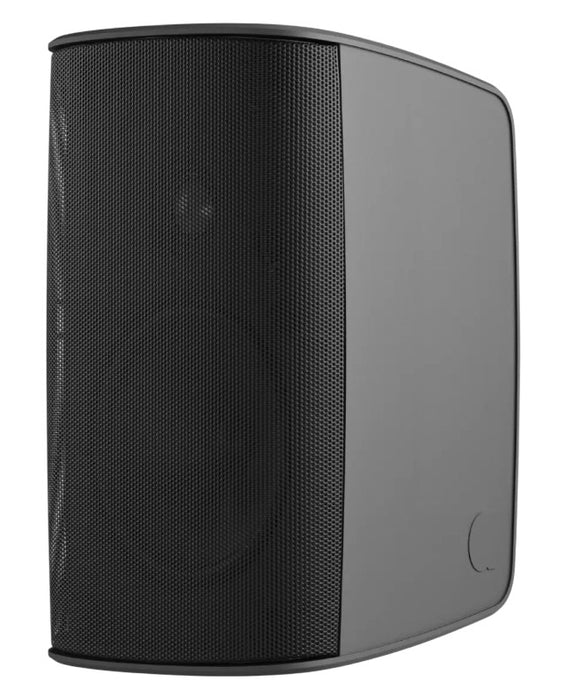

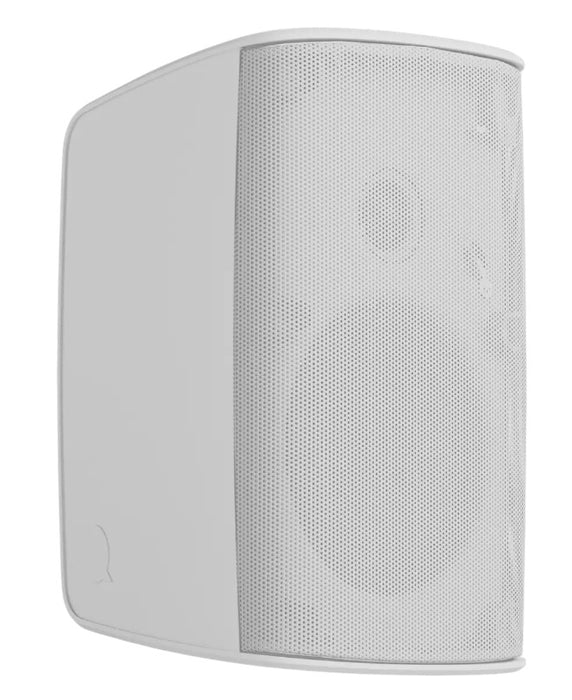

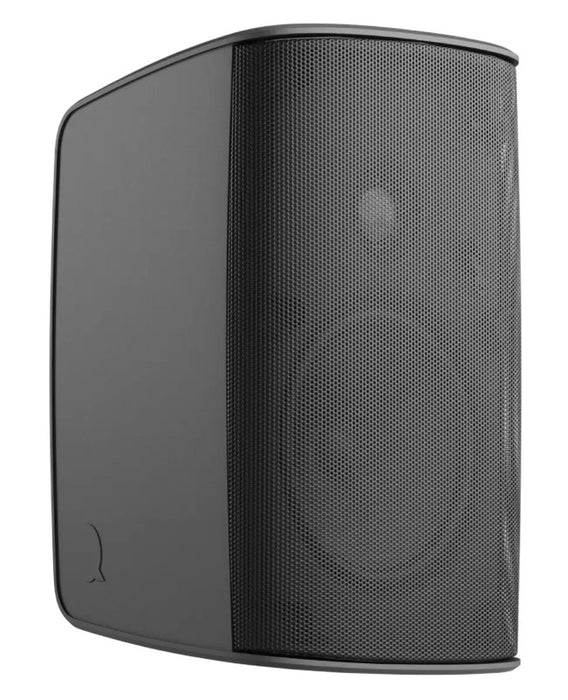

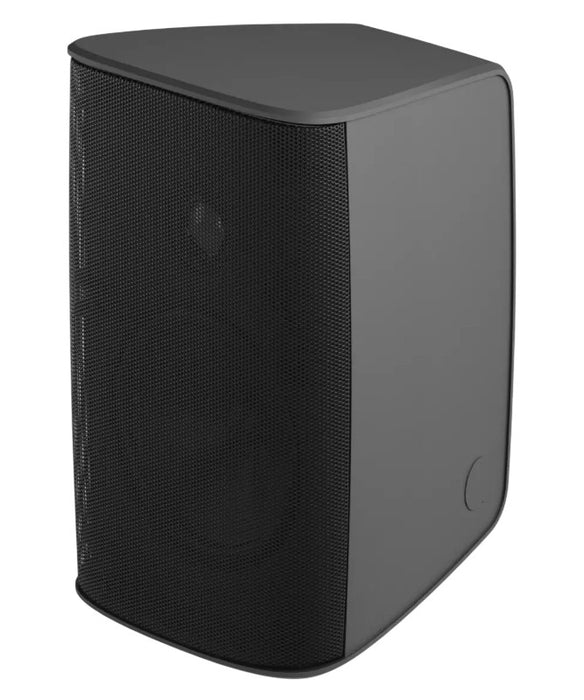

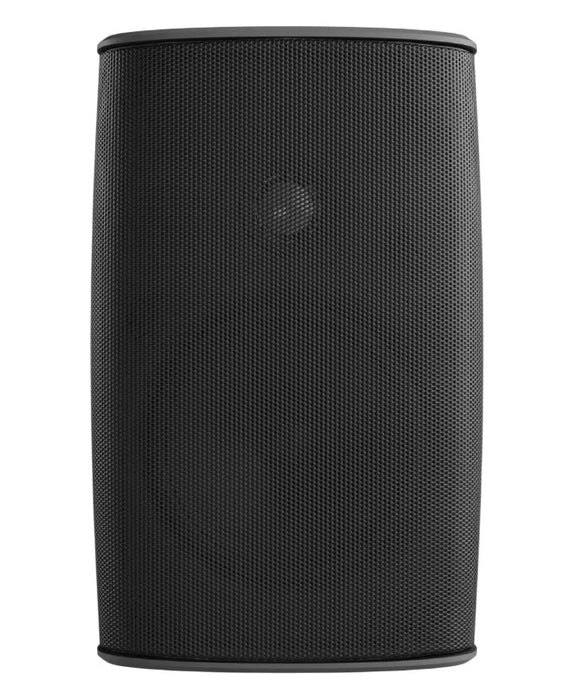

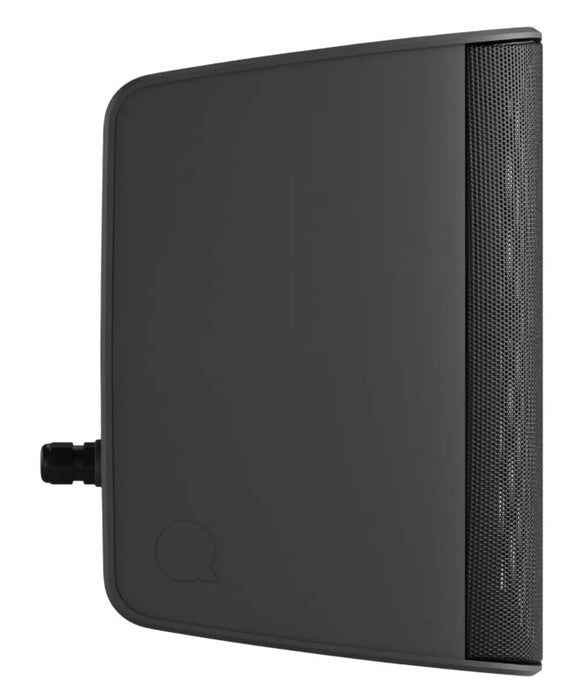

Quest - MX4 - 2-Way Surface-Mount Speaker, IP65, 4" LF + 1" HF, 16 Ohm/100V.
Currently Out Of Stock
$492.99
SKU MX4B
MX4
2-Way 4" High-Fidelity Weatherproof Speaker
The Quest MX4 is the most compact member of the MX Series, engineered for installations where discreet form factor and weather resistance are essential. Its low‑profile design enables unobtrusive wall or ceiling mounting, while delivering clear and articulate audio reproduction. Built to withstand harsh environmental conditions, the MX4 integrates seamlessly with other MX Series loudspeakers to provide consistent, full‑range coverage without compromising aesthetics.
The included UB1X bracket system allows for rapid, repeatable deployment, streamlining installation and ensuring precise alignment every time.
Key Specifications:
- Impedance: 16 Ω & 70/100V
- Transducers: 1″ HF & 4″ LF
- Dispersion: 150° × 125°
- Power: 50W RMS
- Weather Rating: IP55, or IP65 with included connector cover.
- Mounting: Wall mount (UB1X) included; ceiling mount (UB2X) optional.
SPECIFICATIONS
| COLOURS / MODELS |
|
||||
| FREQUENCY RESPONSE (-6 dB) | 100Hz to 20kHz | ||||
| SENSITIVITY - 1 W @ 1 m | 86dB | ||||
| MAXIMUM SPL @ 1 m | 106dB | ||||
| POWER HANDLING (RMS/PEAK) | 50W / 100W | ||||
| NOMINAL IMPEDANCE | 16Ω | ||||
| TRANSDUCERS | HF: 25mm (1") Dome Tweeter / LF: 102mm (4") Woofer | ||||
| DISPERSION (H° x V°) | 150° x 125° | ||||
| TRANSFORMER SETTINGS | 100V: 4W / 8W / 15W / 30W | ||||
| CONNECTIONS | Euroblock/Phoenix Connector - 5.08mm Pitch (In/Thru) | ||||
| DIMENSIONS (H x W x D) | 250 x 150 x 172mm (9.8" x 5.9" x 6.8") | ||||
| WEIGHT | 2.6kg (5.7lb) | ||||

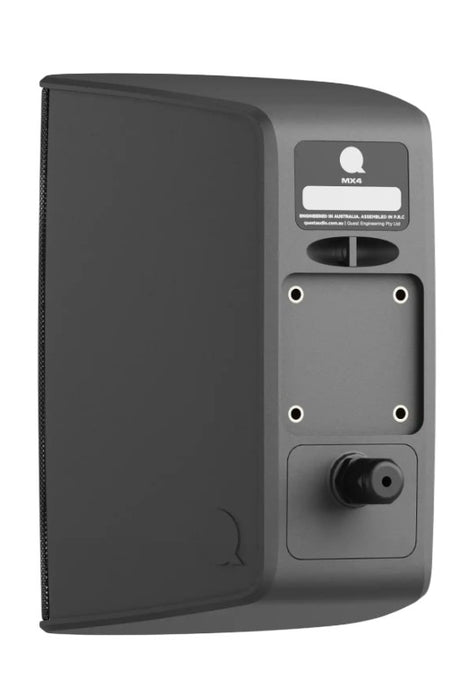

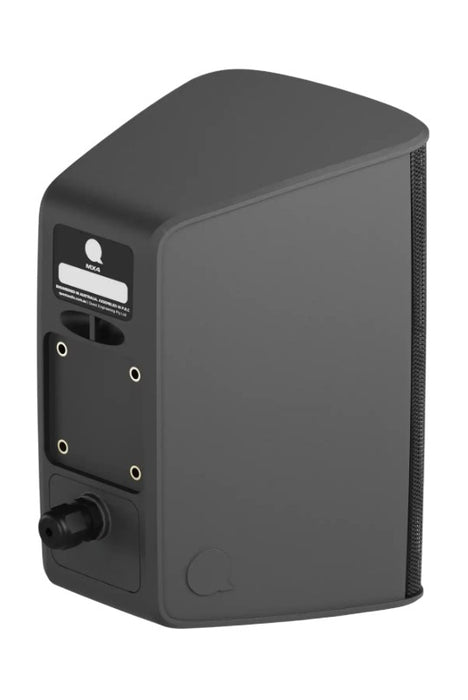

| RIGGING POINTS | 50mm x 50mm Back Bracket Mount | ||||
| IP RATING | Speaker Cabinet IP55 or IP65 when used with included Weatherproof Connector Cover | ||||
| CABINET MATERIAL & FINISH | Injection Moulded ASA (Acrylonitrile Styrene Acrylate) | ||||
| GRILLE MATERIAL & FINISH | Removable Powder Coated Aluminium Grille | ||||
| SHIPPING DIMENSIONS (H x W x D) | 305 x 230 x 325mm (12" x 9" x 12.8") | ||||
| SHIPPING WEIGHT | 4.2kg (9.3lb) | ||||
| RECOMMENDED POWER AMPLIFIER | Quest QX or QXD Amplifiers | ||||
| ACCESSORIES (INCLUDED) | Wall Mount Bracket (UB1XB/UB1XW), Weatherproof Connector Cover, Standard Connector Cover & Euroblock/Phoenix Connector | ||||
| ACCESSORIES (AVAILABLE SEPARATELY) | Ceiling Mount Bracket (UB2XB/UB2XBW) |
