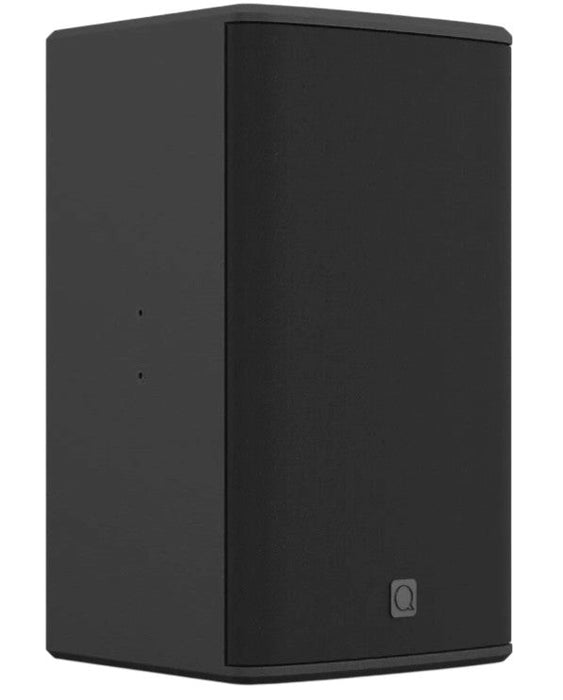

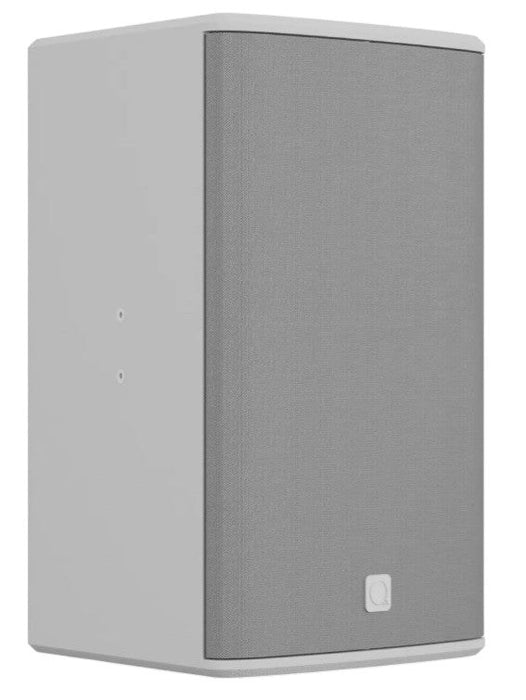

Qi8
2-Way 8" Installation Loudspeaker
The Quest Qi8 is engineered for larger spaces that demand full, dynamic sound output combined with refined aesthetics. Featuring high-output drivers housed within a premium timber enclosure, the Qi8 delivers powerful yet articulate audio performance. Its balanced design ensures both high-fidelity sound reproduction and seamless integration into environments such as restaurants, lounges, and expansive retail spaces.
Key Specifications:
- Impedance: 8 Ω
- Transducers: 1″ HF & 8″ LF
- Dispersion: 90° x 70°
- Horn: Rotatable
- Power: 200W RMS
- Mounting: Horizontal & Vertical Brackets
SPECIFICATIONS
| COLOURS / MODELS |
|
||||
| FREQUENCY RESPONSE (-6 dB) | 60Hz to 20kHz | ||||
| SENSITIVITY - 1 W @ 1 m | 94.1dB | ||||
| MAXIMUM SPL @ 1 m | 123.2dB | ||||
| POWER HANDLING (RMS/PEAK) | 200W / 400W | ||||
| NOMINAL IMPEDANCE | 8Ω | ||||
| TRANSDUCERS | HF: 25mm (1") Compression Driver / LF: 203mm (8") Woofer | ||||
| DISPERSION (H° x V°) | 90° x 70° | ||||
| ROTATABLE HORN | Yes | ||||
| CONNECTIONS | 4-Pin Euroblock/Phoenix Connector - 5.08mm Pitch (In/Thru) | ||||
| RIGGING POINTS | Yes - See Specification Document | ||||
| DIMENSIONS (H x W x D) | 440 x 270 x 270mm (17.3" x 10.6" x 10.6") | ||||
| WEIGHT | 11.1kg (24.5lb) | ||||
| SHIPPING WEIGHT | 11.5kg (25.4lb) | ||||
| SHIPPING DIMENSIONS (H x W x D) | 535 x 340 x 340mm (21” x 13.4” x 13.4”) | ||||
| CABINET MATERIAL & FINISH | Marine Plywood with Polyurea Coating | ||||
| GRILLE MATERIAL & FINISH | Steel mesh with Polyester Fiber Fabric | ||||
| RECOMMENDED POWER AMPLIFIER | Quest QX or QXD Amplifiers | ||||
| ACCESSORIES (INCLUDED) | Euroblock/Phoenix Connector, Cover Plate | ||||
| ACCESSORIES (AVAILABLE SEPARATELY) | Horizontal Bracket (HBRQi8) Vertical Bracket (VBRQi8) |
