Case Coupling System with a Rotary Recessed Latch.
The L788 Rotary Coupling System is a secure, built-in solution for stacking and transporting cases.

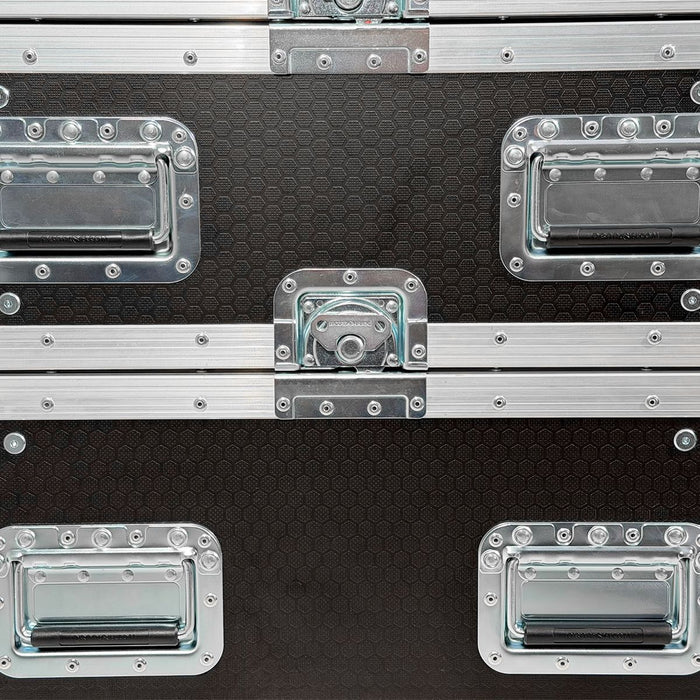

Featuring a recessed rotary latch with catch plate, this system locks stacked cases together as a seamless alternative to traditional over-latches.

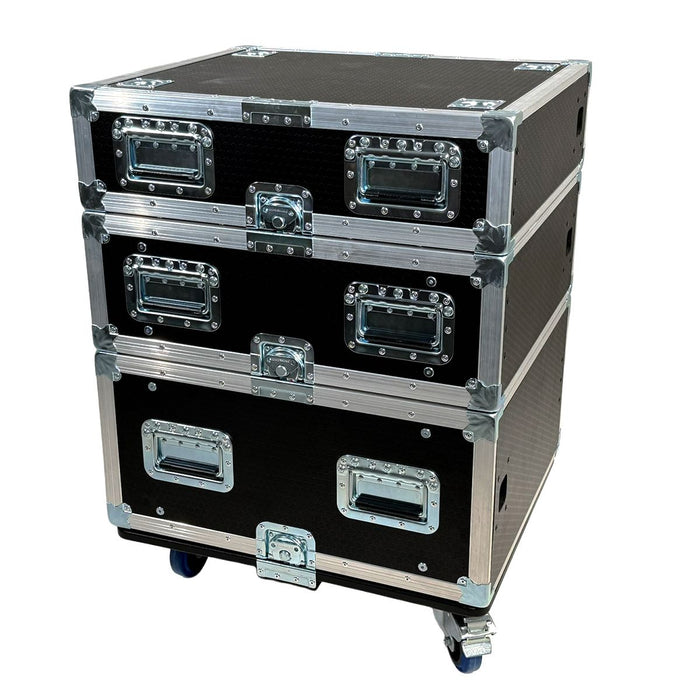

Ideal for flight cases, rack cases, and any stackable equipment. This system can be used with modified wheel dolly boards for easy mobility with our range of castors.

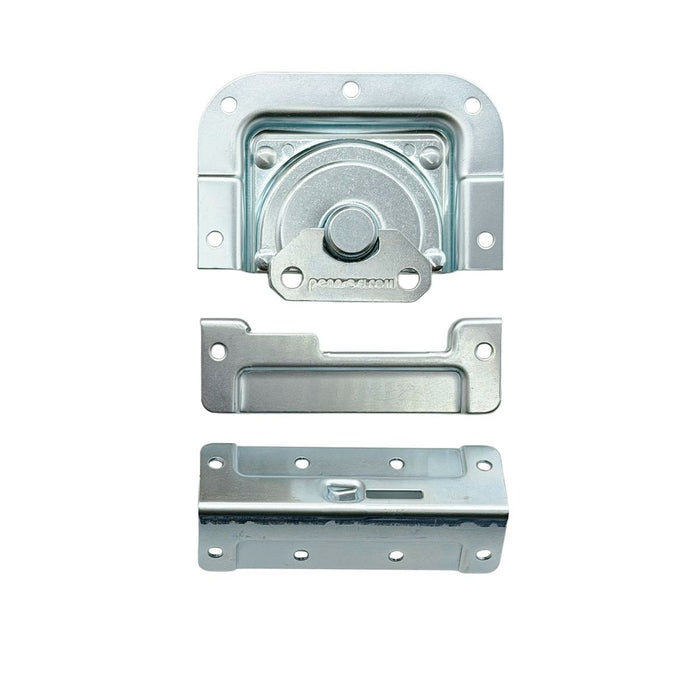

System Includes:

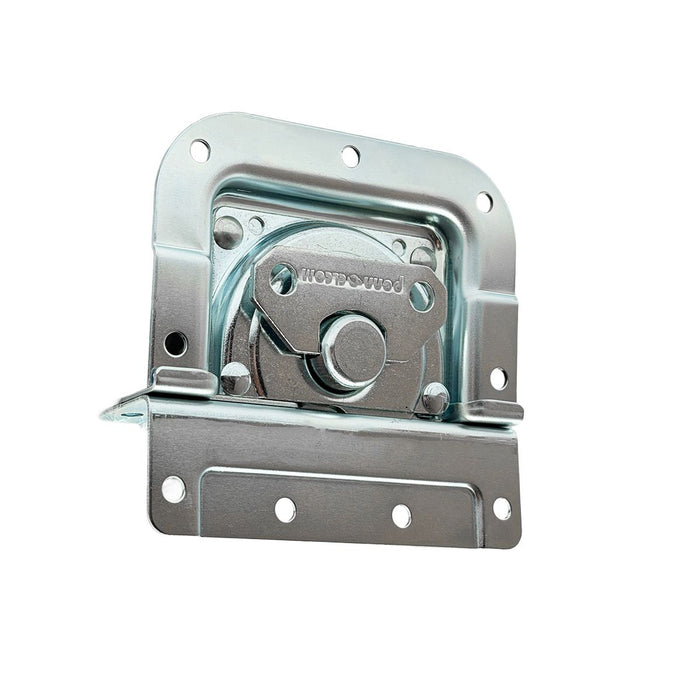

1 x Rotary latch
1 x Catch plate
1 x Latch cover
Key Features:

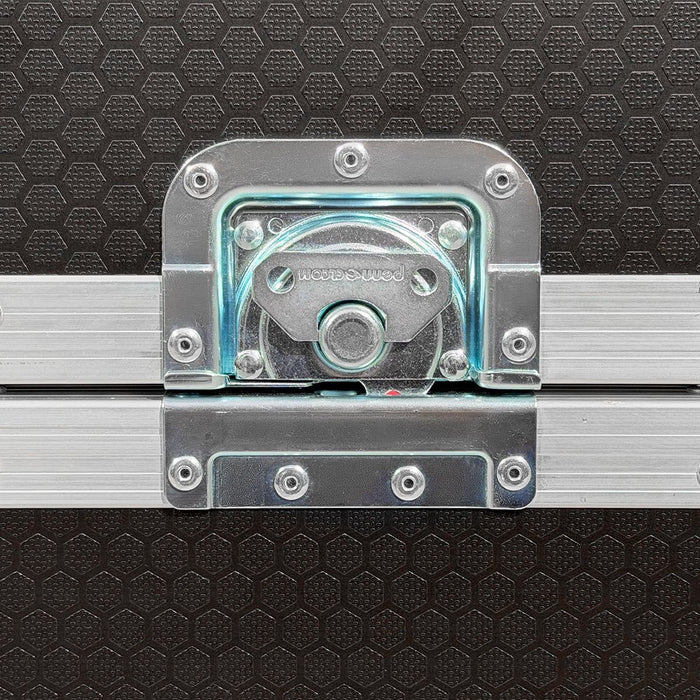

- Recessed, flat latch design sits flush with the case surface

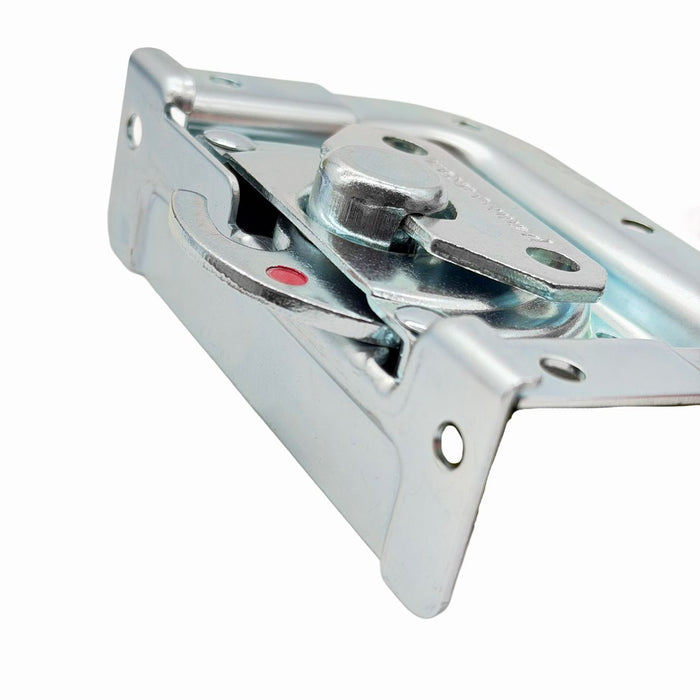

- Turn-to-lock mechanism for fast, secure stacking
- Heavy-duty steel construction
- Increased stability for stacked cases during transport and storage
Only compatible with 30mm single angle or double angle extrusions (not suitable for edge extrusions)
It is recommended that you use F1686 Medium Rubber Foot and D0650 Zinc Lid Dish for Rubber Foot to ensure a secure, tight stacking fit. We recommend buying L788-KIT as the complete Rotary Coupling System Kit.
Material: Steel
Finish: Zinc

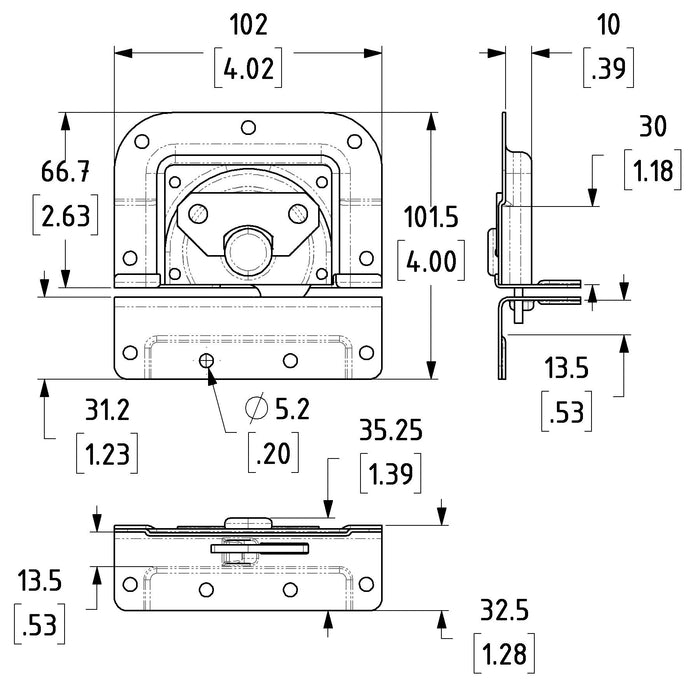

Overall Length: 102mm
Overall Width: 96.7mm
Top Half: 31.2mm
Bottom Half: 65.5mm
Offset (Bottom Half): 30mm
Depth: 31.2mm
Material Thickness: 1.2mm
Mounting Holes: 15 x 5.2mm
Overall System Weight: 0.240kg
Latch Weight: 0.157kg
Catch Plate Weight: 0.053kg
Latch Cover Weight: 0.026kg
| Dish Depth | 10mm |
|---|---|
| Length | 10.2cm |
| Width | 96.7mm |
| Offset | 30mm |
| Lockable | No |
| Material | 1.2mm Steel |
| Weight | 240g |
| Finish | Zinc |
