***Price Is Per Meter***
Maybe the smallest ???star quad??? of all times ???

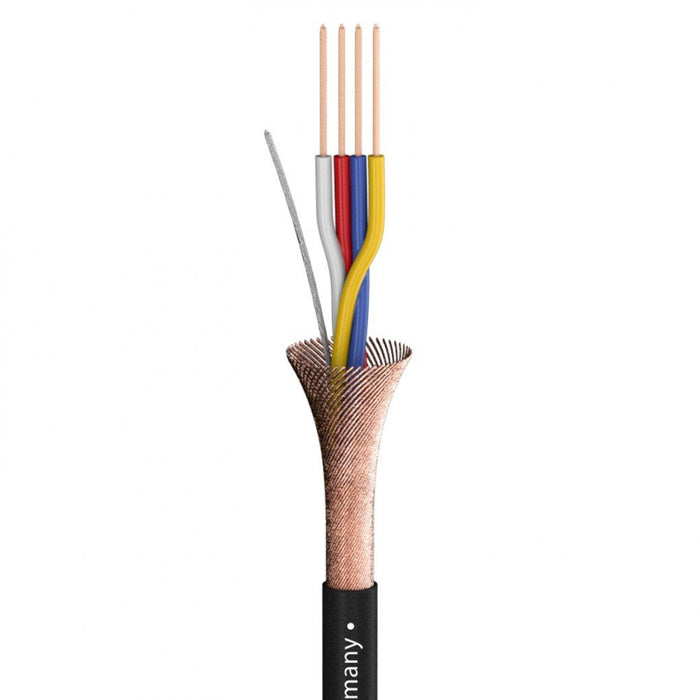

Is called SC-CICADA 4 with an outside diameter of merely 3.4mm (0.13 in.). Technically this cable is based on the very successful SC-CICADA SO-D14 variant, but instead of two, it has now four wires arranged in a star shape, yet remains just as flexible and top-performing. In a crossover wiring this version delivers extremely good electrical values, especially when compared to traditional microphone cables. Like the SC-CICADA SOD-14, the SC-CICADA 4 also features a robust, notch-resistant and sweat absorbing PUR Master Blend outerjacket ??? ideal for wiring up fitness gyms -, a tight spiral shielding with 95 % coverage and also a pre-stranded drain wire which makes cable assembly a lot easier and gives the cable an additional kink protection and a high tensile strength. The SC-CICADA 4 is the perfect microphone cable for use with mini XLR plugs, for fully assigned MIDI and DIN cables or as a compact patch cable. It is recommended e.g. for the internal wiring in racks or audio components, as feed line for clip or ear microphones or also for manufacturing high-grade adapter cables.
Advantages:
- Super flexible due to fine CU litz construction
- Easy to handle owing to the extra drain wire (0.22 mm??)
- Tight spiral screen with 95 % coverage for excellent shielding
- Durable and notch-resistant due to the sturdy PUR jacket
Application:
- Interior wiring of mixing consoles, racks, and other audio
components - For connecting mini XLRs, mini jacks, fully assigned MIDI and DIN cables
- Flexible cable for clip-on microphones, earphones, speaker units, etc.
- Assembly of adapter cable
Specifications:
| Article number | 200-0461 |
|---|---|
| Name | SC-CICADA 4 |
| EAN | 4049371360630 |
| Properties | OFC oxygen free copper |
| Properties | PUR Master Blend |
| Properties | Analog |
| Application area | Mobile outdoor / indoor |
| Application area | Installation |
| Application | Patch & Microphone Cable |
| Colour | black |
| Colour detailed | black |
| Signal transmission | symmetrical |
| Construction | (4LI2Y0,14mm??)D11Y |
| Jacket material | PUR Master-Blend |
| Jacket ?? [mm] | 3,40 |
| Inner conductor (audio) | 4 |
| Inner conductor (audio) [mm??] | 0,14 |
| Inner conductor ?? (audio) [mm] | 0,42 |
| AWG (audio) | 26 |
| Shielding | Copper spiral shielding + filler strand, tin-plated (0.22 mm??) |
| Copper strands (audio) | 18 |
| Copper strand ?? (audio) [mm] | 0,10 |
| Conductor insulation material | PE |
| Wire insulation material (audio) | PE |
| Conductor insulation ?? [mm] | 0,90 |
| Conductor insulation ?? (audio) [mm] | 0,90 |
| Weight per 1 m [g] | 20 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,08 |
| Style variant | round |
| Packing | 100 m spool |
| Temperature min. [??C] | -25 |
| Temperature max. [??C] | 70 |
| Width [mm] | 3,4 |
| Height [mm] | 3,4 |
| Capac. cond./cond. per 1 m (audio) [pF] | 75 |
| Capacity wire/wire at 1 ft. (audio) [pF] | 22,86 |
| Capac. cond./shield. per 1 m (audio) [pF] | 140 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] | 42,672 |
| Insulation resist. per 1 km [G??] | 1 |
| Insulation resist. per 1000 feet [G??] | 0,3048 |
| Insulation resist. per 1 km (audio) [G??] | 1 |
| Insulation resist. per 1000 feet (audio) [G??] | 0,3048 |
| Conductor resistance per 1 km [??] | 145 |
| Conductor resistance per 1000 ft. [??] | 44,196 |
| Conductor resistance per 1 km (audio) [??] | 145 |
| Conductor resistance per 1000 ft. (audio) [??] | 44,196 |
| Shield. resistance per 1 km [??] | 39 |
| Shield. resistance per 1000 ft. [??] | 11,8872 |
| Old article number | 999-0001-329 |
