***Price Is Per Meter***

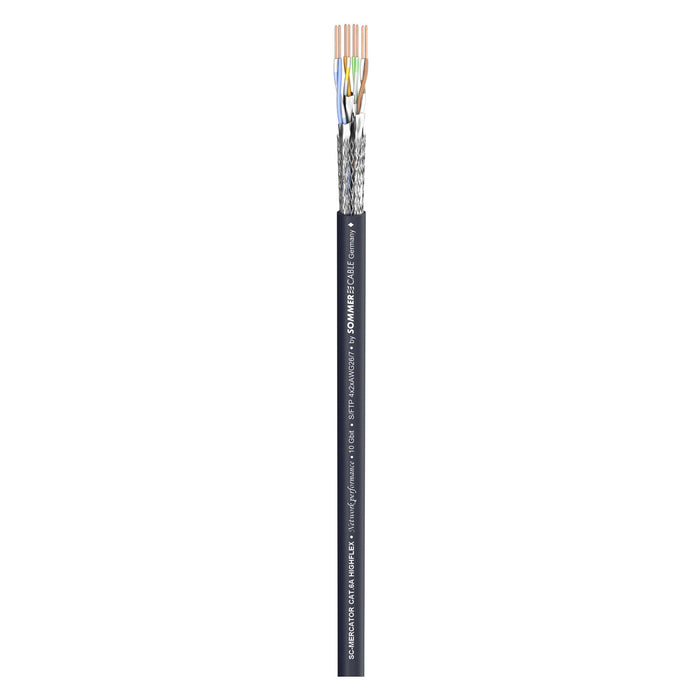

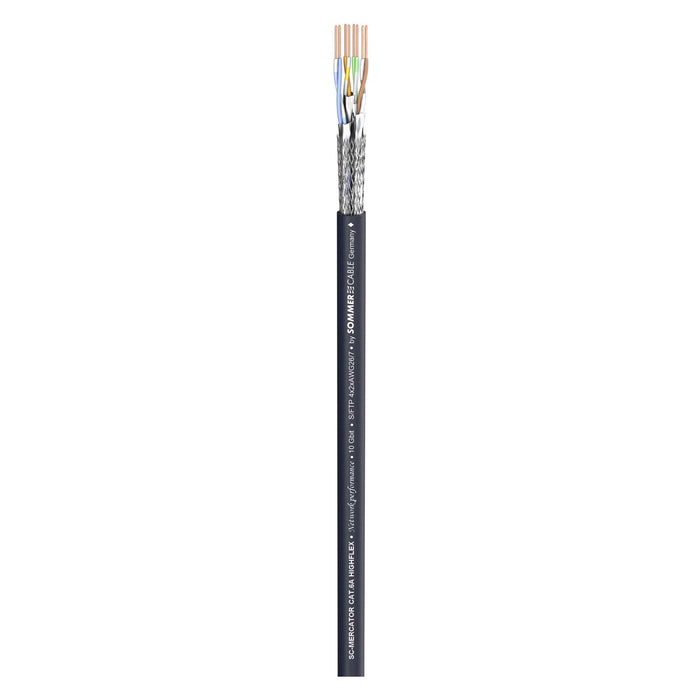

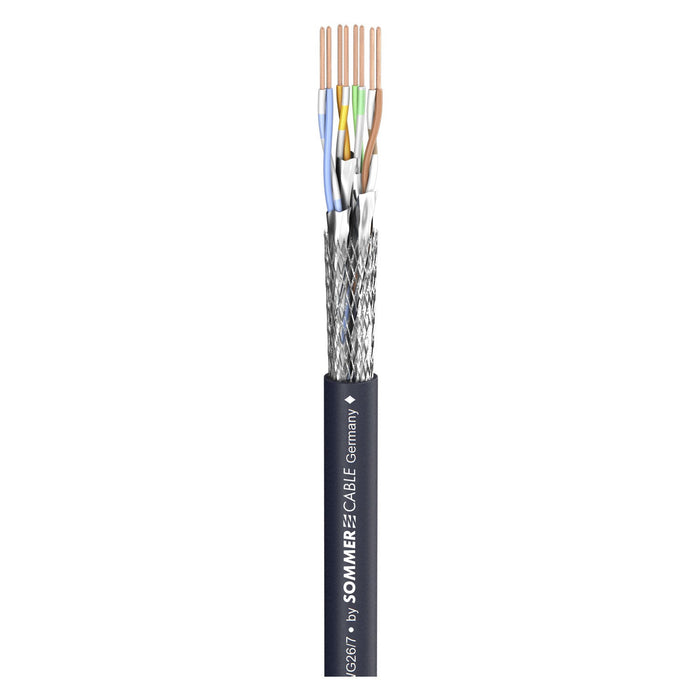

Cat.6a SC-MERCATOR CAT.6a highflex; PVC; black, Ø 6,20 mm
| Article number | 580-0401 |
|---|---|
| Name | SC-MERCATOR CAT.6a highflex |
| EAN | 4049371446723 |
| Properties | OFC oxygen free copper |
| Properties | Strong PVC-jacket |
| Properties | Digital 110 Ω AES / EBU |
| Application area | Installation |
| Application area | Mobile outdoor / indoor |
| Application area | Studio / Broadcast |
| Application area | Stage / live |
| Application | Cat.6a |
| Colour | black |
| Colour detailed | black |
| Construction | S/FTP 4x2x0,123mm² |
| Construction (network) | S/FTP 4x2x0,123mm² |
| Jacket material | PVC |
| Jacket Ø [mm] | 6,20 |
| Jacket Ø (network) [mm] | 6,20 |
| Number of Channels (network) | 1 |
| Inner conductor (network) | 8 |
| Inner conductor (network) [mm²] | 0,12 |
| AWG (network) | 26 |
| Shielding | AL / PT foil per pair + total braiding Alu-Magnesium 65 % |
| Shielding factor [%] | 65 |
| Conductor insulation material | Foam / Skin-PE |
| Conductor insulation Ø (network) [mm] | 0,96 |
| Weight per 1 m [g] | 32.66 |
| UV-resistant | yes |
| Style variant | round |
| Packing | 500 m spool |
| CAT-Type | CAT.6a |
| Temperature min. [°C] | -15 |
| Temperature max. [°C] | 60 |
| Width [mm] | 6,2 |
| Height [mm] | 6,2 |
| Capacity wire/wire at 1m (network) [pF] | 116 |
| Impedance [Ω] | 100 |
| Insulation resist. per 1 km [GΩ] | 0,5 |
| Insulation resist. per 1 km (network) [GΩ] | 0,5 |
| Conductor resistance per 1 km [Ω] | 139 |
