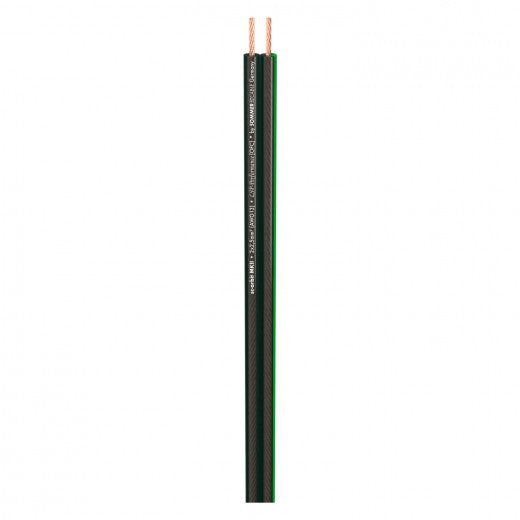

Sommer Cable - Orbit 225 MkII

***Price Is Per Meter***

You can easily hear the grass grow...

with our SC-Orbit 225 MKII, HighEnd. If you care for true, natural sound and dynamics, then the SC-Orbit 225 MKII, HighEnd is your cable. At the end of the audio signal path is the loudspeaker, but just how the music gets there is nowhere near bananas! You already have the good speaker, now all you need is the cable – and the difference is audible!
Here too we offer top quality with an attractive look, because the cables are often laid visibly – or invisibly, therefore as flat as possible is the name of the game. Due to a very tight litz stranding, the copper strand has the necessary surface for a clean transmission of the treble range. The individual wires are reverse-braided. So this cable will always return to its original position, even after extreme twisting.


  • Absolutely neutral transmission quality due to fine, tightly tranded copper litz wires
  • Highly flexible and easy to reel due to rubberlike PVC jacket
  • Noble finish with a black, transparent outer jacket
  • Very low impedance values due to special litz stranding


  • Connection to HiFi-High End Speaker Systems
  • Interior wiring of HiFi Loudspeakers and PA Systems
  • For fixed installation
  • Car hifi connection


Article number 425-0151
Name SC-Orbit 225 MKII, HighEnd
EAN 4049371002967
Properties OFC oxygen free copper
Properties Analog
Application area Installation
Application area Studio / Broadcast
Application Speaker Cable
Colour transparent
Colour black
Colour detailed black transparent
Construction 2LIY2,50mm²
Jacket material PVC
Jacket Ø [mm] 0,00
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm²] 2,50
Inner conductor Ø (audio) [mm] 1,78
AWG (audio) 13
Copper strands (audio) 651
Copper strand Ø (audio) [mm] 0,07
Weight per 1 m [g] 90
UV-resistant yes
Fire load per m [kWh] 0,17
Style variant twin
Packing 100 m spool
Temperature min. [°C] -30
Temperature max. [°C] 70
Width [mm] 10,2
Height [mm] 4,8
Capac. cond./cond. per 1 m (audio) [pF] 60
Capacity wire/wire at 1 ft. (audio) [pF] 18,288
Insulation resist. per 1 km [GΩ] 0,01
Insulation resist. per 1000 feet [GΩ] 0,003
Insulation resist. per 1 km (audio) [GΩ] 0,01
Insulation resist. per 1000 feet (audio) [GΩ] 0,003
Conductor resistance per 1 km [Ω] 7,8
Conductor resistance per 1000 ft. [Ω] 2,3774
BPVo-Euroclass Fca
