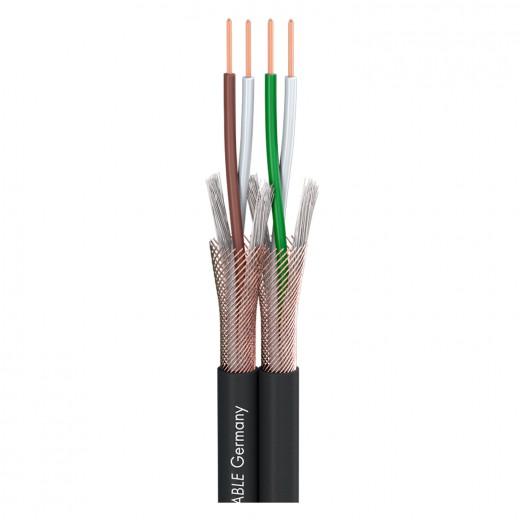

Sommer Cable - Peacock MkII - Black

***Price Is Per Meter***

Two friends we must be...

and fit into two connectors. Or into three - or why not even four? You can do a lot with this cable. But primarily it will be used as a stereo cable for microphones and for manufacturing RCA and Y-patch cables. Each of its wire pairs is protected individually by a tight helical shielding with 95 % coverage and can be separated anytime. The single line will fit into every jack, XLR, and RCA connector.


  • Highly flexible due to the use of a cold-resistant and soft PVC jacket
  • Multiple applications, as the individual wires can be separated anytime


  • Wiring of stereo microphones
  • Assembly of insert cable


Article number 200-0551
Name SC-Peacock MKII
EAN 4049371000512
Properties OFC oxygen free copper
Properties Analog
Properties Digital 110 Ω AES / EBU
Application area Studio / Broadcast
Application area Stage / live
Application area Installation
Application Patch & Microphone Cable
Colour black
Colour detailed black
Signal transmission symmetrical
Construction [2(2LI2Y0,22mm²)DY]Y
Jacket material S-PVC
Number of Channels (AES/EBU, DMX) 2
Inner conductor (AES/EBU, DMX) 2
Inner conductor (AES/EBU, DMX) [mm²] 0,22
Inner conductor Ø (AES/EBU, DMX) [mm] 0,53
Shielding Copper spiral sleeve
Shielding factor [%] 95
Copper strands (AES/EBU, DMX) 28
Copper strand Ø (AES/EBU, DMX) [mm] 0,10
Conductor insulation material Foam / Skin-PE
Conductor insulation Ø [mm] 1,30
Weight per 1 m [g] 53,6
UV-resistant yes
Fire load per m [kWh] 0,18
Style variant twin
Packing 100 m spool
Temperature min. [°C] -30
Temperature max. [°C] 70
Width [mm] 9,2
Height [mm] 4,5
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 70
Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 21,336
Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 125
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 38,1
Impedance [Ω] 110
Insulation resist. per 1 km [GΩ] 0,5
Insulation resist. per 1000 feet [GΩ] 0,1524
Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 0,5
Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,1524
Conductor resistance per 1 km [Ω] 90
Conductor resistance per 1000 ft. [Ω] 27,432
Shield. resistance per 1 km [Ω] 36
Shield. resistance per 1000 ft. [Ω] 10,9728
BPVo-Euroclass Fca
