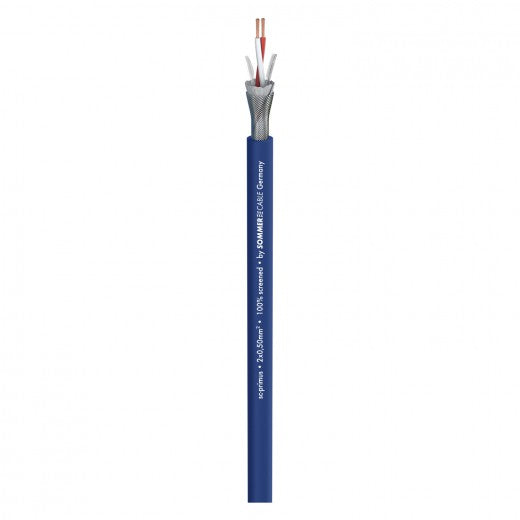

Sommer Cable - Primus - Blue

$7.99
SKU 200-0152
***Price Is Per Meter***

The marathon runner...

Will have a hard time and must run. Likewise our cables must cover the long distances at the sports arena. But they will lie and not run. So due to its cross-section 2 x 0,50 mm??, this cable is also ideal for theaters, public buildings, etc. Owing to the 100 % shielding and the thick outer jacket, the??SC-Primus??is also recommended for installations at discotheques, because neither the aggressive nicotine nor wild temperature fluctuations can hardly do any harm to this cable. Gigging musicians swear by this cable, rental shop owners prefer the??SC-Primus??because of its durability and a slight bounce, making manual winding easy.

Advantages:

  • Optimum transmission quality even with excess lengths due to the large wire gauge of 2 x 0,50 mm??
  • 100 % shielding due to dense helical copper mesh screen and extra metallised fleece
  • Great durability due to the thick PVC with a diameter of 6,50 mm
  • Easy to reel and good tensile strength

Application:

  • Broadcasting and OB van technology, building installation
  • Professional studio technology
  • Tough stage application
  • Installation in discos, coffee shops, at sporting events

Specifications:

Article number 200-0152
Name SC-Primus
EAN 4049371001977
Properties OFC oxygen free copper
Properties Analog
Application area Mobile outdoor / indoor
Application area ELA 100 V
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application Microphone Cable
Colour blue
Colour detailed blue
Signal transmission symmetrical
Construction (2LI2Y0,50mm??)(ST)DY
Jacket material PVC
Jacket ?? [mm] 6,50
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 0,50
Inner conductor ?? (audio) [mm] 0,80
AWG (audio) 20
Shielding Copper spiral sleeve tin-plated + metalic fleece
Shielding factor [%] 100
Copper strands (audio) 28
Copper strand ?? (audio) [mm] 0,15
Conductor insulation material PE
Conductor insulation ?? [mm] 1,65
Weight per 1 m [g] 53
Fire load per m [kWh] 0,23
Style variant round
Packing 100 m spool
Packing 500 m spool
Temperature min. [??C] -25
Temperature max. [??C] 70
Width [mm] 6,5
Height [mm] 6,5
Capac. cond./cond. per 1 m (audio) [pF] 80
Capacity wire/wire at 1 ft. (audio) [pF] 24,384
Capac. cond./shield. per 1 m (audio) [pF] 145
Capacity wire/electic screen at 1 ft. (audio) [pF] 44,196
Insulation resist. per 1 km [G??] 1
Insulation resist. per 1000 feet [G??] 0,3048
Insulation resist. per 1 km (audio) [G??] 1
Insulation resist. per 1000 feet (audio) [G??] 0,3048
Conductor resistance per 1 km [??] 37
Conductor resistance per 1000 ft. [??] 11,2776
Shield. resistance per 1 km [??] 27
Shield. resistance per 1000 ft. [??] 8,2296
BPVo-Euroclass Fca
