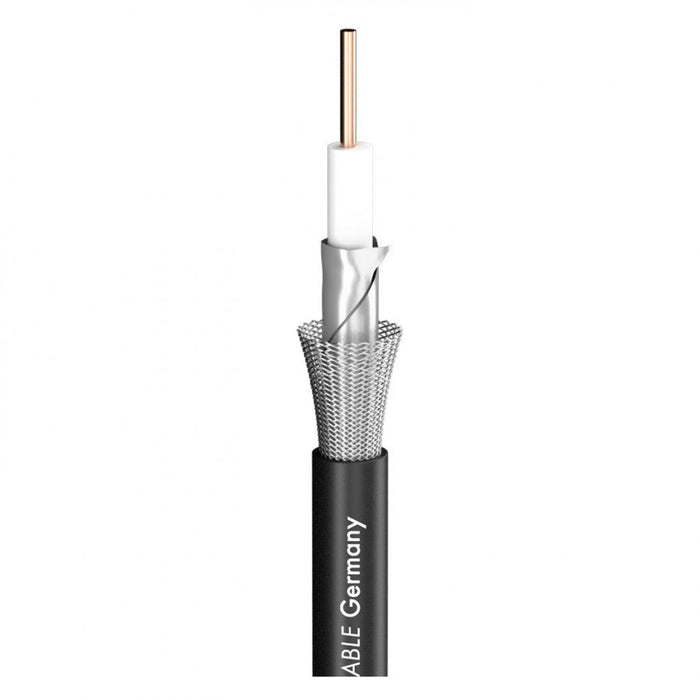

Sommer Cable - RG58C/U LL - Coax Cable 50 Ohm

$7.99
SKU RG58C/U LL

***Price Is Per Meter***

Suitable Connector - HiCon - BNC58LL

Dance at all parties...

this cable can do it. Just look at the many applications! And our RG cables are famous for their aging resistance and durability. RG (radio guide) cables have either one or two cross mesh screens, designed according to the American MIL-C-17 standard. This standard originally developed for the army, guarantees excellent and consistent manufacturing quality and durability. RG cables have been created for a vast number of applications in high frequency technology, electronics, and data transmission.

Advantages:

  • Extremely long life due to age-resistant jacket
  • Consistent and precise electrical values
  • Easy handling
  • Suitable for all standardised connectors

Application:

  • Data transmission
  • HF technology
  • Antenna construction
  • For fixed installations
  • Hifi connections
  • Computer technology
Article number 600-0401LL
Name SC-Classic Series MKII
EAN 4049371003438
Properties OFC oxygen free copper
Properties Analog
Application area Installation
Application area Studio / Broadcast
Application area ELA 100 V
Application RG/U Coax
Colour black
Colour detailed black

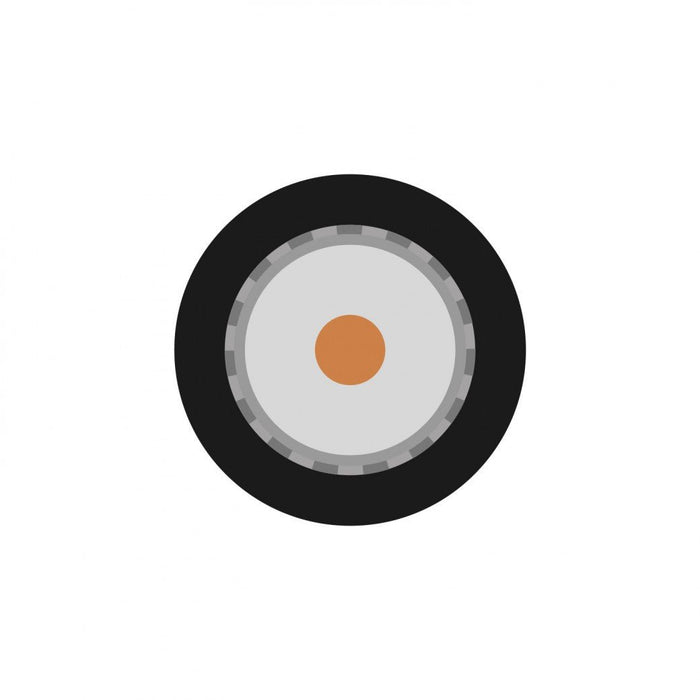

Construction 02YSCY
Jacket material PVC
Jacket ? [mm] 5,00
Number of Channels (video) 1
Inner conductor (video) 1
Inner conductor (video) [mm?] 0,82
Inner conductor ? (video) [mm] 1,02
AWG (video) 18
Shielding Copper braiding tin-plated + AL-foil
Shielding factor [%] 92
Copper strands (video) 1
Copper strand ? (video) [mm] 1,02
Conductor insulation material Foam / Skin-PE
Conductor insulation ? [mm] 2,95
Weight per 1 m [g] 38
UV-resistant yes
Fire load per m [kWh] 0,15
Style variant round
Packing 100 m ring
Packing 500 m spool
Velocity factor 0,66
Temperature min. [?C] -25
Temperature max. [?C] 70
RG-Type RG58 C/U LL
Width [mm] 5
Height [mm] 5
Capacity wire/electic screen at 1m (video) [pF] 82
Capacity wire/electic screen at 1 ft. (video) [pF] 24,9936

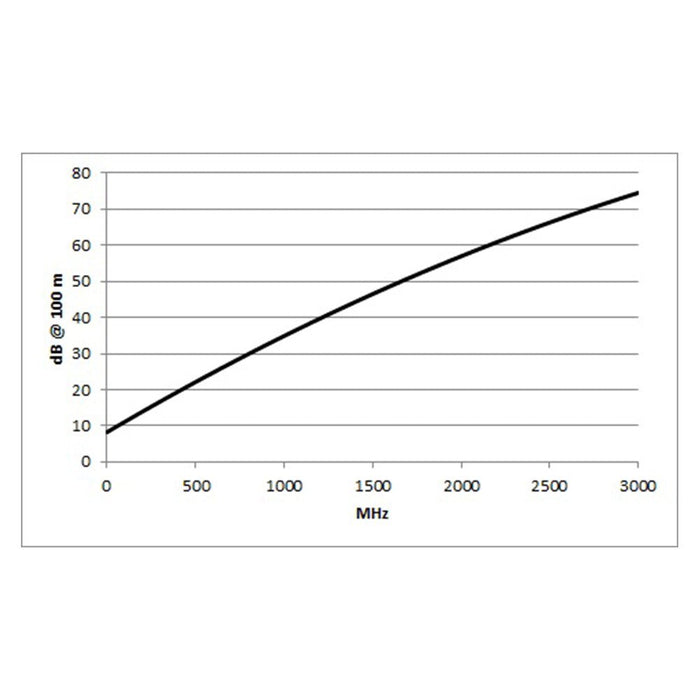

Damping at 100 MHz (100m & 20? C) [dB] 10,3
Damping at 100 MHz (100 ft. & 20 ?C / 68 ?F) [dB] 3,1394
Damping at 200 MHz (100m & 20? C) [dB] 15,2
Damping at 200 MHz (100 ft. & 20 ?C / 68 ?F) [dB] 4,633
Damping at 470 MHz (100m & 20? C) [dB] 21,3
Damping at 470 MHz (100 ft. & 20 ?C / 68 ?F) [dB] 6,4922
Damping at 862 MHz (100m & 20? C) [dB] 31,4
Damping at 862 MHz (100 ft. & 20 ?C / 68 ?F) [dB] 9,5707
Impedance [?] 50
BPVo-Euroclass Fca
