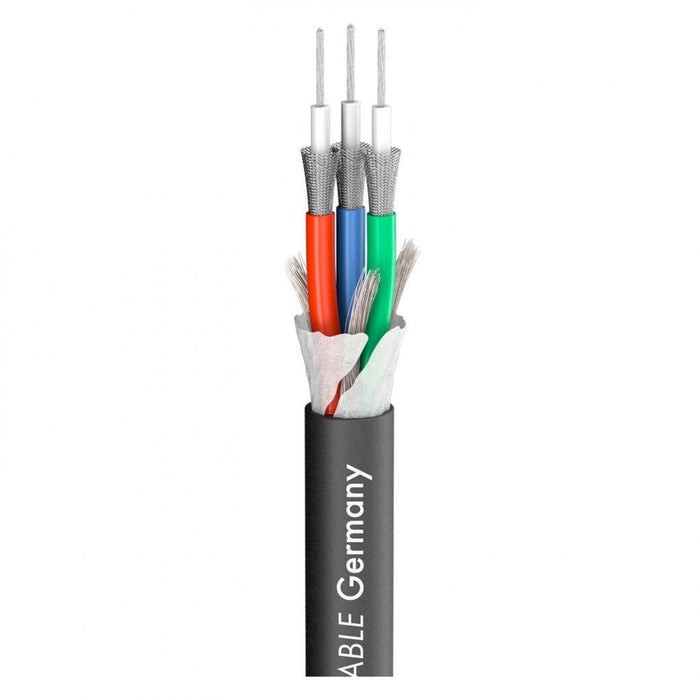

Sommer Cable - Transit Mini 3 Core

Currently Out Of Stock
$14.99
SKU 600-0251-03
***Price Is Per Meter***

Like silk and satin...

that???s how the outer jacket of the??Transit MINI Flex??feels in your hands. This is achieved through the use of a special jacket mixture made of an extremely coldresistant material. It makes the cable highly flexible and sturdy. Each wire is shielded by a dense cross mesh. Both the litz wires and the screen are tinned and very easy to work with. Wire colours according to RGB: red, green, blue, black, and white.

Advantages:

  • Highly flexible, easy to reel and cold-resistant due to fine single litz wires and a special jacket mixture, compact
  • Excellent shielding, low damping
  • Very dependable, tread-resistant and durable due to the viscose filler and tight litz stranding

Application:

  • Flexible video and monitor cable for professional
    demands
  • Mobile applications with high bending cycles and for inconspicuous fixed installations

Specifications:

Article number 600-0251-03
Name Transit MINI Flex
EAN 4049371001472
Properties Digital 75 ??
Properties OFC oxygen free copper
Properties Analog
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application area Stage / live
Application area Installation
Application video cable
Colour black
Colour detailed black

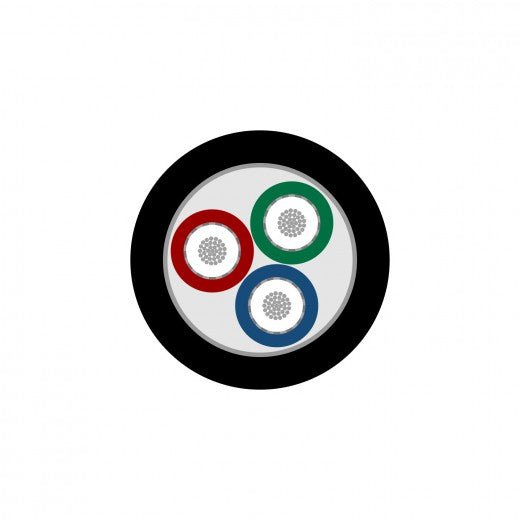

Construction (3LI2Y0,32mmCY)Y
Jacket material Antistatic-PVC
Jacket ?? [mm] 8,20
Number of Channels (video) 1
Inner conductor (video) 3
Inner conductor (video) [mm??] 0,08
Inner conductor ?? (video) [mm] 0,32
AWG (video) 28
Shielding Copper braiding tin-plated
Shielding factor [%] 95
Copper strands (video) 7
Copper strand ?? (video) [mm] 0,12
Conductor insulation material Foam / Skin-PE
Conductor insulation ?? [mm] 1,60
Weight per 1 m [g] 78
UV-resistant yes
Fire load per m [kWh] 0,27
Style variant round
Packing bulk stock
Velocity factor 0,66
Temperature min. [??C] -20
Temperature max. [??C] 70
Width [mm] 8,2
Height [mm] 8,2
Capacity wire/electic screen at 1m (video) [pF] 56
Capacity wire/electic screen at 1 ft. (video) [pF] 17,0688

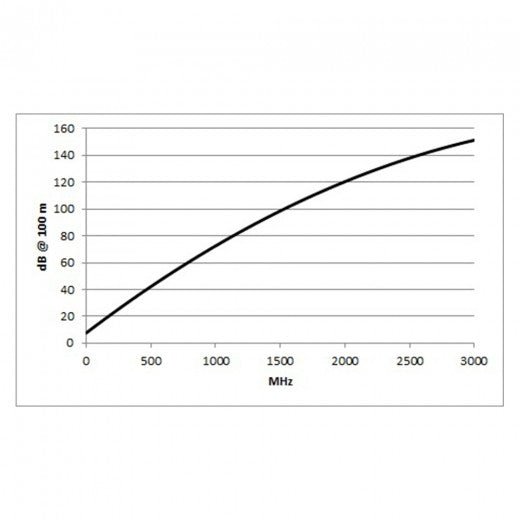

Damping at 5 MHz (100m & 20?? C) [dB] 4,3
Damping at 5 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 1,3106
Damping at 50 MHz (100m & 20?? C) [dB] 15
Damping at 50 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 4,572
Damping at 100 MHz (100m & 20?? C) [dB] 21,5
Damping at 100 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 6,5532
Damping at 1485 MHz (100m & 20?? C) [dB] 94,5
Damping at 1485 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 28,8036
Damping at 3000 MHz (100m & 20?? C) [dB] 148
Damping at 3000 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 45,1104
Impedance [??] 75
Return loss [dB] 20
BPVo-Euroclass Fca
