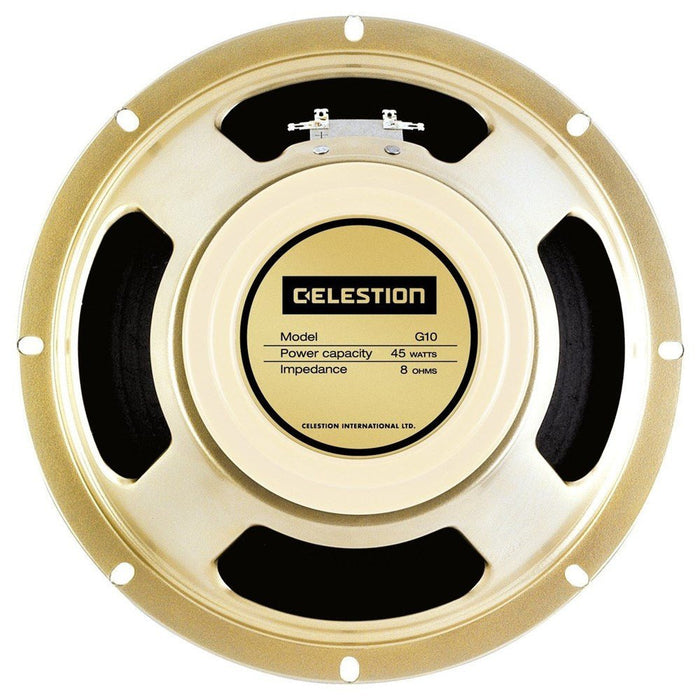

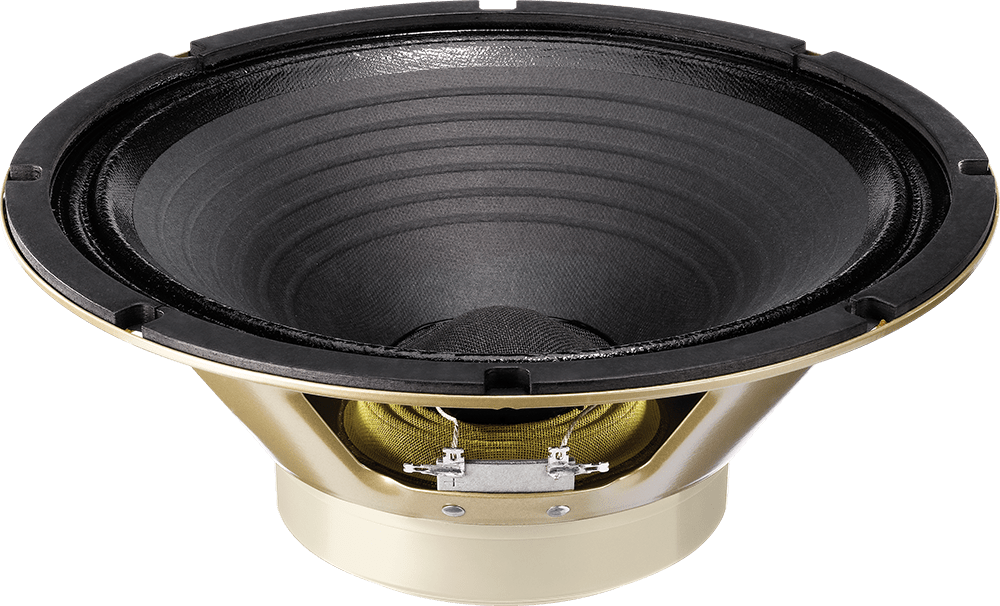

The new G10 Creamback packs everything guitar players love about Creamback speakers into a 10-inch format. Hand-built in the UK using the same production methods and materials developed for the 12-inch models, the G10 Creamback uses a ceramic magnet and a 1.75-inch voice coil to deliver 45-watt power handling. With all the punch and dynamics typical of a 10, its overall tone is warm, expressive, detailed and well-balanced.
General Specifications
| Nominal diameter | 10", 254mm |
| Power rating | 45W |
| Nominal impedance | Available 8Ω or 16Ω |
| Sensitivity | 96dB |
| Chassis type | Pressed steel |
| Voice coil diameter | 1.75", 44.5mm |
| Voice coil material | Round copper |
| Magnet type | Ceramic |
| Magnet weight | 20oz |
| Frequency range | 95-5500Hz |
| Resonance frequency, Fs | 98Hz |
| DC resistance, Re | Available 6.4Ω or 12.05Ω |
Mounting Information
| Cut-out diameter | 9.0", 229mm |
| Diameter | 10.0", 254m |
| Magnet structure diameter | 4.9", 124mm |
| Mounting slot PCD | 9.6", 245mm |
| Number of mounting slots | 8 |
| Overall depth | 4.0", 102mm |
| Unit weight | 3.5lb, 1.6kg |
