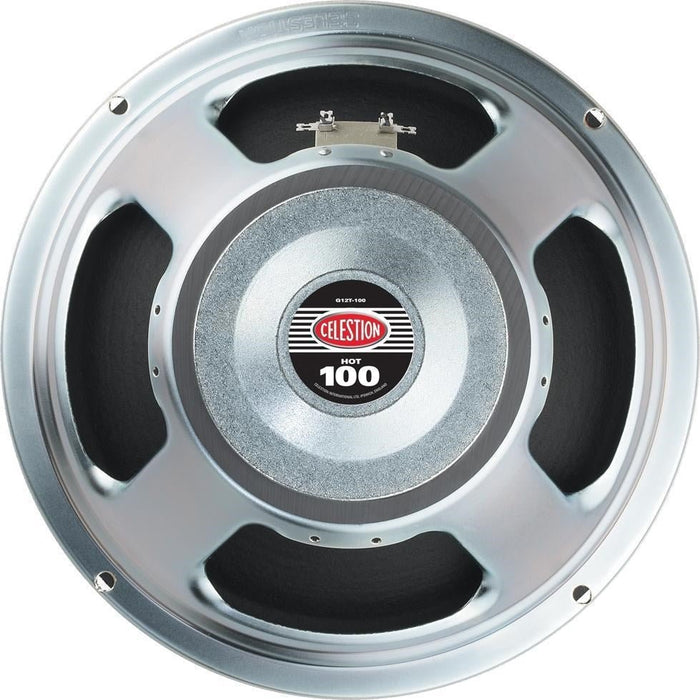

Celestion - G12T 'Hot 100'

SKU G12T 'Hot 100'-16 - Discontinued

With a massive 100W power rating, this speaker sits perfectly in high-power or hybrid amplifiers. The G12T Hot 100 voices a modern sound with a big bass presence.

General Specifications

Nominal diameter 12", 305mm
Power rating 100Wrms
Nominal impedance Available 4Ω, 8Ω or 16Ω
Sensitivity 97dB
Chassis type Pressed steel
Voice coil diameter 2", 50.8mm
Voice coil material Round copper
Magnet type Ceramic
Magnet weight 35oz, 0.99kg
Frequency range 80-5000Hz
Resonance frequency, Fs 86Hz
DC resistance, Re Available 3.4Ω, 7.4Ω or 14.83Ω

Mounting Information

Cut-out diameter 11.1", 283mm
Diameter 12.2", 309mm
Magnet structure diameter 5.8", 148mm
Mounting slot dimensions 0.31",7.9mm
Mounting slot PCD 11.7", 297mm
Number of mounting slots 4
Overall depth 4.9", 124mm
Unit weight 7.1lb, 3.2kg
