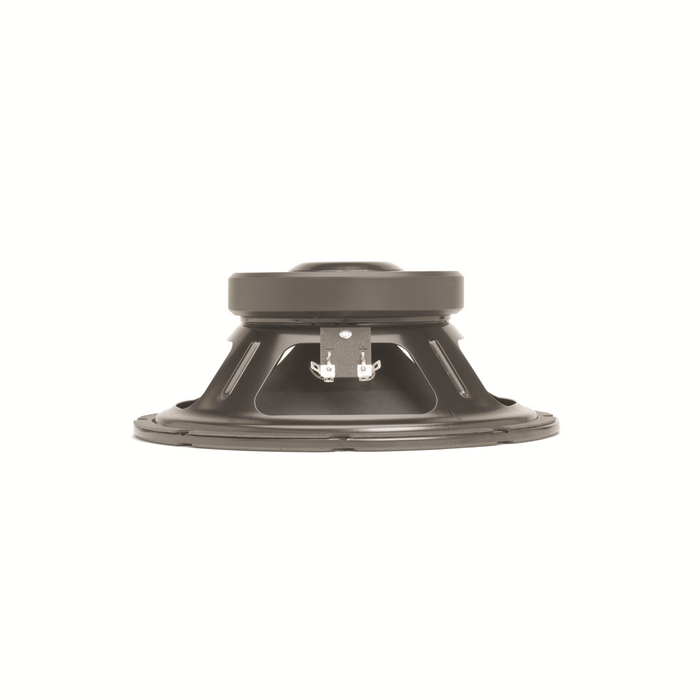

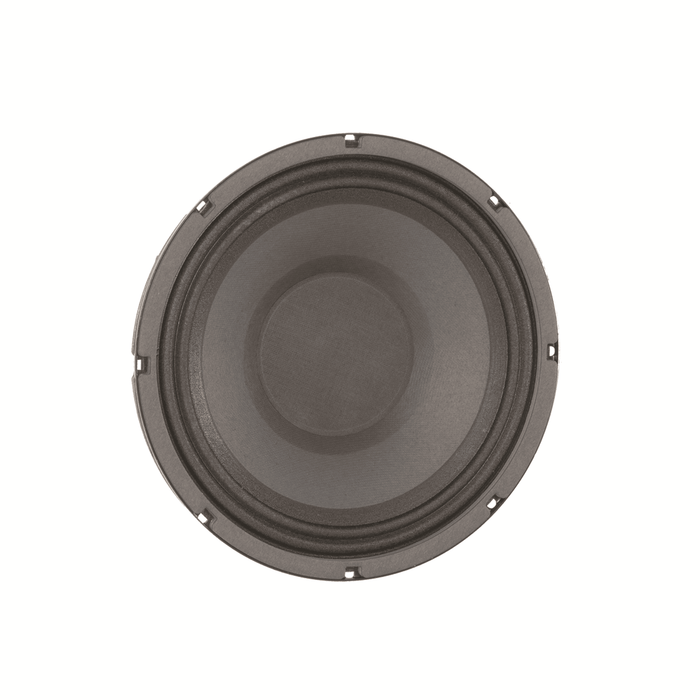

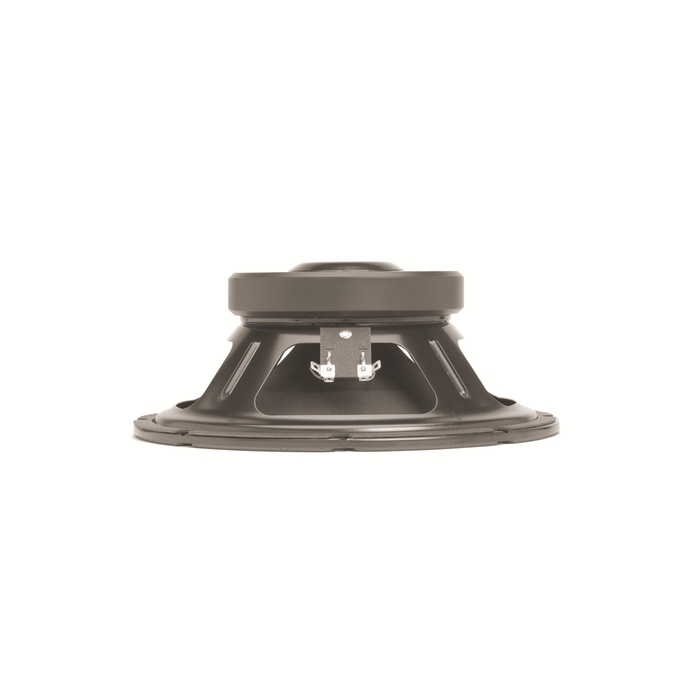

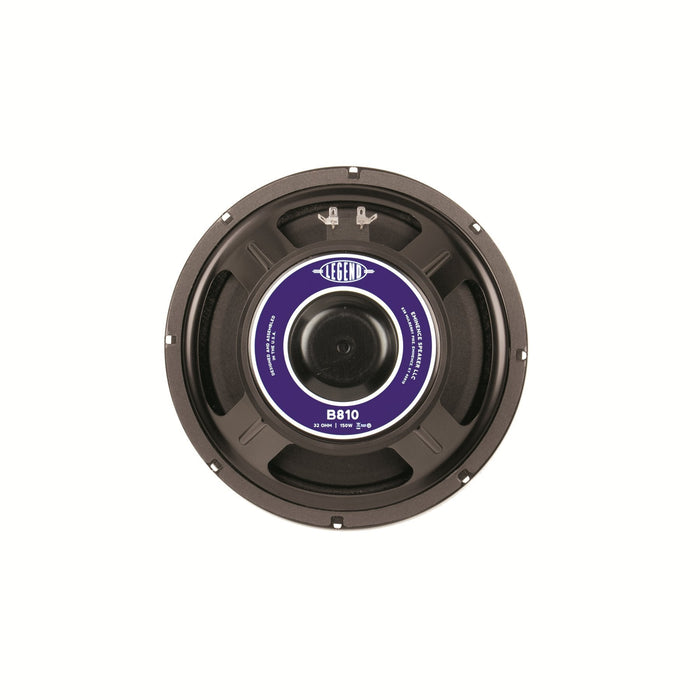

A 32 ohm, 10 inch bass guitar speaker offering classic sound with modern features. A perfect replacement for your 8x10 cabinet.
SPECIFICATION | |
Nominal Basket Diameter | 10", 254 mm |
Nominal Impedance* | 32?? |
Power Rating* | |
Program Power | 300 W |
Watts | 150 W |
Resonance | 52 Hz |

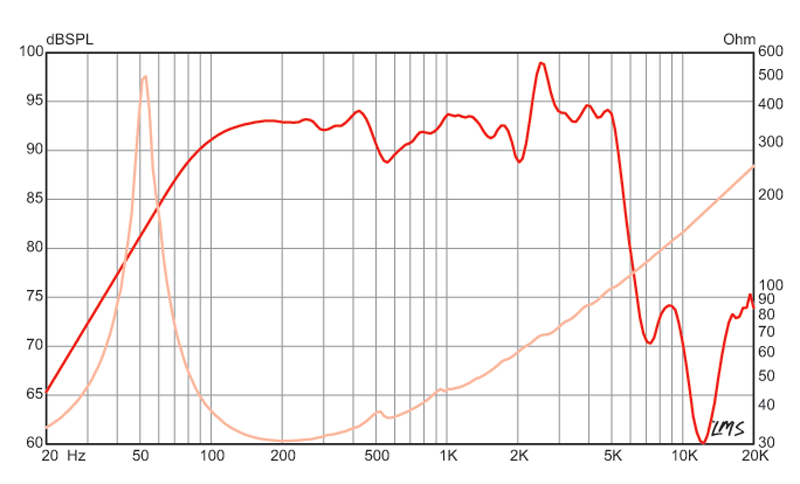

Usable Frequency Range | 49 Hz - 5.1 kHz |
Sensitivity* | 92.7 dB |
Magnet Weight | 30 oz. |
Gap Height | 0.312", 7.9 mm |
Voice Coil Diameter | 2", 51 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 52 Hz |
DC Resistance (Re) | 27.5?? |
Coil Inductance (Le) | 2.72m H |
Mechanical Q (Qms) | 13.91 |
Electromagnetic Q (Qes) | 0.68 |
Total Q (Qts) | 0.65 |
Compliance Equivalent Volume (Vas) | 66.4 liters / 2.34 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 165.2 cc |
Mechanical Compliance of Suspension (Cms) | 0.39 mm/N |
BL Product (BL) | 17.7 T-M |
Diaphragm Mass Inc. Airload (MMs) | 24 grams |
Efficiency Bandwidth Product (EBP) | 77 |
Maximum Linear Excursion (Xmax) | 4.7 mm |
Surface Area of Cone (Sd) | 350.1 cm2 |
Maximum Mechanical Limit (Xlim) | 9.5 mm |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | Acceptable |
Vented | Acceptable |
Driver Volume Displaced | 0.039 cu.ft. / 1.1 liters |
Overall Diameter | 10.11", 256.8 mm |
Baffle Hole Diameter | 9.13", 231.9 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.23", 5.8mm |
Mounting Holes B.C.D. | 9.6", 243.8mm |
Depth | 4.08", 103.6 mm |
Net Weight | 6.7 lbs, 3.04 kg |
Shipping Weight | 7.9 lbs, 3.58 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Kapton former |
Magnet Composition | Ferrite magnet |
Core Details | Bumped |
Basket Materials | Pressed steel basket |
Cone Composition | Paper cone |
Cone Edge Composition | Cloth cone edge |
Dust Cap Composition | Zurette dust cap |
