Eminence - Screamin Eagle

Currently Out Of Stock
Original price $199.99
Current price $100.00
SKU SCREAMINEAGLE

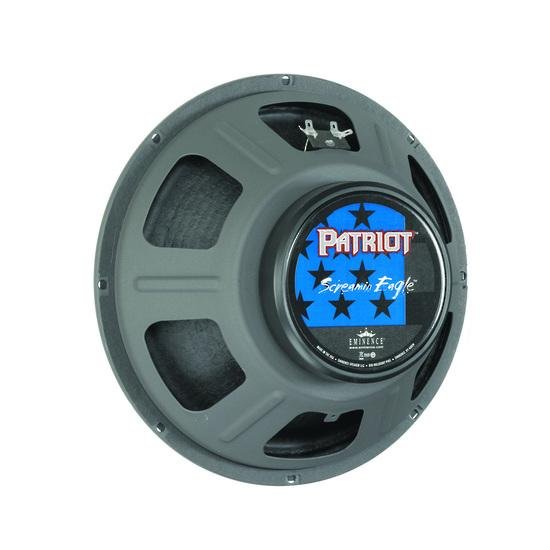

The Eminence Screamin Eagle guitar speaker is the way to go for soarin' solos and tight rhythm. Bright and articulate tone with screamin top end and tight bass. Good club speaker for American Blues and Rock.


Specification Nominal Basket Diameter 12", 304.8mm Nominal Impedance* 8 ohms Power Rating** Watts 50W Music Program N/A Resonance 79Hz Usable Frequency Range 80Hz - 5kHz Sensitivity*** 100.7dB Magnet Weight 38 oz. Gap Height 0.31", 7.92mm Voice Coil Diameter 1.75", 44.5mm Thiele & Small Parameters Resonant Frequency (fs) 79Hz DC Resistance (Re) 6.84 Coil Inductance (Le) 0.48mH Mechanical Q (Qms) 15.95 Electromagnetic Q (Qes) 0.6 Total Q (Qts) 0.58 Compliance Equivalent Volume (Vas) 51.5 liters / 1.82 cu.ft. Peak Diaphragm Displacement Volume (Vd) 64.4cc Mechanical Compliance of Suspension (Cms) 0.13mm/N BL Product (BL) 13.1 T-M Diaphragm Mass Inc. Airload (MMs) 30.2 grams Efficiency Bandwidth Product (EBP) 132 Maximum Linear Excursion (Xmax) 1.24mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A Mounting Information Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 122 cu.in. / 2 liters Overall Diameter 12.03", 305.5mm Baffle Hole Diameter 11.07", 281.1mm Front Sealing Gasket Fitted as standard Rear Sealing Gasket Fitted as standard Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.59", 294.3mm Depth 5.1", 130mm Net Weight 8.3 lbs, 3.8 kg Shipping Weight 10.2 lbs, 4.7 kgs Materials of Construction Coil Construction Copper voice coil Coil Former Paper former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap
