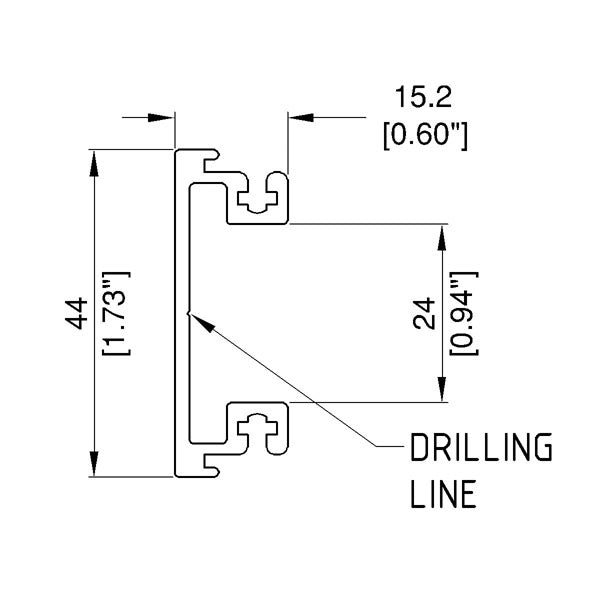

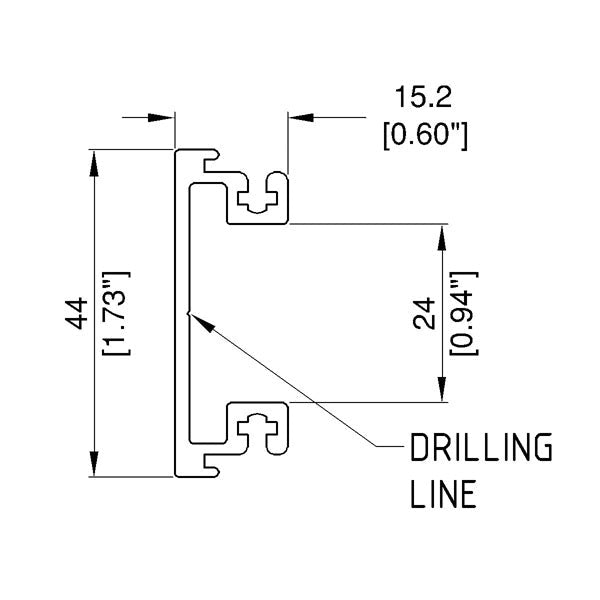

Frame extrusion, 1 unit high.

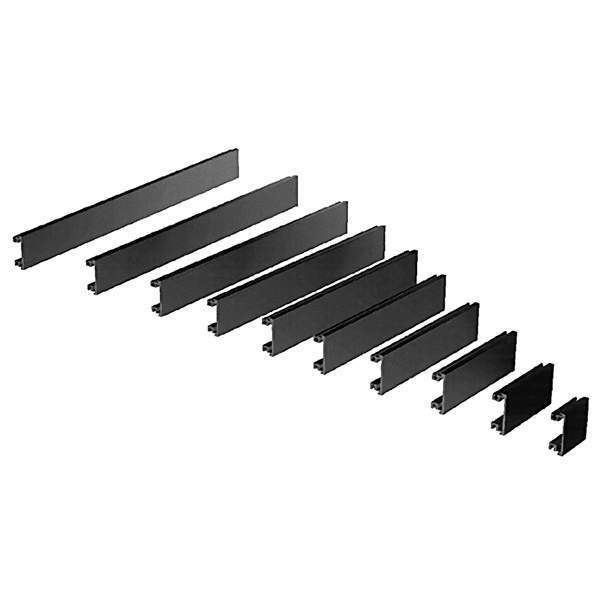

Available in 1 to 10 modules or 2m lengths.
Drilling line on inside center.
Material: Aluminium.
| Part No: | Module: | Length: | Weight: |
| 10101-20 | 1 Module | 44mm | 24g |
| 10102-20 | 2 Modules | 88mm | 48g |
| 10103-20 | 3 Modules | 132mm | 72g |
| 10104-20 | 4 Modules | 176mm | 96g |
| 10105-20 | 5 Modules | 220mm | 0.12kg |
| 10106-20 | 6 Modules | 264mm | 0.14kg |
| 10107-20 | 7 Modules | 308mm | 0.17kg |
| 10108-20 | 8 Modules | 352mm | 0.19kg |
| 10109-20 | 9 Modules | 396mm | 0.21kg |
| 10110-20 | 10 Mod (19" Rackmount) | 440mm | 0.23kg |
| 10145-20 | 2 Meter Length | 2m | 1.05kg |
