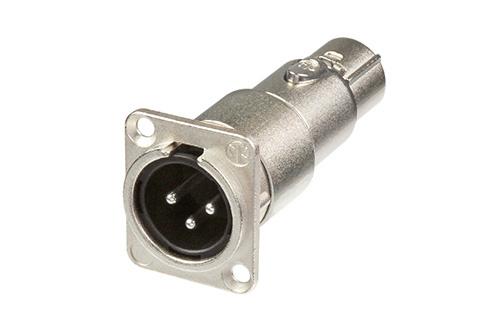

Neutrik -  NA3MDF - XLR male-female feedthrough adapter for panel mount.

Neutrik - NA3MDF - XLR male-female feedthrough adapter for panel mount.

Vendor
Neutrik
Regular price
$25.99
Sale price
$25.99
Tax included.
Quantity must be 1 or more

XLR male-female feedthrough adapter for panel mount.

Technical Information

Product
Title NA3MDF
Connection Type Adapter
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Chassis shape D
Material
Contact plating 2 µm Ag over 2 µm Ni
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
