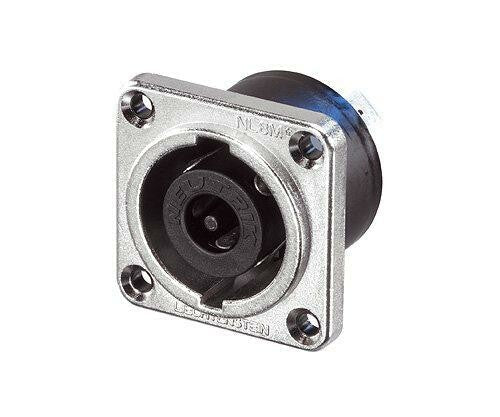

Neutrik - NLT8MPXX - 8-pole male chassis connector, Nickel housing, solder or ?" flat tabs.

by Neutrik
Currently Out Of Stock
$41.00
SKU NLT8MP

8-pole male chassis connector, Nickel housing, solder or ?" flat tabs

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Features & Benefits

  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Uses precise ?Quick Lock? system
    Mates with all currently available speakON products

Specifications:

Title NLT8MP
Connection Type speakON
Gender male
Electrical:
Contact resistance < 2 m? (after lifetime)
Dielectric strength 3 kVdc (peak)
Insulation resistance > 10 G?
Rated current per contact 40 A rms continuous
Rated current per contact 50 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical:
Lifetime > 5000 mating cycles
Wiresize
Locking device Quick Lock
Chassis shape square G-size flange
Layout four thru holes
Material:
Contact plating 4 ?m Ag
Insert Polyamide (PA 6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1) Ni
Contacts Spring Copper (CuSn0.2)
Environmental:
Flammability UL 94 HB
Protection class IP 50 (mated condition)
Solderability Complies with IEC 68-2-20
Temperature range -30 ?C to +80 ?C
