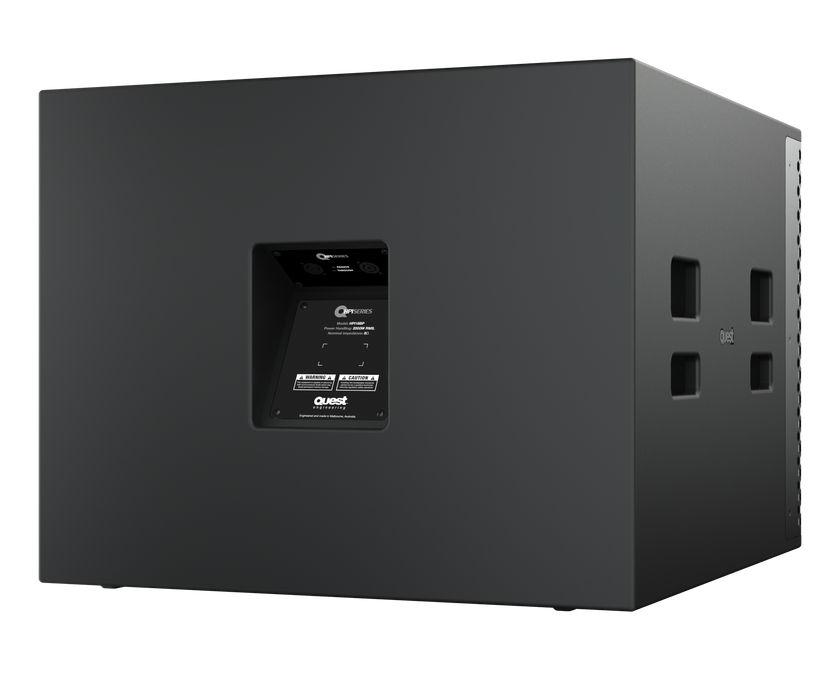

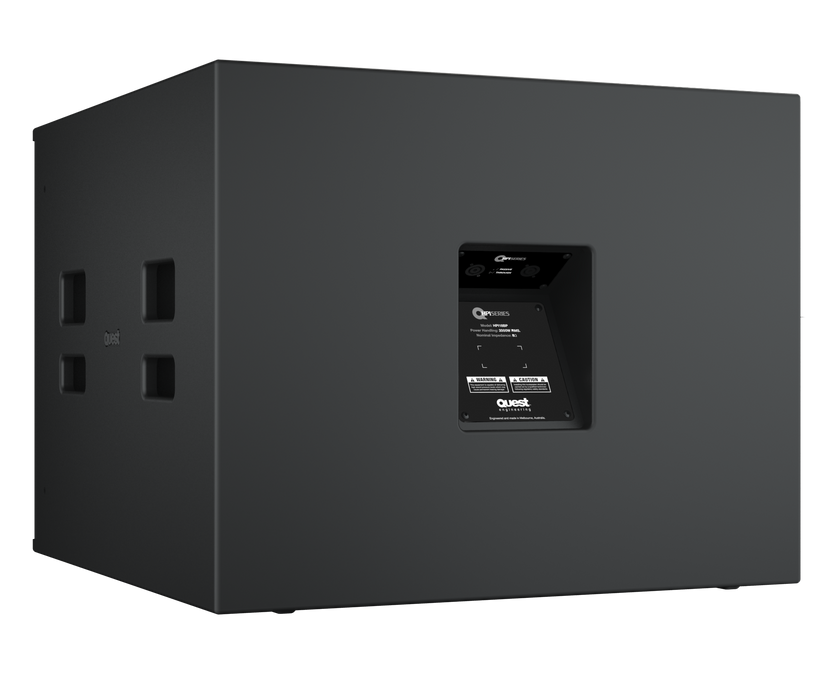

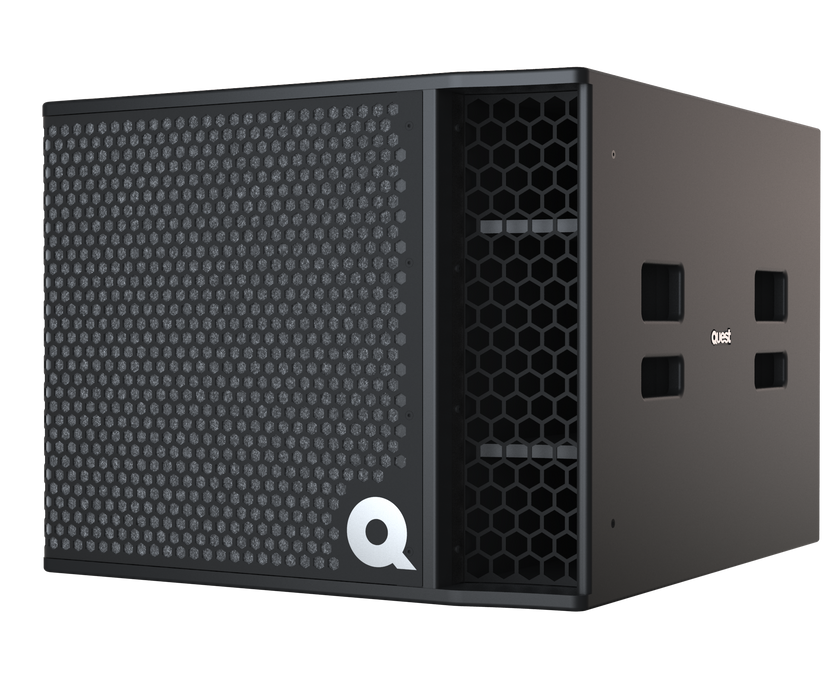

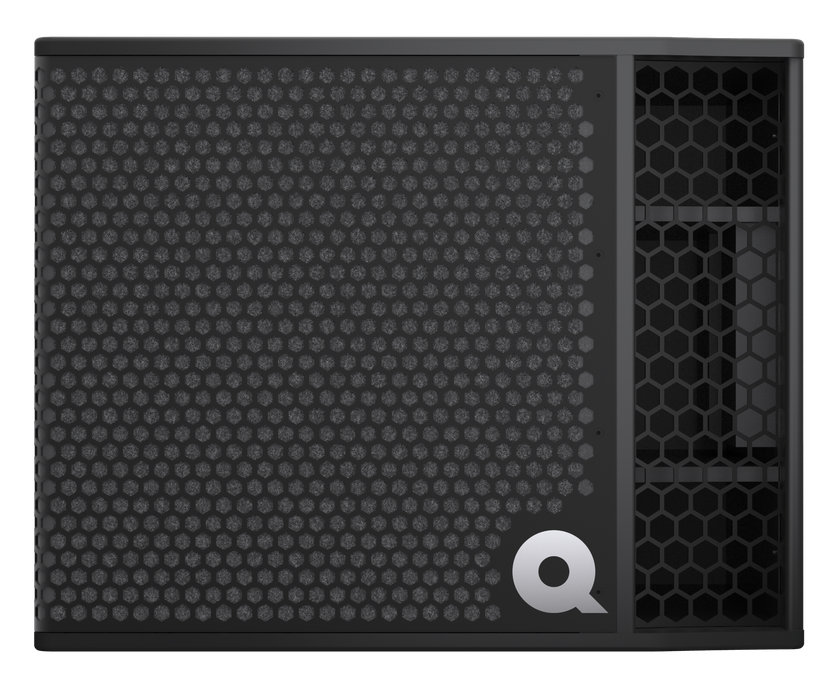

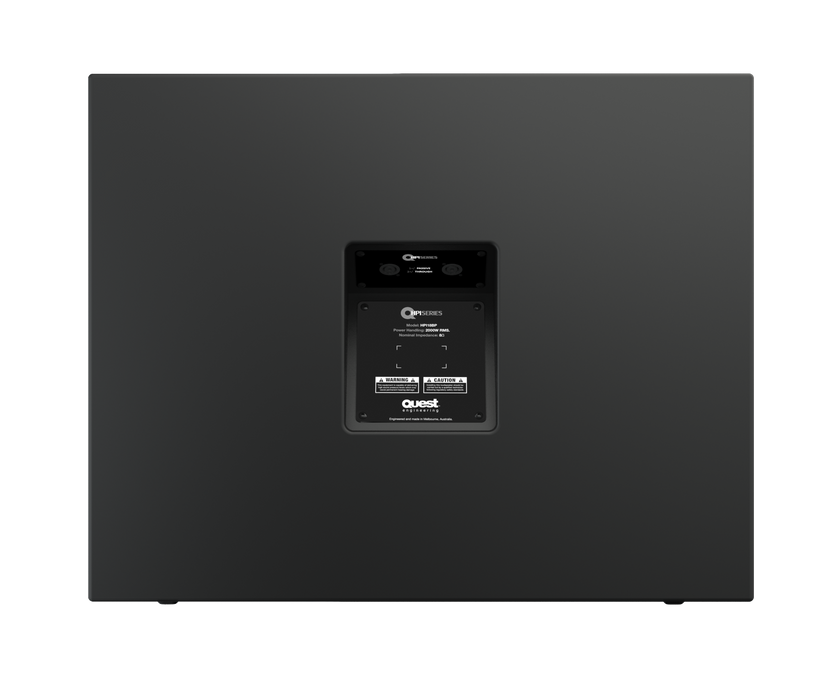

Quest - HPI18BP - 18" Band-pass Subwoofer.
Compact & Ultra High Powered LF System
The HPI18BP Bandpass 18" Subwoofer - how to get the most power and output from the smallest size.
The AES 1,000W - Peak 4,000W single 18" bandpass subwoofer is a high output and relatively compact solution for extended range bass over long durations. The HPI18BP is suited as a stand-alone unit or as part of a high powered large venue system.
The combination of high tech hand built Australian made driver and bandpass design means high efficiency, and very high output. The HPI18BP is ideally suited to electronic dance music in medium to large venues over long duty cycle durations.
A Closer look
With the 1W sensitivity of 103 dB at 40 Hz, the HPI18BP is remarkably efficient for such a high-powered subwoofer.
The Australian designed and built 18" driver is the heart of the system. This unique driver is engineered to maintain stability throughout the entire power band, and delivers a uniform and stable frequency response at all power levels. A unique achievement for a high-powered subwoofer system.
The result is that no corrective system processor is required to maintain consistent audio quality. The stability of the driver under high loads also means reliability and long life in demanding environments.
Big Bass in a Large Permanent Installation
This solidly built bandpass subwoofer is tuned low for electronic music, and for projecting that big live sound "kick" into larger venue spaces. Particularly when set up as a ground stack in a vertical array.
Stacking the HPI18BP package benefits from low bass port coupling to deliver extended low frequency output in large venue spaces with the capacity to carry over a long distance. The compact size and high output makes this powerful low frequency system easier to conceal within modern venues.
|Design Model||Two Chamber Bandpass|
|Frequency response||30 Hz - 150 Hz +/- 4.5dB|
|Sensitivity||103dB @1W, 1m|
|Max. Average Calc. SPL||136 dB|
|Woofer||Single High Stability 18"|
|Optional Fittings||Speaker pole|
|Rec. Amplifier Power||2 - 4000 Watts RMS per channel|
|AES: 1000 Watts*|
|Continuous Program 2000 Watts|
|Peak: 4000 Watts|
|Fittings||1 x Speaker Pole Cup 35-37mm|
|Dimensions (H x W x D)||595mm x 750mm x 825mm|
* AES power is determined according to AES2-1984 standard in free-air 40Hz-400Hz. A 2-hour test using pink noise with the specified dynamics and frequency content that matches the driver's frequency range. Maximum recommended program power is twice AES power providing the safe excursion limits are not exceeded.
