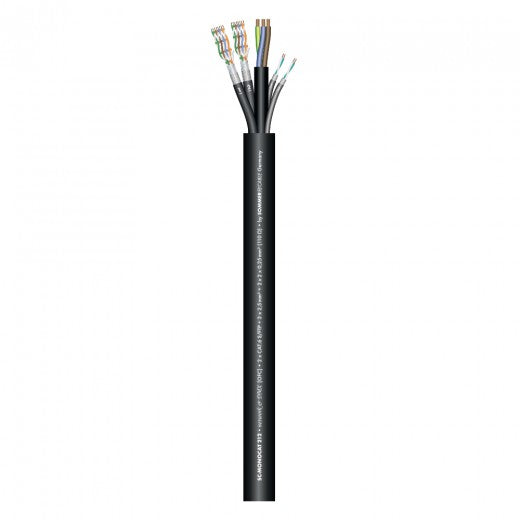

Sommer Cable - Monocat Power 212 - 2 x CAT.7, Power And 2 x DMX/Signal Cable

Sommer Cable - Monocat Power 212 - 2 x CAT.7, Power And 2 x DMX/Signal Cable

by Sommer Cable
$79.99
SKU 500-0191-2

***Price Is Per Meter***

Cable abuse without punishment...

This combi line contains two CAT-cables in combination with two DMX-cables and insulated power cable. It s is equally suitable for permanent installations and mobile applications.

Advantages:

  • LAN signal transmission incl. mains supply in one cable
  • LAN cable also usable as an additional control line

Application:

  • Control of DMX lighting consoles
  • Mobile applications
  • Analogue + digital audio multipair with LAN and power supply
  • Permanent Installation

Specifications:

Article number 500-0191-2
Name SC-Monocat Power 212
EAN 4049371165143
Properties Digital 110 ?? AES / EBU
Properties OFC oxygen free copper
Properties Analog
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application hybrid cable
Colour black
Colour detailed black
Signal transmission symmetrical
Construction [(3LI(9)Y3x2,5mm??)(11)Y+2x(4x(2LI2Yx0,57mm))(ST)CY+2x(2LI2Y0,25mm??)DY]Y
Construction (power) (3LI(9)Y3x2,5mm??)(11)Y
Construction (AES/EBU, DMX) 2x(2LI2Y0,25mm??)DY
Construction (network) 2x(4x(2x0,57mm))(ST)CY
Jacket material PVC
Jacket ?? [mm] 21,80
Number of Channels (power) 1
Number of Channels (AES/EBU, DMX) 2
Number of Channels (network) 2
Inner conductor (power) 3
Inner conductor (AES/EBU, DMX) 2
Inner conductor (network) 8
Inner conductor (power) [mm??] 2,50
Inner conductor (AES/EBU, DMX) [mm??] 0,25
Inner conductor ?? (network) [mm] 0,57
AWG (AES/EBU, DMX) 23
Shielding (AES/EBU, DMX) Copper spiral, tin-plated
Shielding (network) PiMF + tinned copper braid
Shielding factor [%] 100
Conductor insulation material Foam / Skin-PE
Weight per 1 m [g] 470
UV-resistant yes
Fire load per m [kWh] 2,38
Style variant round
Packing bulk stock
CAT-Type CAT.7
Max. section length [m] 110
Temperature min. [??C] -20
Temperature max. [??C] 60
Width [mm] 21,8
Height [mm] 21,8
Capacity wire/wire at 1m (network) [pF] 44
Capacity wire/wire at 1 ft. (network) [pF] 13,4112
Impedance (network) [??] 100
Insulation resist. per 1km (power) [G??] 5
Insulation resist. per 1000 feet (power) [G??] 1,524
Test voltage [V] 2000
Nominal voltage (power) [V] 500
Operating voltage (power) [V] 300
BPVo-Euroclass Fca
