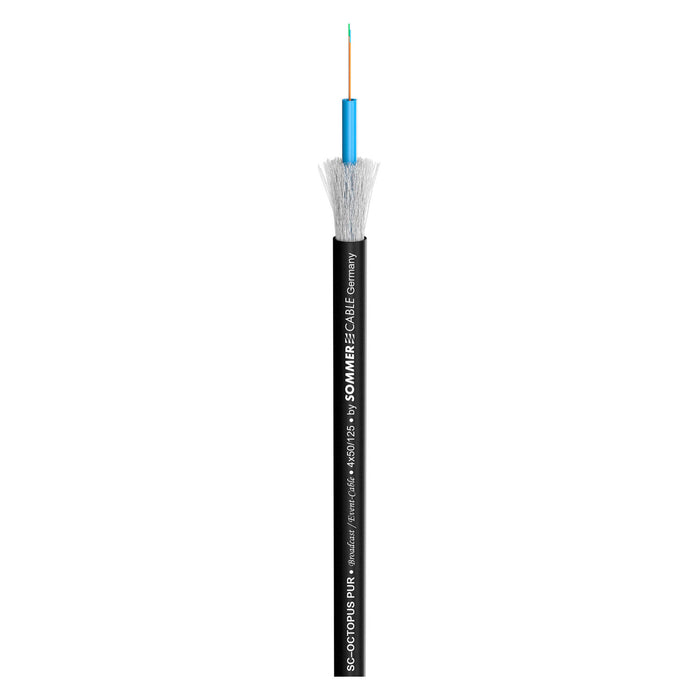

Sommer Cable - Octopus-G - Fiber Optic OM4

WARP 1...

or, more precisely, you can reach the simple speed of light with our SC-Octopus-G FO cable. Thus digital audio and video signals can be transmitted over long distances of up to 2 km / 6,562 ft. (at 100 Mbit/s). We deliver the multimode gradient fibers with a core diameter of 50 ??m (insulation/cladding ?? 125 ??m) in OM4 quality for the OM4 bandwidth ???3,500 MHz (10 G max. 550 m / 1,805 ft.). OM4 fibers meet the requirements of modern FOC interfaces (laser coupling instead of LED) which demand high data rates >6 Gbit/s and closely toleranced limit values for the differential mode delay (max. 100 ps). With OM4 the 10 Gbit standard enables up to 550 m (1,805 ft.) of transmission distance.

For permanent indoor and outdoor installations we recommend the UV-resistant FRNC/LSZH version.

Advantages:

• Digital signal transmission over long distances
• Compact, lightweight, robust and metal free
• Die-electrical glass fibre armouring (rodent protection)
• Longitudinal water-tight in compliance with IED 60794-1-F5
• for 10G application

Application:

• High-quality, fast connection for the transmission of digital signals
• Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities)
• Indoor and outdoor transmissions with long transmission lengths
