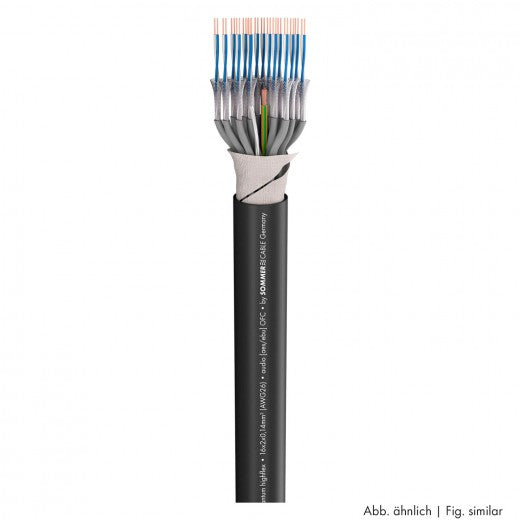

Sommer Cable - Quantum 32 - 32 Channel Multi-Core Signal Cable

$121.99
SKU 100-0451-32
***Price Is Per Meter***

A true allrounder...

because it could not be any longer, faster or more flexible. The??SC-Quantum QMC??is just the cable that all ???bending radius fetishists??? like event technicians, musicians and ambitious live sound people have always been dreaming of! The??SC-Quantum QMC??is absolutely torsionfree, i.e. it can be wound in a figure of ???8??? easily and will not twist when winding or unwinding it.
Not only the S-PVC-jacket, which is cold-resistant down to ???30 ??C and notch-resistant, feels soft ??? due to the
superfine 0,07 mm (!) individual copper litz and the PE-insulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth).
The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage.
Go figure this: the??SC-Quantum QMC??stands out with its low 45 pF wire/wire capacitance and will remain 110 ?? (AES/EBU) conform for several hundred metres!
The wire pair diameter is perfectly suitable for direct
mounting (e.g. of an XLR connector). The interior is
protected against adverse influences by a highly flexible
PVC jacket with a wall thickness of almost 2 mm.
There has never been a cable with such electrical and
mechanical values for such a low price!

Advantages:

  • Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage)
  • Very low wire/wire capacitance
  • Highly flexible and reelable without twisting
  • In compliance with AES/EBU ()
  • Affordable price

Application:

  • Professional stage and live multicore for separate or central earthing
  • Creation of highly flexible studio looms, analogue and digital
  • Permanent Installation

Specifications:

Article number 100-0451-32
Name SC-Quantum QMC32
EAN 4049371001052

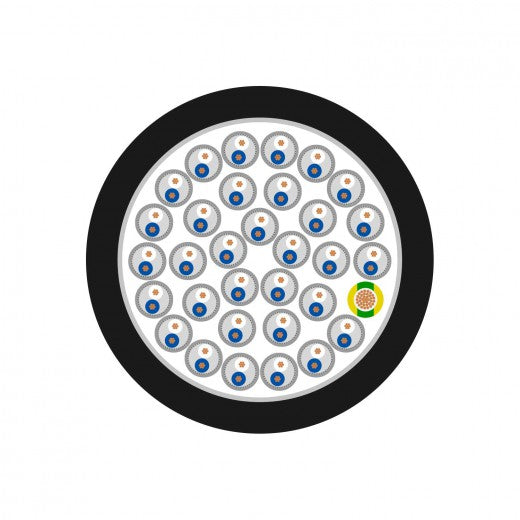

Construction [32(2LI2Y0,14mm??)DY+(0,5mm??)Y]Y
Jacket ?? [mm] 24,00
Number of Channels (audio) 32
Weight per 1 m [g] 630
Fire load per m [kWh] 1,92
Article number 100-0451
Name SC-Quantum QMC
Properties Strong PVC-jacket
Properties Torsion-free
Properties Digital 110 ?? AES / EBU
Properties Analog
Properties OFC oxygen free copper
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application Multipair
Colour black
Colour detailed black, mat
Signal transmission symmetrical
Jacket material S-PVC
Number of Channels (audio) 32
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 0,14
Inner conductor ?? (audio) [mm] 0,42
AWG (audio) 26
Shielding Copper spiral in pairs, tin-plated
Shielding factor [%] 99
Copper strands (audio) 36
Copper strand ?? (audio) [mm] 0,07
UV-resistant yes
Fire load per m [kWh] 0,26
Style variant round
Packing bulk stock
Temperature min. [??C] -25
Temperature max. [??C] 80
Capac. cond./cond. per 1 m (audio) [pF] 45
Capacity wire/wire at 1 ft. (audio) [pF] 13,716
Capac. cond./shield. per 1 m (audio) [pF] 90
Capacity wire/electic screen at 1 ft. (audio) [pF] 27,432
Impedance [??] 110
Insulation resist. per 1 km [G??] 0,02
Insulation resist. per 1000 feet [G??] 0,0061
Insulation resist. per 1 km (audio) [G??] 0,02
Insulation resist. per 1000 feet (audio) [G??] 0,0061
Conductor resistance per 1 km [??] 138
Conductor resistance per 1000 ft. [??] 42,0624
BPVo-Euroclass Fca
