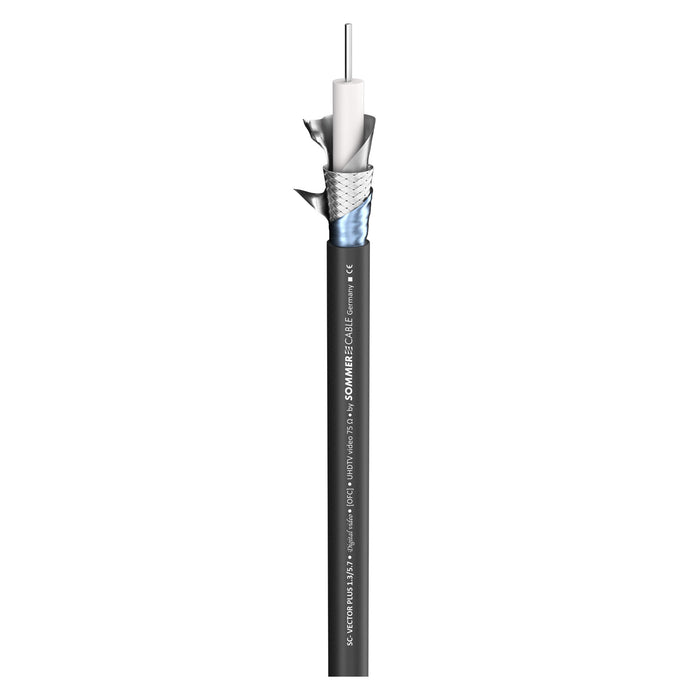

Sommer Cable - Vector Plus - 12g/4k

$20.99
SKU 600-0131

***Price Is Per Meter***

Suitable Connector - Neutrik - NBNC75BZV14X

The eye of an eagle

has a resolution about 3 to 4 times higher than that of the human eye. Thus the 12G UHD-SDI transmission standard enables such high visual resolutions that the human eye cannot distinguish them any more from the original scene. Owing to its compact diameter of 8 mm (0.31 in.) and the optimized shielding construction, the VECTOR 1.3/5.7 has extremely low attenuation values which so far have only been known from much thicker cables. For the conductor we use a silver-plated solid wire with ultra low tolerances, embedded in a gas-injected (skin/gas/skin) insulation which is smoothed both inside and out. The triple shielding, which consists of two robust, elastic AL/PTE foils and a tight, tin-plated copper braid with 95 % coverage, prevents from interference and impact on the electrical values. These high-class parameters ensure a perfect and error-free transmission of the SDI (520 m / 1,706 ft.), 6G-SDI- (up to about 140 m / 460 ft.) and 12G-UHD-SDI- (up to 100 m / 328 ft.) standards. The robust outer jacket consists of a cold flexible, durable and UV resistant S-PVC.

Advantages:

  • Triple shielding with 100% coverage
  • Extremely durable and temperatur resistant components (silver-plated wires, smoothed insulation, UV resistant jacket)
  • Super low attenuation and so thin

Application:

  • Digital HD/UHD-SDI 4K long-distance transmission
  • Connections for radio, broadcasting and surveillance technology, cables for stadium building and generally for sports events
  • Ideal broadband, antenna and video cable

Specifications:

Article number 600-0131
Name SC-Vector PLUS 1.3/5.7 4K
EAN 4049371409742
Properties Analog
Properties OFC oxygen free copper
Properties 3G-SDI
Properties Digital 75 Ω
Properties 6G-SDI
Properties SDI
Application area ELA 100 V
Application area Mobile outdoor / indoor
Application area Studio / Broadcast
Application area Installation
Application video cable
Colour black
Colour detailed black
Jacket material PVC
Jacket Ø [mm] 8,10
Number of Channels (video) 1
Inner conductor (video) 1
Inner conductor Ø (video) [mm] 1,30
AWG (video) 16
Shielding AL foil + Cu mesh, tinned + 2nd AL foil
Shielding factor [%] 100
Conductor insulation material Foam / Skin-PE
Conductor insulation Ø [mm] 5,70
Weight per 1 m [g] 90
Style variant round
Packing bulk stock
Velocity factor 0,84
Temperature min. [°C] -10
Temperature max. [°C] 80
Max. Transmission length (SMPTE 425M, 3G) [m] 199
Max. Transmission length (SMPTE 2081, 6G) [m] 136
Width [mm] 8,1
Height [mm] 8,1
Capacity wire/electic screen at 1m (video) [pF] 53
Capacity wire/electic screen at 1 ft. (video) [pF] 16,1544
Damping at 5 MHz (100m & 20° C) [dB] 1,2
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] 0,3658
Damping at 50 MHz (100m & 20° C) [dB] 3,5
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,0668
Damping at 100 MHz (100m & 20° C) [dB] 4,8
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,463
Damping at 1000 MHz (100m & 20° C) [dB] 16,1
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,9073
Damping at 1485 MHz (100m & 20° C) [dB] 20,1
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,1265
Damping at 2150 MHz (100m & 20° C) [dB] 25,3
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 7,7114
Damping at 3000 MHz (100m & 20° C) [dB] 29,8
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,083
Damping at 6000 MHz (100m & 20° C) [dB] 42,7
Damping at 12000 MHz (100m & 20° C) [dB] 64,5
Impedance [Ω] 75
Conductor resistance per 1 km [Ω] 13
Conductor resistance per 1000 ft. [Ω] 3,9624
Shield. resistance per 1 km [Ω] 6,2
Shield. resistance per 1000 ft. [Ω] 1,8898
BPVo-Euroclass Eca
Max. Transmission length (SMPTE 2082, 12G) [m] 94
Max. Transmission length (SMPTE 2082, 12G) [ft] 308,399
