Sommer Cable - Monolith 1 - Power And DMX/Signal Cable

$26.99
SKU 500-0051-1
***Price Is Per Meter***

When the lights begin to dance...

the people stare in wonder! But there is quite a bit of technology behind it. And cables do not play the least important part here. The power for the spotlights and the control signals for their movements must be transmitted via cables. Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices.

The??SC-Monolith 1 POWER/DMX??consists of a 3 x 1,50 mm?? power cable and one DMX 512 line. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety.

Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems.

Advantages:

  • Parallel control for lighting boards through one cable via power line and DMX signal
  • Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
  • Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding

Miscellaneous:

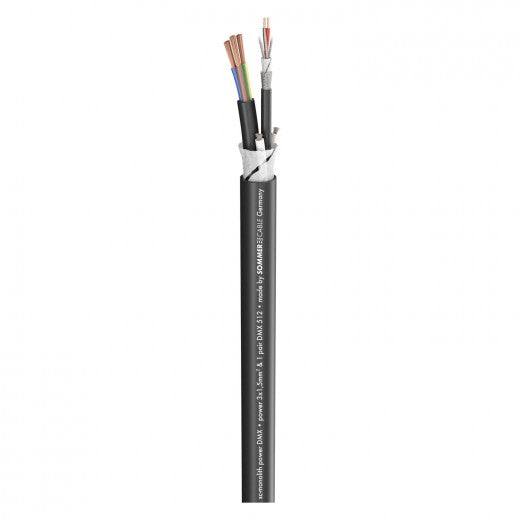

  • Note: two white filling elements are integrated in the cable (see cable illustration)

Application:

  • Control line for DMX lighting consoles (wave impedance of 0 ??)
  • Analogue + digital audio multipair with power supply

Specifications:

Article number 500-0051-1
Name SC-Monolith 1
EAN 4049371002554
Properties Analog
Properties Digital 110 ?? AES / EBU
Properties OFC oxygen free copper
Application area Mobile outdoor / indoor
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application DMX & Power
Colour black
Colour detailed black
Signal transmission symmetrical
Construction [(3LIY1,5mm??)Y+ 01(2LI2Y0,25mm??)DY]VLY
Construction (power) (3LIY1,5mm??)Y
Construction (AES/EBU, DMX) 01(2LI2Y0,25mm??)DY
Jacket material PVC
Jacket ?? [mm] 12,40
Jacket ?? (power) [mm] 7,00
Jacket ?? (AES/EBU, DMX) [mm] 4,30
Number of Channels (power) 1
Number of Channels (AES/EBU, DMX) 1
Inner conductor (power) 3
Inner conductor (AES/EBU, DMX) 2
Inner conductor (power) [mm??] 1,50
Inner conductor (AES/EBU, DMX) [mm??] 0,25
Inner conductor ?? (power) [mm] 1,38
Inner conductor ?? (AES/EBU, DMX) [mm] 0,56
AWG (power) 15
AWG (AES/EBU, DMX) 23
Shielding (AES/EBU, DMX) Braided mesh, tin-plated
Shielding factor [%] 90
Copper strands (power) 28
Copper strands (AES/EBU, DMX) 7
Copper strand ?? (power) [mm] 0,25
Copper strand ?? (AES/EBU, DMX) [mm] 0,20
Wire insulation material (power) PVC
Conductor insulation ?? [mm] 0,00
Conductor insulation ?? (power) [mm] 2,30
Weight per 1 m [g] 200
UV-resistant yes
Fire load per m [kWh] 0,64
Style variant round
Packing bulk stock
Temperature min. [??C] -30
Temperature max. [??C] 70
Width [mm] 12,4
Height [mm] 12,4
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 52
Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 15,8496
Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 89
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 27,1272
Impedance [??] 0
Surge impedance (AES/EBU, DMX) [??] 110
Insulation resist. per 1 km [G??] 0
Insulation resist. per 1000 feet [G??] 0
Insulation resist. per 1 km (AES/EBU, DMX) [G??] 0,1
Insulation resist. per 1000 feet (AES/EBU, DMX) [G??] 0,0305
Conductor resistance per 1 km (power) [??] 80
Conductor resistance per 1000 ft. (power) [??] 24,384
BPVo-Euroclass Fca
