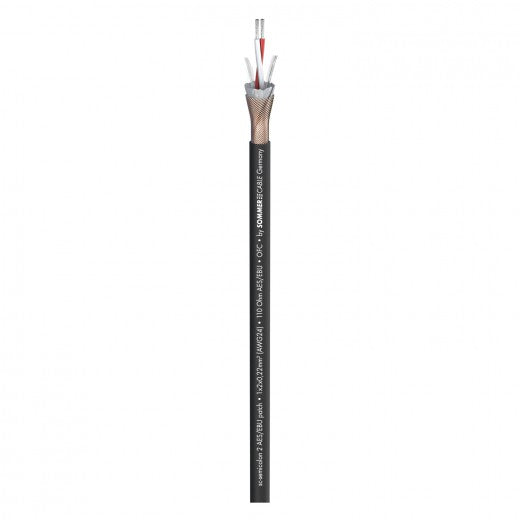

Sommer Cable - Semicolon 2

$3.99

The moon has risen...

and if only the little golden stars are twinkling in the sky? Light failure! Power failure! The total failure is every technician's nightmare. The cause for this are external interference fields, which in turn are caused by badly shielded cables. So this is no place to make savings on material and shielding. Hence this cable with its soft jacket and the 100 % shielding. And all this with only 5,00 mm of outer diameter. This cable is the perfect AES/EBU line for studio engineering. It's ideal for patching or for internal wirings. Where no extreme environmental influences occur, it can also be used for permanent long-distance laying. The surge impedance of 110 Ω guarantees a loss-free transmission of digital signals. Likewise the SC-Semicolon 2 AES/EBU is fully shielded by the use of a tight Cu spiral screen and the underlying AL/PT foil or AL fleece.

Advantages:

  • Perfect shielding by a dense helical copper mesh screen + AL/PT foil or AL fleece
  • Compact and hence space-saving

Application:

  • Professional studio and microphone technology
  • Connection of effects and control units which require a return signal
  • Industrial technology and medical engineering
  • Professional MIDI-technology, transfer cable
  • High-end connection of hifi components
  • Control of lighting and scanner systems and displays

Specifications:

Article number 520-0101
Name SC-Semicolon 2 AES/EBU
EAN 4049371226783
Properties Analog
Properties Digital 110 Ω AES / EBU
Properties OFC oxygen free copper
Application area Installation
Application area Studio / Broadcast
Application DMX
Colour black
Colour detailed black
Signal transmission symmetrical
Construction (2LI2Y0,22mm²)(ST)DY
Jacket material PVC
Jacket Ø [mm] 5,00
Number of Channels (AES/EBU, DMX) 1
Inner conductor (AES/EBU, DMX) 2
Inner conductor (AES/EBU, DMX) [mm²] 0,22
Inner conductor Ø (AES/EBU, DMX) [mm] 0,53
AWG (AES/EBU, DMX) 24
Shielding Copper spiral sleeve + AL-fleece
Shielding factor [%] 100
Copper strands (AES/EBU, DMX) 28
Copper strand Ø (AES/EBU, DMX) [mm] 0,10
Conductor insulation material Foam / Skin-PE
Weight per 1 m [g] 33
Fire load per m [kWh] 0,13
Style variant round
Packing 100 m spool
Packing 500 m spool
Temperature min. [°C] -25
Temperature max. [°C] 70
Width [mm] 5
Height [mm] 5
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 45
Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 13,716
Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 95
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 28,956
Impedance [Ω] 110
Insulation resist. per 1 km [GΩ] 1
Insulation resist. per 1000 feet [GΩ] 0,3048
Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 1
Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,3048
Conductor resistance per 1 km [Ω] 80
Conductor resistance per 1000 ft. [Ω] 24,384
BPVo-Euroclass Fca
