Sommer Cable - Tricone XXL - Blue

Currently Out Of Stock
$6.99
SKU 300-0272
***Price Is Per Meter***

Three corners has my hat...

and also the??Tricone?? XXL??jack connector which you can configure yourself on the??Tricone?? XXL??cable without using a soldering gun. With the??Tricone?? XXL??set you cannot only make your own guitar cables, instrument cables and patch cables very easily, but also repair them on site, if necessary ??? in record time. For detailed

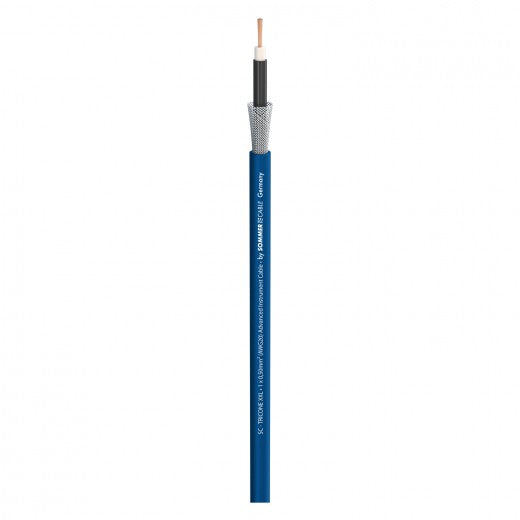

information see chapter ???Premade Cables??? or "Connectors???. The??Tricone?? XXL??has a fat PE foam insulation which is firmly enclosed and held in place by a carbon screen. This will optimise the capacitance and ensure a loss-free treble reproduction even over longer distances. This design and the Cu mesh screen will perfectly protect against external interference. The special LONGLIFE COMPOUND jacket ensures a high tread resistance and tensile strength

Advantages:

  • Powerful, clear sound with the transmission of any instrument signals
  • Dual shielding by Cu mesh screen and conductive carbon screen
  • Highly flexible and easy to reel because of its fine single litz design
  • Extremely durable and rugged due to LONGLIFE COMPOUND jacket

Application:

  • High-quality guitar lead for stage & studio
  • Unbalanced cable for all string instruments, keyboards, samplers, mixing desks
    etc.

Specifications:

Article number 300-0273
Name Tricone?? XXL
EAN 4049371050487
Properties OFC oxygen free copper
Properties Analog
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application Instrument Cable
Colour red
Colour detailed red
Signal transmission asymmetrical
Construction LI2Y(LS)CY1x0,50mm2
Jacket material LLC (Long Life Compound)
Jacket ?? [mm] 5,90
Number of Channels (audio) 1
Inner conductor (audio) 1
Inner conductor (audio) [mm??] 0,50
Inner conductor ?? (audio) [mm] 0,80
AWG (audio) 20
Shielding Copper spiral tin-plated + semiconductor
Shielding factor [%] 100
Copper strands (audio) 28
Copper strand ?? (audio) [mm] 0,15
Conductor insulation material Foam / Skin-PE
Conductor insulation ?? [mm] 2,80
Weight per 1 m [g] 44
Fire load per m [kWh] 0,27
Style variant round
Packing 500 m spool
Packing 100 m spool
Temperature min. [??C] -25
Temperature max. [??C] 60
Width [mm] 5,9
Height [mm] 5,9
Capac. cond./shield. per 1 m (audio) [pF] 85
Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908
Insulation resist. per 1 km [G??] 1
Insulation resist. per 1000 feet [G??] 0,3048
Insulation resist. per 1 km (audio) [G??] 1
Insulation resist. per 1000 feet (audio) [G??] 0,3048
Conductor resistance per 1 km [??] 90
Conductor resistance per 1000 ft. [??] 27,432
BPVo-Euroclass Fca
